Quick Details
-
Brand Name:
-
OPEN
-
Model Number:
-
3/4 poles switch
-
Max. Current:
-
32A
-
Material:
-
Polycarbonate
-
Name:
-
disconnect switch
-
Color:
-
Yellow
-
Rated current:
-
32A
-
Brand:
-
OPEN
-
Certification:
-
ce
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
DC 1000V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OPEN
-
Model Number:
-
3/4 poles switch
-
Max. Current:
-
32A
-
Material:
-
Polycarbonate
-
Name:
-
disconnect switch
-
Color:
-
Yellow
-
Rated current:
-
32A
-
Brand:
-
OPEN
-
Certification:
-
ce

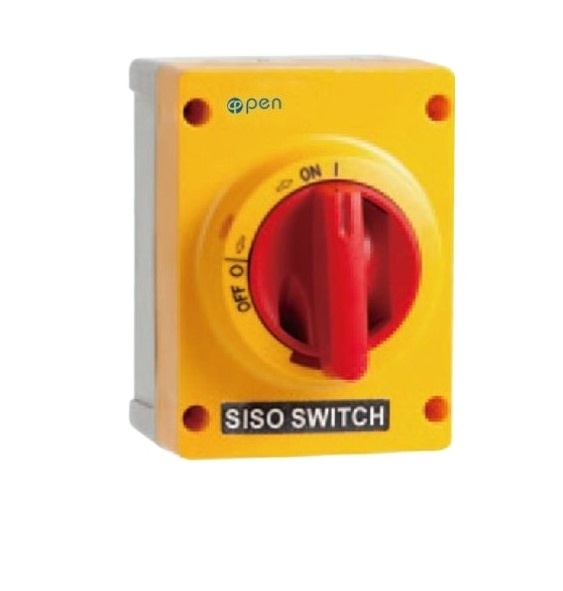

isolation switch
Sun tree offers a comprehensive range of isolating designed with safe in mind in stand-alone and enclosed formats, this switch range are pad lockable and available in yellow/red or grey/black making it ideal for any electrical isolation requirement, such as repair maintenance installation and inspection.
isolation switch Catalogue number construction
|
SISO |
3 |
25 |
P |
Y |
|
"Safety |
"NO.of poles |
"Operational |
"Switch type |
"Color |
|
isolating |
3=3 pole |
current rating |
P-Polycarbonate |
Y-Yellow/Red |
|
switch |
4=4 pole" |
25A 32A |
R-Rotary with handle |
G-Grey/Black |
isolation switch
Safety isolating switches
Polycarbonate enclosed rotary switches
Compact and suitable were space is limited
DIN rail mounting for easy installation
Load-breaking up to 8 times rated current making it ideal for motor isolation
Double-break with silver rivets-superior performance, reliability and long lasing
Highly visible red/yellow handle
Large pad lockable red/yellow or grey/black handles
Comprehensive range, 16 to 32A models
High IP 65 rating
High breaking capacity with 12.5mm contact air gap
Easy to install and operate
Easy Snap-On fitting of auxiliary switches
isolation switch switch Specifications
3/4Pole SISO Switch
|
Main contacts |
Type |
SISO-63 |
|||
|
Rated thermal current l the |
A |
16 |
25 |
32 |
|
|
Rated insulation voltage Ui |
V |
1000 |
1000 |
1000 |
|
|
Rated operational current leDC21B |
|||||
|
2 pole in series |
600V |
A |
16 |
25 |
32 |
|
2 pole in series + 2 poles parallel |
600V |
A |
29 |
45 |
50 |
|
900V |
A |
13 |
16 |
20 |
|
|
1200V |
A |
9 |
11 |
13 |
|
|
3 poles in series |
900V |
A |
16 |
25 |
32 |
|
1000V |
A |
16 |
25 |
32 |
|
|
4 poles in series |
600V |
A |
16 |
25 |
32 |
|
1000V |
A |
16 |
25 |
32 |
|
|
1200V |
A |
16 |
25 |
32 |
|
|
Rated operational current le DC22B |
|||||
|
2 poles in series |
600V |
A |
5.5 |
6 |
6.5 |
|
900V |
A |
2 |
2.5 |
3 |
|
|
1200V |
A |
1 |
1.5 |
2 |
|
|
3/4Pole SISO Switch |
|||||
|
3 poles in series |
600V |
A |
16 |
23 |
25 |
|
900V |
A |
6,5 |
7 |
7,5 |
|
|
1200V |
A |
6,5 |
6 |
6,5 |
|
|
4 poles in series |
600V |
A |
16 |
25 |
27,5 |
|
900V |
A |
11,5 |
12 |
12,5 |
|
|
1200V |
A |
8 |
9 |
10 |
|
|
Rated conditional short-circuit current |
|
A |
5 |
5 |
5 |
|
Mechanical life |
|
*10 |
10 |
10 |
10 |
|
Rated short-time withstands current(Is) |
2,4/2+2H |
A |
800/1300 |
900/1500 |
1000/1700 |
|
Short circuit making capacity |
lcm |
|
800/1300 |
900/1500 |
1000/1700 |
Dimensions
