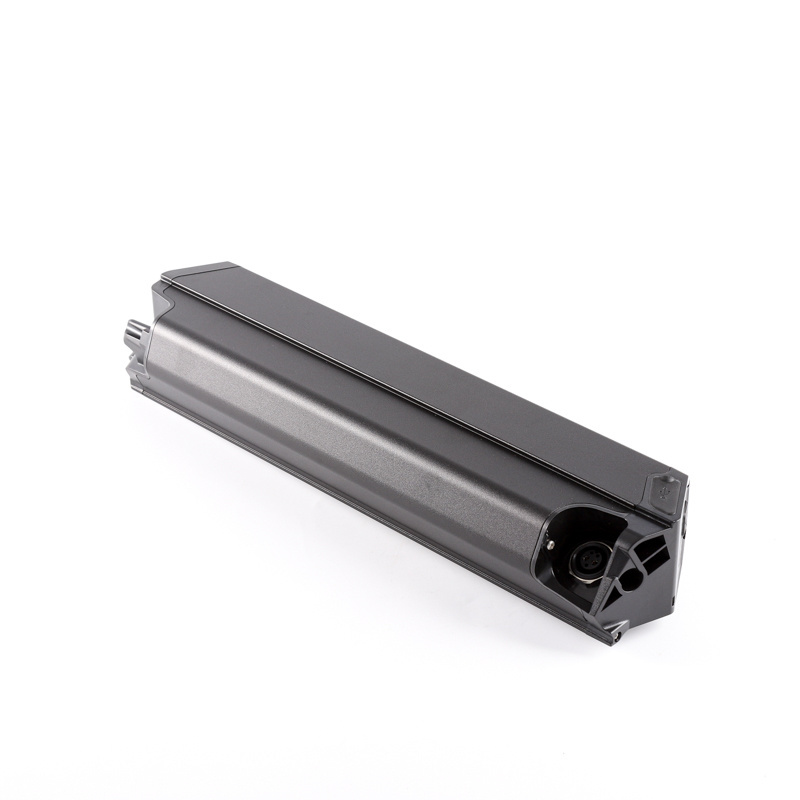

There are two version of Dorado battery slot, 505mm and 440mm.
1.For 505mm type,the length of Dorado battery included the bracket is about 505mm.
the length of battery is about 458mm.
2.For 440mm type,the length of Dorado battery included the bracket is about 440mm.
the length of battery is about 393mm.
3.If you need the Dorado battery slot,please tell us the type of it, we can also buy it for you.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
NEWAYS
-
Voltage:
-
48V
-
Rated Capacity:
-
10,11,13,14.5,16,17.5
-
Battery type:
-
Dorado Downtube Electric Bicycle Battery
-
Fit for Motor:
-
all motor
-
Material:
-
Aluminum Plastic
-
Certifications:
-
CE/EN15194/RoHS
Quick Details
-
Type:
-
Lithium Battery(Dorado)
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
NB03
-
Brand Name:
-
NEWAYS
-
Voltage:
-
48V
-
Rated Capacity:
-
10,11,13,14.5,16,17.5
-
Battery type:
-
Dorado Downtube Electric Bicycle Battery
-
Fit for Motor:
-
all motor
-
Material:
-
Aluminum Plastic
-
Certifications:
-
CE/EN15194/RoHS
Product Description
Advantages
Specification
|
Model NO
|
NB03(Dorado )
|
|
Type
|
Lithium-ion 18650 13S6P/10S8P
|
|
Configuration
|
13S6P
|
|
Cells Brand
|
Chinese cells,Samsung,LG,PanasonicBattery cell brand
|
|
Battery type
|
505mm/440mm
|
|
Nominal Voltage
|
36V/48V
|
|
Nominal Capacity
|
12AH,15.6AH,17.4AH,21AH
|
|
Over discharge protection
|
36.4±0.5V
|
|
Over charge protection
|
54.±0.01V
|
|
Charging current
|
≤5 A
|
|
Continuous discharge current
|
≤15A
|
|
Transient excess current
|
60±10A
|
|
USB
|
5±0.2V
|
|
Material
|
Plastic+Aluminum
|
|
Cycle life
|
After 500 cycles, residual capacity is over 80% of its original
|
|
Battery warranty
|
12months
|
