- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
20-60bags
-
Weight (KG):
-
450
-
Voltage:
-
220V,
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB-180C
-
Dimension(L*W*H):
-
1200*900*1900mm
-
Product name:
-
Automatic Tea Bag Packing Machine
-
Model:
-
YB-180C
-
Language:
-
English/Franch/etc
-
Packing weight:
-
1-15g
-
Inner bag size:
-
L:50-70mm W:40-80mm
-
Outer bag size:
-
L:70-120mm W:60-90mm
-
Net Weight:
-
450kg
-
Film width:
-
Max.280mm
-
Controller:
-
PLC and touch screen
-
Machine material:
-
Food Grade SS304
Quick Details
-
Function:
-
FILLING, Sealing, counting
-
Packaging Type:
-
Cartons, Bags, Film
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
20-60bags
-
Weight (KG):
-
450
-
Voltage:
-
220V,
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YB-180C
-
Dimension(L*W*H):
-
1200*900*1900mm
-
Product name:
-
Automatic Tea Bag Packing Machine
-
Model:
-
YB-180C
-
Language:
-
English/Franch/etc
-
Packing weight:
-
1-15g
-
Inner bag size:
-
L:50-70mm W:40-80mm
-
Outer bag size:
-
L:70-120mm W:60-90mm
-
Net Weight:
-
450kg
-
Film width:
-
Max.280mm
-
Controller:
-
PLC and touch screen
-
Machine material:
-
Food Grade SS304

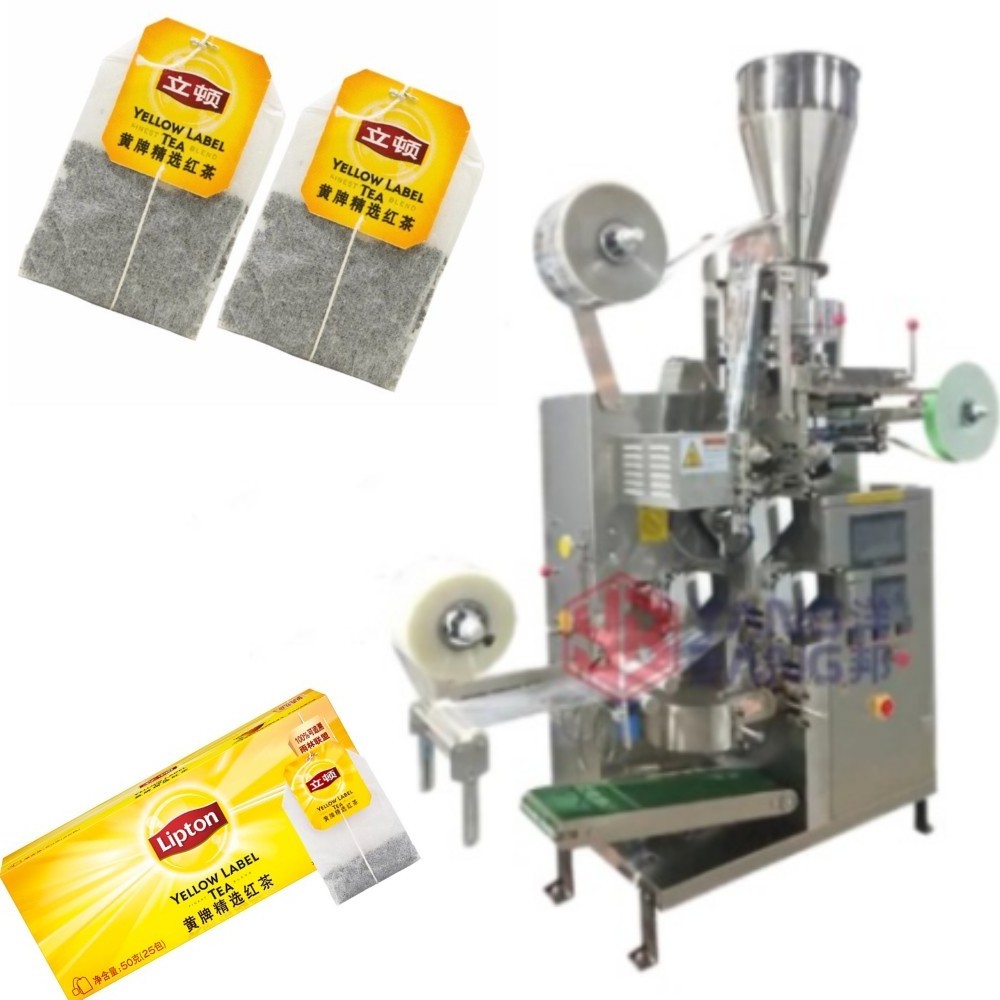

YB 180C Automatic Coffee Teabag Tea Sachet Packing Machine Tea Bag Making Machine Tea Bag Packaging Machine
Sample
Product Paramenters
|
Product name
|
Automatic Tea Bag Packing Machine
|
|
Model
|
YB-180C
|
|
Power
|
3.7KW
|
|
Packing speed
|
20-60 bags/min
|
|
Inner bag size
|
Width：40-80mm Length：50-70mm
|
|
Outer bag size
|
Width：60-90 mm Length：70-120mm
|
|
Net Weight
|
450kg
|
|
Film width
|
Max.280mm
|
|
Machine Dimension
|
L1200*W900*H1900mm
|
|
Machine material
|
Food Grade SS304
|
Product details
YB-180C
Three Sides Sealing Tea Packaging Machine Full Automatic Filter Paper Inner And Outer Bag Packaging Equipment
Usage:
This machine is mainly used for packaging for various tea, coffee, herbal tea, etc.
Features and function:
1. PLC control, touch screen display,cup volumetric filler measurement
This machine is mainly used for packaging for various tea, coffee, herbal tea, etc.
Features and function:
1. PLC control, touch screen display,cup volumetric filler measurement
(optional:electronic scales ,measurement),this machine is the latest type of multi-functional tea bag packaging machine.
2. One-time complete inner and outer bag packing,to avoid contacting with the product by hand directly.
2. One-time complete inner and outer bag packing,to avoid contacting with the product by hand directly.
3. Inner bag is food grade filter paper,
which is automatically bonded with the cotton thread and the label,and the outer bag is made of a heat-sealable composite film.
4. Machine body and product contact parts are made of 304 stainless steel.
Three Sides Sealing Tea Packaging Machine Full Automatic Filter Paper Inner And Outer Bag Packaging Equipment
