Features & Technical
Locker lock(Closet Lock) with RFID Locking system
(NOTE: if you need software and encoder to program keys, please advise us, we can design)
No software needed, set RFID key on the lock directly
Powered by 4pcs AA alkaline batteries, last 5-10months
Equipped with 6V external power interface
Single card or dual cards unlocking
Non-auto locked function optional
- Product Details
- {{item.text}}
Quick Details
-
color:
-
silver, golden,red copper
-
Unlock way:
-
Passwords, cards
-
Password combination:
-
6-10 numbers
-
Card type:
-
rfid card
-
Working temperature:
-
-30℃-80℃
-
Cylinder Dimension:
-
L145.0 / W63.5 / D22.0
-
Lock weight:
-
235g - 400g
-
Working humidity:
-
20% -95%
-
Power:
-
4 pcs 1.5V LR6 AA Alkaline Batteries
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
joneytech
-
Material:
-
Zinc Alloy Metal Casing
-
color:
-
silver, golden,red copper
-
Unlock way:
-
Passwords, cards
-
Password combination:
-
6-10 numbers
-
Card type:
-
rfid card
-
Working temperature:
-
-30℃-80℃
-
Cylinder Dimension:
-
L145.0 / W63.5 / D22.0
-
Lock weight:
-
235g - 400g
-
Working humidity:
-
20% -95%
-
Power:
-
4 pcs 1.5V LR6 AA Alkaline Batteries

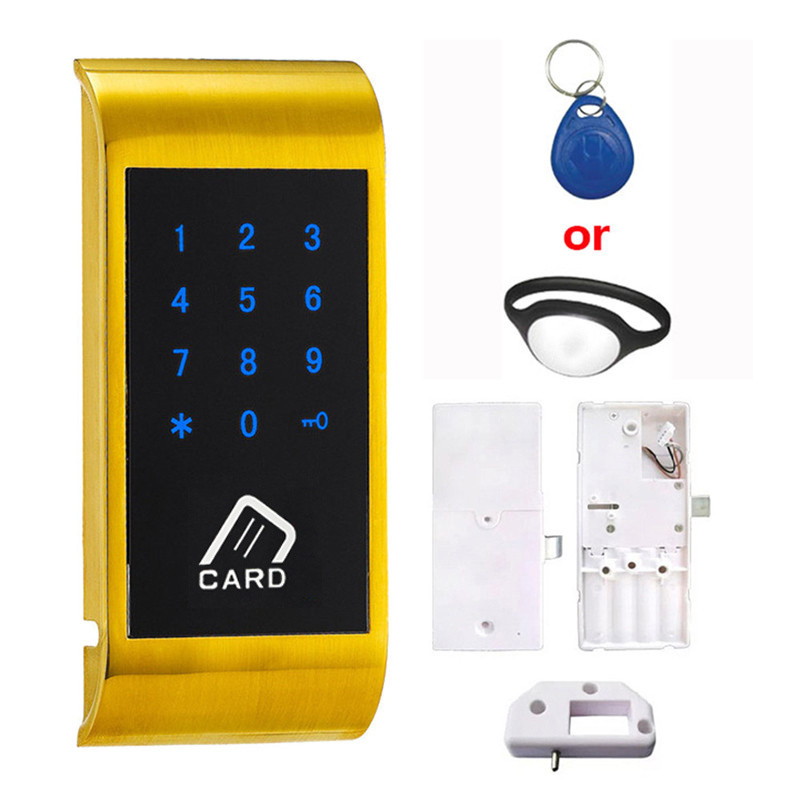

Locker lock Password rfid card electronic digital cabinet lock for gym
Specification
|
Applicable door thickness
|
15~25mm
|
|
Battery life
|
5-10 months, more than 15, 000 times normal continuous opening
|
|
Card frenquency
|
125KHz by default, 13.56MHz optional
|
|
Low voltage alarm
|
<4.8V, still can open about100 times
|
|
Application
|
school, SPA center, swimming pool, gym, golf course, supermarket
|
|
Static working current
|
≤8μA
|
|
Dynamic working current
|
≤150mA
|
|
Reading distance
|
≤25mm
|
|
Reading Time
|
less than 1s
|
|
Low power alarm
|
less than 4.8V
|
|
Power
|
4 pcs 1.5V LR6 AA Alkaline Batteries, DC6V (with external power supply)
|
|
Batteries life
|
12 months, normally continuous opening
|
|
Color
|
silver, golden,red copper
|
|
Unlock method
|
Passwords, cards
|
|
Password combination
|
6-10 numbers
|
|
Material
|
zinc alloy
|
|
Card type
|
RFID card
|
|
Working temperature
|
-30℃-80℃
|
|
Cylinder Dimension
|
L145.0 / W63.5 / D22.0
|
|
Lock weight
|
235g - 400g
|
|
Working humidity
|
20% -95%
|
Product Description
