Quick Details
-
Brand Name:
-
Quate
-
Voltage:
-
220V/380V
-
Power:
-
0.55KW
-
Dimension(L*W*H):
-
860*600*1400mm
-
Weight:
-
100 KG
-
Name:
-
Burger Patty Prodution Line
-
Material:
-
SUS304
-
Capacity:
-
2100pcs/hour(adjustable)
-
Hopper volume:
-
30L
-
Max process diameter:
-
105mm
-
Patty thickness:
-
6~16mm(adjustable)
-
Mesh belt width:
-
200mm
-
Belt speed:
-
2-10m/min
-
Keywords 1:
-
Burger Patty Making Machine
-
Keywords 2:
-
Chicken Nugget Forming Machine
Quick Details
-
Application:
-
meat pie, burger patty, chicken nugget
-
Production Capacity:
-
no
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Quate
-
Voltage:
-
220V/380V
-
Power:
-
0.55KW
-
Dimension(L*W*H):
-
860*600*1400mm
-
Weight:
-
100 KG
-
Name:
-
Burger Patty Prodution Line
-
Material:
-
SUS304
-
Capacity:
-
2100pcs/hour(adjustable)
-
Hopper volume:
-
30L
-
Max process diameter:
-
105mm
-
Patty thickness:
-
6~16mm(adjustable)
-
Mesh belt width:
-
200mm
-
Belt speed:
-
2-10m/min
-
Keywords 1:
-
Burger Patty Making Machine
-
Keywords 2:
-
Chicken Nugget Forming Machine
Product Description

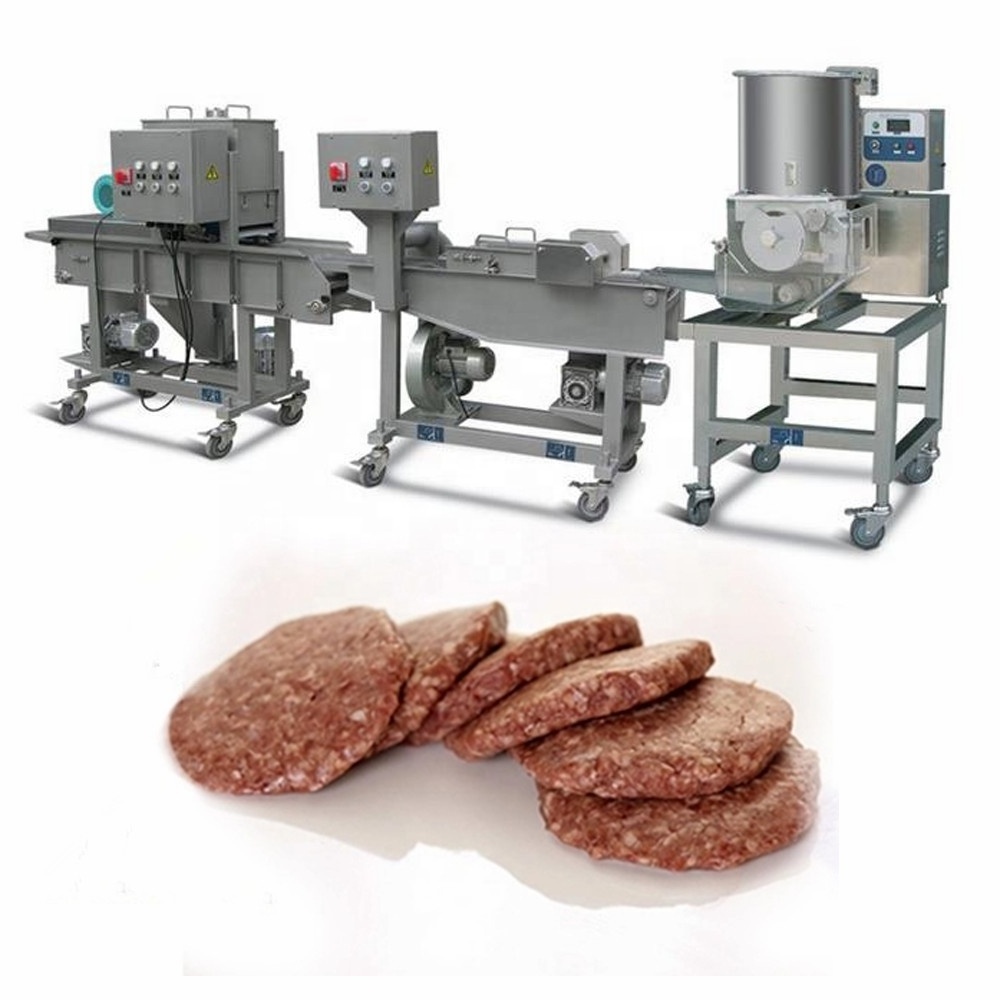

Chicken nugget forming machine/burger patty making machine/burger patty production line
Specification
1.The automatic patty forming machine
can automatically complete filling, forming, stickers (optional), output and other processes. By changing different molds, products of different shapes (round, square, oval, triangle, heart and other shapes) can be produced.
|
Model No.
|
QT-1
|
|
Material
|
SUS304
|
|
Hopper volume
|
30L
|
|
Power
|
0.55kw
|
|
Voltage
|
380v/50hz/1phase(could be customized)
|
|
Dimension
|
860*600*1400mm
|
|
Weight
|
100kgs
|
|
Capacity
|
35pcs/min
|
2.The sizing machine
is used in conjunction with the automatic meatloaf forming machine, or it can be used alone. It can sizing the popular hamburger patties, chicken nuggets, fish-flavored hamburger patties, potato cakes, pumpkin pie, meat skewers and other products on the market. It is an ideal sizing equipment for fast food restaurants, distribution centers, and food factories
.
|
Model No.
|
QT-2
|
|
Power
|
0.62kw
|
|
Voltage
|
380v/50hz(can be customize)
|
|
Weight
|
110kgs
|
|
Dimension
|
1390*550*1320mm
|
|
Belt Width
|
200mm
|
3.The breading machine
is used in conjunction with the sizing, or it can be used alone. It can be used for breading the popular hamburger patties, chicken nuggets, fish-flavored hamburger patties, potato cakes, pumpkin pie, meat skewers and other products on the market. It is an ideal breading for fast food restaurants, distribution centers, and food factories. Crumb equipment.
|
Model No.
|
QT-3
|
|
Power
|
1.28kw
|
|
Voltage
|
380v/50hz(can be customize)
|
|
Weight
|
130kgs
|
|
Dimension
|
1680*550*1480mm
|
|
Belt Width
|
200mm
|
