Quick Details
-
Model Number:
-
GD-RT15
-
Warranty:
-
3 years, 2 years
-
Type:
-
sensor switch
-
Power:
-
10A
-
Sensing Range:
-
110
-
Startup light:
-
less than 10 Lux(Gear selection)
-
Detecting degree:
-
110 degree
-
Detecting distance:
-
4 to 6 meters
-
Load power:
-
100W
-
Time delay:
-
40 +/-10 seconds
-
product size:
-
Dia 26 mm
-
Widely used:
-
ceiling lamp
-
Installation height:
-
2.5M Max
-
Certification:
-
CE
Quick Details
-
Voltage:
-
100-240V, AC100-240V 50/60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Geagood
-
Model Number:
-
GD-RT15
-
Warranty:
-
3 years, 2 years
-
Type:
-
sensor switch
-
Power:
-
10A
-
Sensing Range:
-
110
-
Startup light:
-
less than 10 Lux(Gear selection)
-
Detecting degree:
-
110 degree
-
Detecting distance:
-
4 to 6 meters
-
Load power:
-
100W
-
Time delay:
-
40 +/-10 seconds
-
product size:
-
Dia 26 mm
-
Widely used:
-
ceiling lamp
-
Installation height:
-
2.5M Max
-
Certification:
-
CE
Products Description

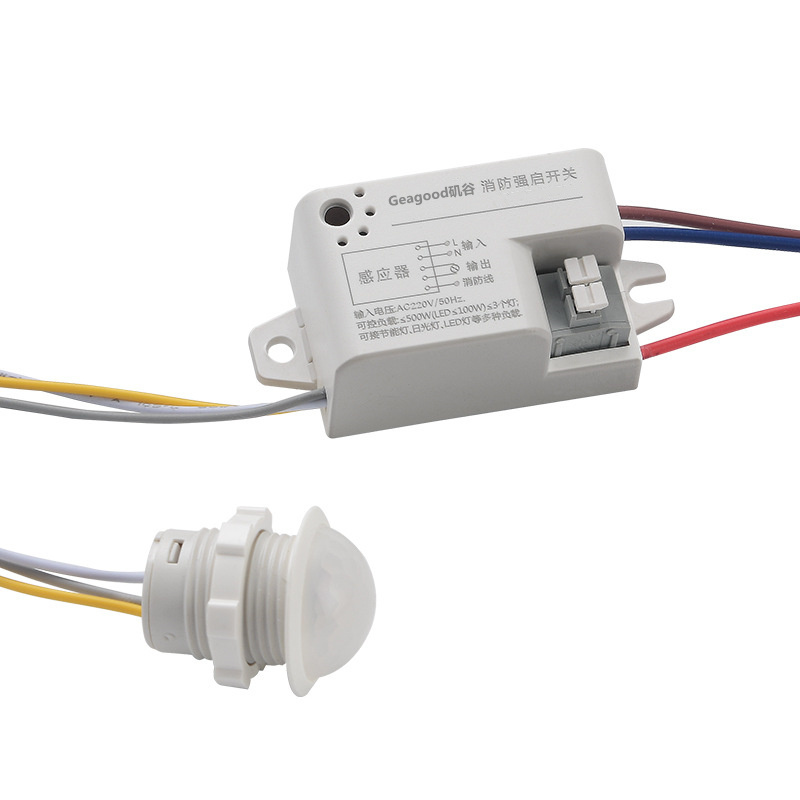

New style mini separate motion sensor switch
(Model: GD-RT15)
It is a good proformance, low cost, energy-saving, automatic time delay switch.
The lamp will turn on automatically when somebody moves into the sensor scope;
The lamp will turn off in setting time when the person leaves from the sensor scope.
It is widely used in ceiling lamp and opening hole dimension about 26mm.
|
Working voltage
|
100-240V 50/60 Hz
|
|
Detection object
|
human body motion sensor
|
|
Detecting distance
|
4 to 6 meters
|
|
Detecting degree
|
110 degree
|
|
Time delay switch off
|
40+/-10 seconds
|
|
Startup light Lux
|
≦10 Lux
|
|
lamp Installation height
|
2.5m Max
|
|
Load power of LED lamp
|
500W(LED ≦100W) < ≦3 LED
|
|
Used for
|
indoor
|
|
Warranty
|
2 years
|
Product feature:
1. Convenience: The light can be turned on automatically when people come, and can be turned off automatically when people go.
2. Safety and saving energy: Avoiding to waste when people forget to turn off the light.
3. Saving cost: Save the wire from switch to the lamp and installation cost.
4. Health: People no need to touch the switch, can be avoid the infect when touch in the public place.
Applicable scope: Public automatic illumination, stair passageway, corridor, fire exit, balcony, garage, entrance garden and other place requiring automatic illumination.
1. Convenience: The light can be turned on automatically when people come, and can be turned off automatically when people go.
2. Safety and saving energy: Avoiding to waste when people forget to turn off the light.
3. Saving cost: Save the wire from switch to the lamp and installation cost.
4. Health: People no need to touch the switch, can be avoid the infect when touch in the public place.
Applicable scope: Public automatic illumination, stair passageway, corridor, fire exit, balcony, garage, entrance garden and other place requiring automatic illumination.
Application
International 86 style can directly replace the wall switch.
It is widely used in lighting showroom, furniture showroom, hotel and office.
It can replace traditional pull switch.
It is widely used in lighting showroom, furniture showroom, hotel and office.
It can replace traditional pull switch.
