Quick Details
-
Model Number:
-
HQ2
-
Certification:
-
ce
-
Output Voltage:
-
12v/24v
-
rotor diameter:
-
CUSTOMIZED
-
Item:
-
wind generator
-
Type:
-
H-type
-
Rated power:
-
100w-10kw
-
Maximum power:
-
150w-12KW
-
Application:
-
New energy field
-
Generator:
-
yes
-
Speed range:
-
2.5-25m/s
-
Keywords:
-
Wind Energy System
-
Name:
-
Grid Solar
-
Certificate:
-
ISO9001,CE
Quick Details
-
Rated Power:
-
100w-10kw
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FNE power
-
Model Number:
-
HQ2
-
Certification:
-
ce
-
Output Voltage:
-
12v/24v
-
rotor diameter:
-
CUSTOMIZED
-
Item:
-
wind generator
-
Type:
-
H-type
-
Rated power:
-
100w-10kw
-
Maximum power:
-
150w-12KW
-
Application:
-
New energy field
-
Generator:
-
yes
-
Speed range:
-
2.5-25m/s
-
Keywords:
-
Wind Energy System
-
Name:
-
Grid Solar
-
Certificate:
-
ISO9001,CE
Guangzhou Funeng Electric Power Technology Co.,ltd.
Guangzhou Funeng is a processional, fast growing company. The company is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, inverter, battery, controller and solar system,wind power system.

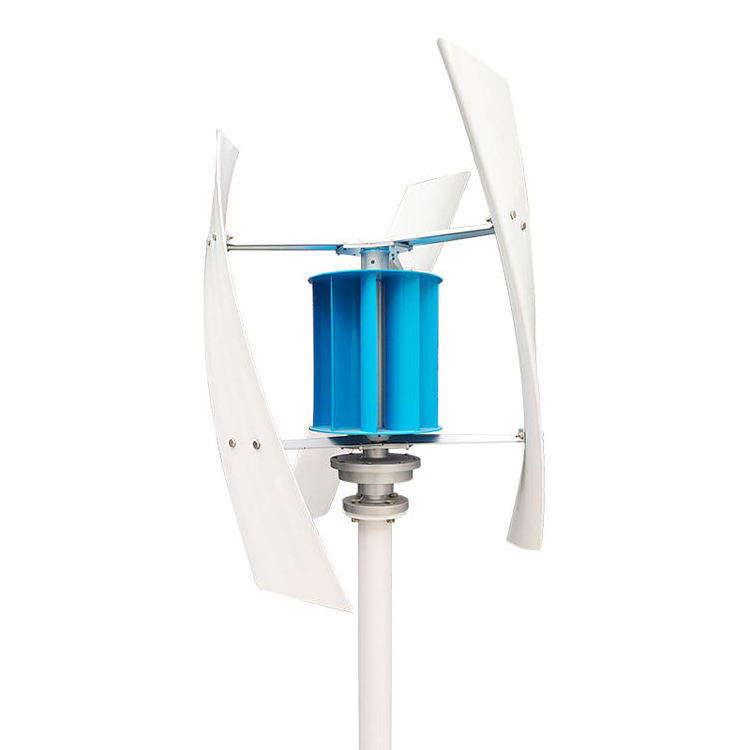

Features
*Safety
The vertical blade is adopted, and the main stress point is concentrated on the hub, so the problems of blade falling off, fracture and blade flying out have been better solved.
*Noise
Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment.
*Wind resistance
The principle of horizontal rotation and vertical flat blade makes it less subject to wind pressure and can resist super typhoon.
*Turning radius
Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency.
*Generation curve characteristics
The start-up wind speed is lower than that of other types of wind turbines, and the rising range of power generation is relatively gentle. Therefore, within the wind speed range of 5 ~ 8m, its power generation is 10% ~ 30% higher than that of other types of wind turbines.
*Uilization wind speed range
The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m/ s, maximize the use of wind resources, obtain greater total power generation, and improve the economy of wind power equipment.
*Braking device
The blade itself has speed protection and is also equipped with electromagnetic brake.
|
Model
|
HQ-100W
|
HQ-200W
|
HQ-300W
|
HQ-500W
|
HQ-600W
|
HQ-800W
|
|
Rated power
|
100W
|
200W
|
300W
|
500W
|
600W
|
800W
|
|
Maximum power
|
150W
|
250W
|
350W
|
550W
|
700W
|
900W
|
|
Rated voltage
|
12V/24V
|
12V/24V
|
12V/24V
|
24V/48V
|
24V/48V
|
24V/48V
|
|
Start-up wind spped
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
|
Rated wind speed
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
|
Suvival wind speed
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
40m/s
|
|
Model
|
HQ-1KW
|
HQ-2KW
|
HQ-3KW
|
HQ-4KW
|
HQ-5KW
|
HQ-10KW
|
|
Rated power
|
1KW
|
2KW
|
3KW
|
4KW
|
5KW
|
10KW
|
|
Maximum power
|
1.5KW
|
2KW
|
3.5KW
|
5KW
|
6KW
|
12KW
|
|
Rated voltage
|
24V/48V/96V
|
48V/96V
|
48V/96V/120V
|
48V/96V/120V
|
96V/120V/220V
|
220V/380V
|
|
Start-up wind spped
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
2.5m/s
|
|
Rated wind speed
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
12m/s
|
|
Suvival wind speed
|
40m/s
|
40m/s
|
45m/s
|
45m/s
|
45m/s
|
45m/s
|
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
