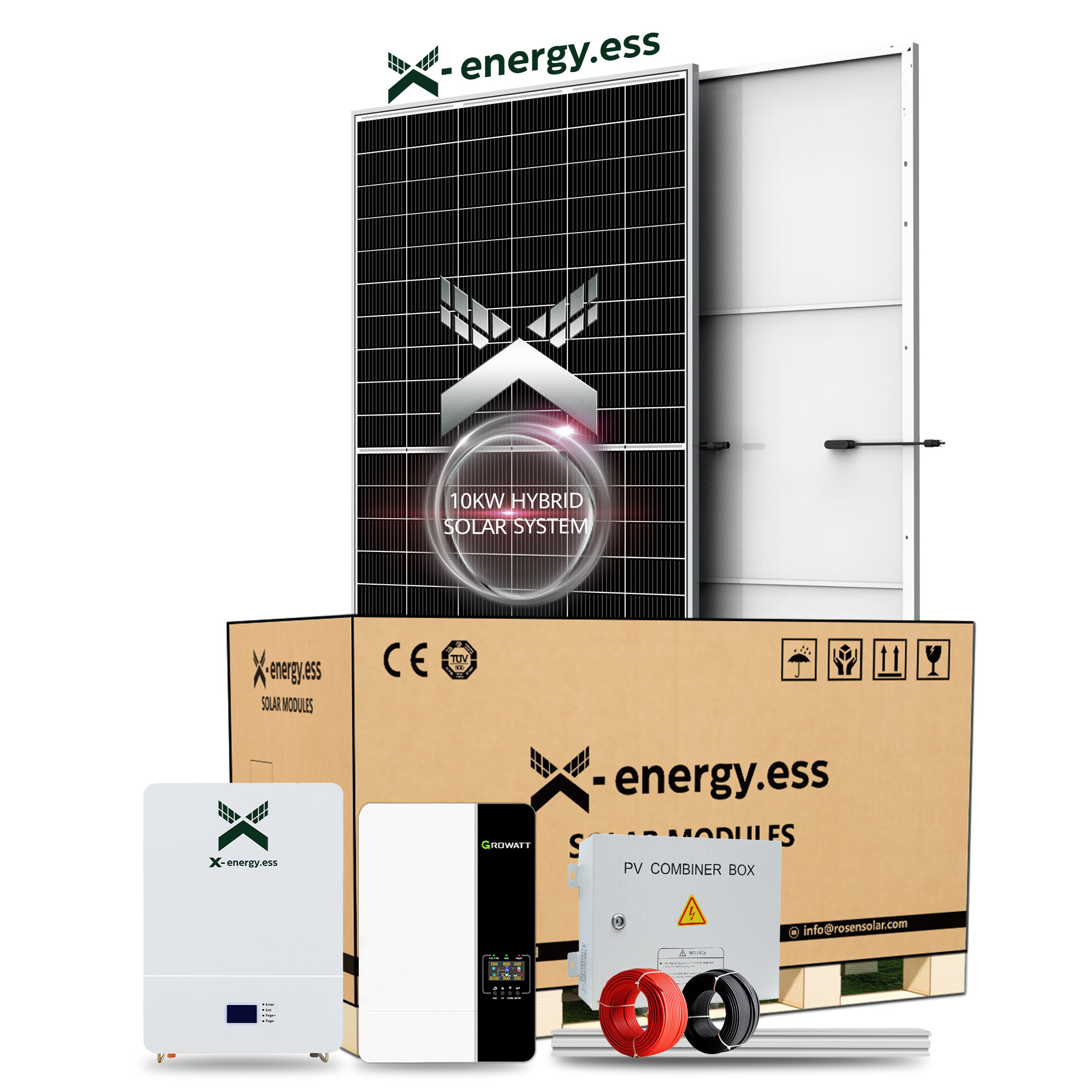

10kw Solar System Residential solar power kit 20kw Solar Battery System Solar Panel System Hybrid

10kw Solar System Residential solar power kit 20kw Solar Battery System Solar Panel System Hybrid

FOB Reference Price: Get Latest Price

≥10 Pieces

US $0.21

≥30 Pieces

US $0.18

≥50 Pieces

US $0.15

Free Inquiry

Customized Request

Explore More Products

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

900W Micro Balcony Power Plant 300w 600w 800w Deutschland Balcony Solar Panel Power System

$ 2.48 - $ 63.72

Solar Power Generator 600w Micro System Solar Panels Kit For Home Balcony

$ 2.48 - $ 63.72

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

High Performance Waterproof Home Balcony Complete System Solar Panel

$ 2.48 - $ 63.72

Off-Grid High Power Photovoltaic Panel Charging Controller Solar Regulateur Mppt

$ 59.11

Off Grid Pwm Solar Charge Controller Max Pv 100v 12v 24v 48v Auto Lcd Display Battery Intelligent Regulator For Solar Panel

$ 4.92

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof/Ground Mounting

Certificate:: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

Place of Origin:: Anhui, China

Brand Name:: X Energy ESS & OEM

Model Number:: X10KW-HY

Output Voltage (V):: EU:220/380VAC;US:110/120VAC

Output Frequency:: 50Hz/60Hz

Work Time (h):: 24 Hours

Type:: Hybrid Off Grid Solar System

Inverter:: Hybrid Inverter

Battery:: Lithium Battery / Lead-acid Batteries

PV Cable:: 4mm2/6mm2/10mm2 etc

Monitoring:: WIFI/RS232/RS485/GPRS

Mounting Structure:: Aluminium Allot/Hot Dip Galvanized Steel

Accessories:: MC-4 spanner, Crimping pliers etc

Package:: Standard Wooden Box/Carton

Function:: Generate Electricity

Keyword:: Complete Solar System

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof/Ground Mounting

Certificate:: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

Place of Origin:: Anhui, China

Brand Name:: X Energy ESS & OEM

Model Number:: X10KW-HY

Output Voltage (V):: EU:220/380VAC;US:110/120VAC

Output Frequency:: 50Hz/60Hz

Work Time (h):: 24 Hours

Type:: Hybrid Off Grid Solar System

Inverter:: Hybrid Inverter

Battery:: Lithium Battery / Lead-acid Batteries

PV Cable:: 4mm2/6mm2/10mm2 etc

Monitoring:: WIFI/RS232/RS485/GPRS

Mounting Structure:: Aluminium Allot/Hot Dip Galvanized Steel

Accessories:: MC-4 spanner, Crimping pliers etc

Package:: Standard Wooden Box/Carton

Function:: Generate Electricity

Keyword:: Complete Solar System

Product Description

System Configuration

Item	5KW	10KW	15KW
Half Cell Solar Panel	10 - 12 pieces	20 -24 pieces	30-36 pieces
PV Combiner Box	DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector
Hybrid Solar Inverter	5kw	10kw	15kw
WIFI Module Monitor	1 set			1 set	1 set
Solar Battery	Lithium Battery / Lead-acid Batteries			Lithium Powerwall with BMS/GEL	Lithium Powerwall with BMS/GEL
PV Cable	4mm² / 6mm² ，Red and Black			4/6mm²	4/6mm²
Mounting Bracket	Customized Concrete Roof / Tile Roof / Metal Roof / Ground			Tile Roof/Ground	Tile Roof/Ground
Accessories	PV Cable, MC4 Connector, Installation Tool,User Manual			20pcs	30pcs
For more technical specification and price list, please contact: +86 18297974196

Technical Specification

Solar Panels

• N Type and PERC Panels All Are Available • Wide Power Range From 300W - 700W • Silver / Black / Bifacial Panels • High Efficiency 9BB/10BB/12BB/16BB PV Cell

• Linear Power Warranty 30 Years

• Wind Load 2400Pa / Snow Load 5400Pa

• J-Box IP68 Rated, 3 Diodes

PV Inverter

• Single Phase/Three Phase/Split Phase

• Hybrid Type, Get Power From Solar / Battery / Grid / G enerator

• Intelligent Cloud Platform Monitoring • MPPT Charger Controller Build In • With Grid And Without Grid All Are Available

• Support Multiple Inverters Parallel

• Communication P rotocol CAN / RS485

• PV Input Lightning Protection / PV String Input Reverse Polarity Protection / Output Over Current Protection

Solar Battery

• LifePO4 Lithium ion Battery , Rack Mounted And Powerwall Style

• 48V LV Storage Or HV Battery 96V / 192V / 240V / 288V / 384V
• Integrated Multiple Communication Protocol And C ompatible Multiple Brand Solar Inverters

• Cycle Time More Than 6000

• Battery Cables, Communication Cables， Upgrade Cables Are Included

EPC Accessories

• Customized Mounting System For Tile Roof or Metal Roof or Ground.

• Combiner Box with Short-Circuit Protection And Lightning Protector.
• DC Cables Red Black 4mm2/6mm2/10mm2

• MC4 Connector 1500Vdc

• Solar Installation Tool Set

Production & Packaging

Projects

5KW Hybrid Off Grid Solar System

• System Installation Time November 2022

• Generate 22kwh Per Day On Average

• Voltage 230V 50HZ Single Phase

• Battery Storage 10kwh For Night Consuming

10KW Hybrid Solar Energy System

• System Installation Time March 2021

• Generate 47kwh Per Day On Average

• Voltage 110V/220Vac, 50HZ Split Phase

• Battery Storage 20kwh For Night Consuming

30KW Hybrid Off Grid Solar Power Station

• System Installation Time May 2022
• Generate 92kwh Per Day On Average

• Voltage 220/380V 50HZ Three Phase

• Battery Storage 50kwh As Backup Power

FAQ

1, How long is the delivery time of photovoltaic solar systems ? "Usually delivery time about 10work days for pv solar systems , please note in advance if you need it to be faster" 2, Solar panels are fragile, how to avoid damage during transportation? "We pack all solar panels by customized solid wooden box for better protection" 3, Which types of solar panels do you use for solar system ? "PERC or N- type Topcon are all available，hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system " 4, How does the client know about the whole solar energy system connection？ "Not only get products, customers also get our technical support and services，customer can install as per the wiring diagram. or call us directly to get online installation guide service" 5, How many kwh batteries does customer need for the photovoltaic system ? "Usually, 5kw system with 5-20kwh battery energy storage, 10kw system with 10-30kwh batteries. our sales will help you choose the suitable solar energy storage system solution" 6, Which types of battery you supply for energy storage systems ? "Now we mainly have storage batteries of deep cycle maintenance free lead acid battery or most popular Lithium ion Batteries powerwall or stackable rack types, which is compatible with most hybrid solar inverter communication" 7, Do you manufacture large containerized lithium ESS ? "Yes, we design the complete ESS for you with connection layout, PV simulation, ROI,installation, training, commissioning etc. Now we are mainly installing factory projects about 100kwh to 500kwh storage ESS with 10/20feet containers, HVAC, hybrid inverter, PCS chargers, battery storage, mounting brackets etc" 8, How does customer get best quotation and technical datasheet? "Please send enquiry and leave your contact，our sales will get in touch with you and discuss the solar system in details"

Our Support
