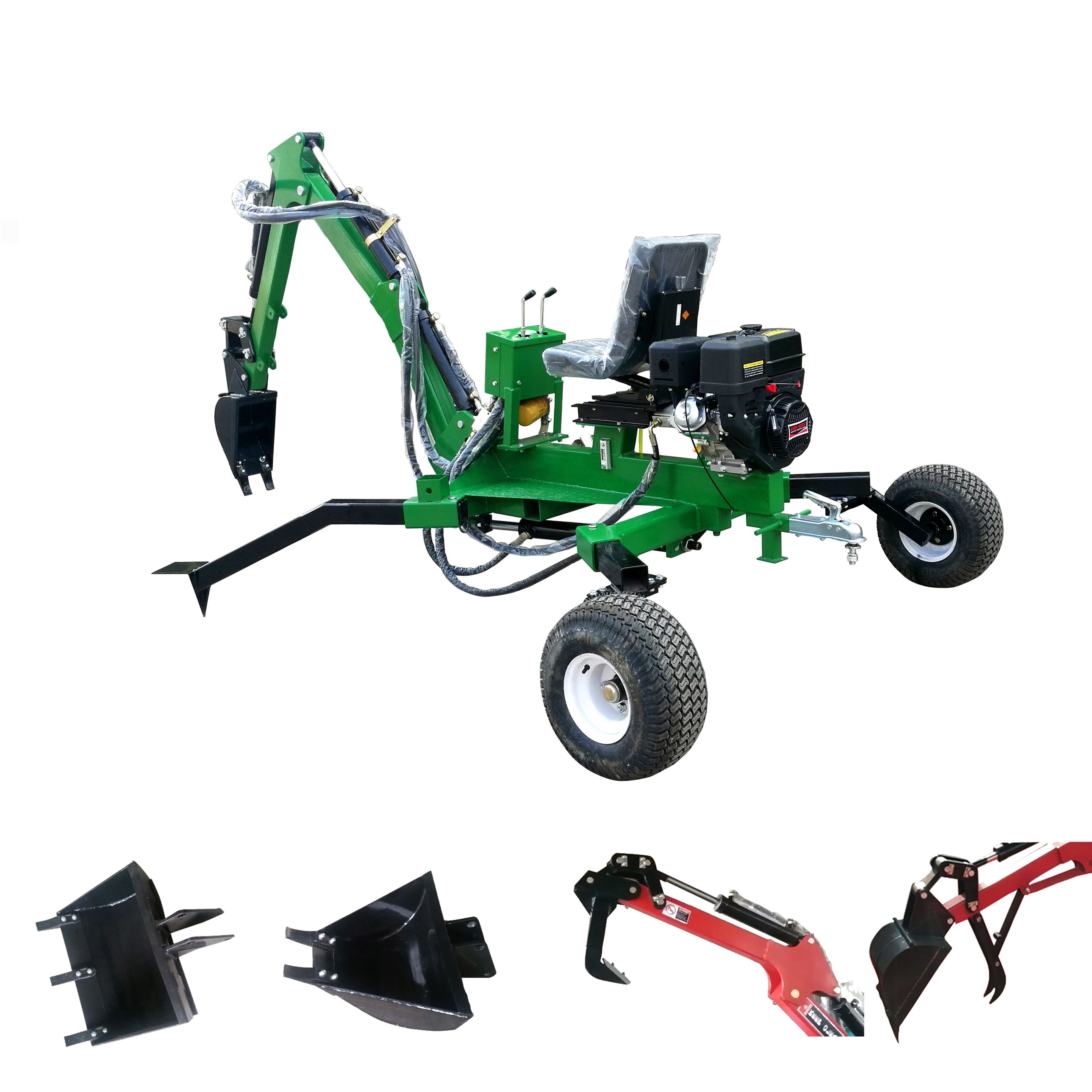

1) Mini towable backhoe matched any vehicles;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
|
Specifications Of Backhoe
|
|
|
|
Model
|
LW-6
|
|
|
Power
|
9HP / 15HP Gasoline engine
|
|
|
Structure Weight
|
550kgs
|
|
|
Max. Digging Depth
|
2400mm
|
|
|
Max. Digging Radius
|
2800mm
|
|
|
Max. Digging Height
|
2500mm
|
|
|
Max. Unloading Height
|
1200mm
|
|
|
Stabilizer Wdith
|
1800mm
|
|
|
Swing Angle For Boom
|
140 degree
|
|
|
Bucket Turning Angle
|
160 degree
|
|
|
Bucket Capacity
|
0.036m³
|
|
|
Bucket Width
|
Optional: 220mm/300mm/400mm/500mm,600mm
|
|
|
Pump
|
Double Speed Gear Pump
|
|
|
Coupler Size
|
2" or 5cm Ball For Easy Towing
|
|
|
Dimension (L x W x H)
|
1800mmx1100mmx900mm
|
|
|
Quantity in 20'GP / 40'HQ
|
12/36PCS
|
|
Model: LW-6
Brand: Kinger
Original: China
Standards : CE approved
It is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
Name:
pressure reducing valve for the steering system
It's for avoide steering arm damage when operating the steering while digging into the soil.
It's pressure can be adjustable, please freely contact with us for more details, thanks.
1) Control Valve Bank
2) comfortable seat
3) hydraulic oil input
please freely contact with us for more details, thanks.
*
2" size for North American market.
* 50mm size for Europe market.
Please freely contact with us for more details, thanks.
9hp standard gasoline engine ( 270CC) .
EPA emission approved for North America market.
or EC emission approved for Europe.
15hp
optional gasoline engine.
(420CC)
EPA emission approved for North America market.
or EC emission approved for Europe.
from design, material cutting, parts processing, rust cleaning, painting, assembly lines, we keep high inspection quality of each step to ensure the last finished machine in high qualification.
If any problems during using cause of bad manufacture, we will supply the free parts in 2-3 working days.
|
Backhoe Packaging
|
|
|
|
Size
|
1800mmx1100mmx900mm
|
|
|
Weight
|
550kg
|
|
|
Packaging Details
|
The normal package is iron crate.
(Size: L*W*H: 1.8mx1.1mx0.9m=1.78CBM).
Or as your requirements.
|
|
|
Our Location and Delivery
|
|
|
|
Location
|
Weifang
|
|
|
Delivery
|
|
|
|
|
|
|
* Inquiry and consulting support.
* View our Factory.
* Kinger have a professional team, we accept drawing or your samples to develop new product.
* Engineers available to service machinery overseas.
* K inger always offer relative technical support, quickly response, all your inquires will be replied within 24 hours.
* After delivery, we will track the products for your once a week until you get the products, when you get the goods, please give us a feedback after testing, if you have any questions, please tell us, we will offer the solution for you.
