Quick Details
-
Dimension(L*W*H):
-
7.5*1.6*1.5m
-
Certification:
-
ISO9001
-
Cutting power:
-
45KW
-
Cutting ability:
-
40MPa
-
Walking speed:
-
12m/min
-
Rotational speed of star wheel:
-
30r/min
-
Total installed power:
-
70KW
Quick Details
-
Place of Origin:
-
Shandong, China, Shandong, China
-
After-sales Service Provided:
-
Video technical support, Engineers available to service machinery overseas
-
Product name:
-
Mini roadheader tunnel boring machine wholesaler
-
Dimension(L*W*H):
-
7.5*1.6*1.5m
-
Certification:
-
ISO9001
-
Cutting power:
-
45KW
-
Cutting ability:
-
40MPa
-
Walking speed:
-
12m/min
-
Rotational speed of star wheel:
-
30r/min
-
Total installed power:
-
70KW

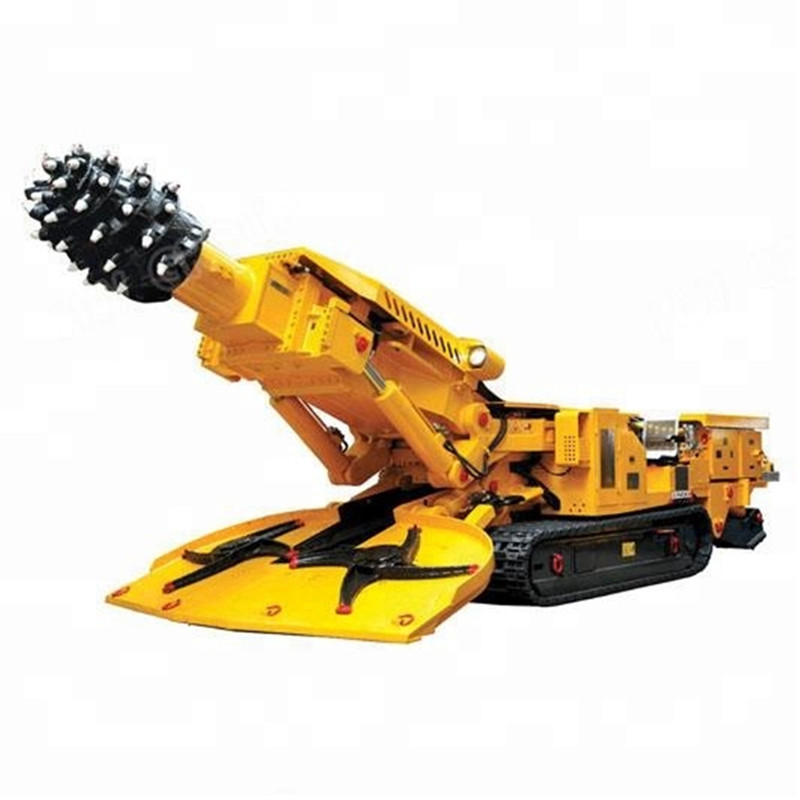

Mini roadheader tunnel boring machine wholesaler
Heavy duty hard rock drilling coal mine roadheader (TBM); According to the operation mode, it is divided into open tunneling machine and shield tunneling machine.
Working mode: mainly consists of walking mechanism, working mechanism, loading mechanism and transfer mechanism. As the walking mechanism advances, the cutting head in the working mechanism breaks rocks and carries them away. It has the advantages of safety, high efficiency and good quality.
EBZ coal mine roadheader is mainly used in coal roadway, semi-coal roadway and soft rock roadway and tunnel tunneling. High configuration, safe and reliable. Through the second transport plane, it can be matched with dump truck, shuttle truck, belt conveyor, etc. to realize continuous cutting, loading and transportation.
1. High configuration, advanced technology, good reliability, low center of gravity and good machine stability; The cutting part is retractable with a retractable stroke of 550mm.
2. The coal mine roadheader has internal and external spray, and the internal spray is the spray behind the teeth, so as to strengthen the external spray and reasonably design the form of external spray. The internal spray has the function of water leakage detection.
3. Large inclination Angle at the bottom of the shovel plate, large ground clearance and strong climbing ability of the whole machine. The motor directly drives the star wheel, which is conducive to loading and bottom cleaning;
4. The horizontal and straight structure of the intermediate transport plane is formed by four-link rod slippage with the shovel plate. When the shovel plate is lifted or horizontal, the length of the scraper chain of the first transport plane changes little;
5. High gantry, smooth transportation, double-chain scraper transport, high-strength wear-resistant steel plate is adopted in the chute to ensure the service life of chute and scraper;
6. The body and rear support are welded with thick plate box structure, with good rigidity and high reliability;
7. The walking drive system is highly integrated with internationally advanced motor and reducer, and the output torque is highly adaptable to the operation of large inclination Angle.
8. The hydraulic system adopts constant power, pressure cutting and load sensitive control;
9. The electric system adopts the new comprehensive protection, with the function of self-diagnosis and memory for the dynamic display of liquid crystal characters.
|
Name |
EBZ 120 |
EBZ 75 |
EBZ 45 |
|
Cutting power |
120KW |
75KW |
45KW |
|
Cutting head speed |
42r/min |
60r/min |
65r/min |
|
Cutting ability |
70MPa |
50MPa |
40MPa |
|
Retracting capacity of cutting mechanism |
240mm |
550mm |
550mm |
|
Walking speed |
9m/min |
12m/min |
12m/min |
|
Climbing ability |
±18° |
±16° |
±18° |
|
Rotational speed of star wheel |
30r/min |
30r/min |
30r/min |
|
Chain speed of scraper |
0.85m/s |
0.65m/s |
0.65m/s |
|
Total installed power |
195KW |
105KW |
70KW |
|
Power supply voltage |
1140/660V |
1140/660V |
380/660V |
|
Maximum heading height |
3.75m |
3.50m |
3.50m |
|
Maximum positioning driving width |
5.0m |
4.20m |
3.80m |
|
Undercover |
240mm |
300m |
350m |
|
Ground specific pressure |
0.14Mpa |
0.12Mpa |
0.12Mpa |
|
Ground gap |
250mm |
200mm |
180mm |
|
Throughput |
50-80t/h |
20-50t/h |
8-20t/h |
|
Machine weight |
35t |
18.8t |
11.8t |
|
Dimension(L*W*H) |
8.74*2.8*1.55mm |
7.5*1.6*1.5m |
7.5*1.6*1.5m |
