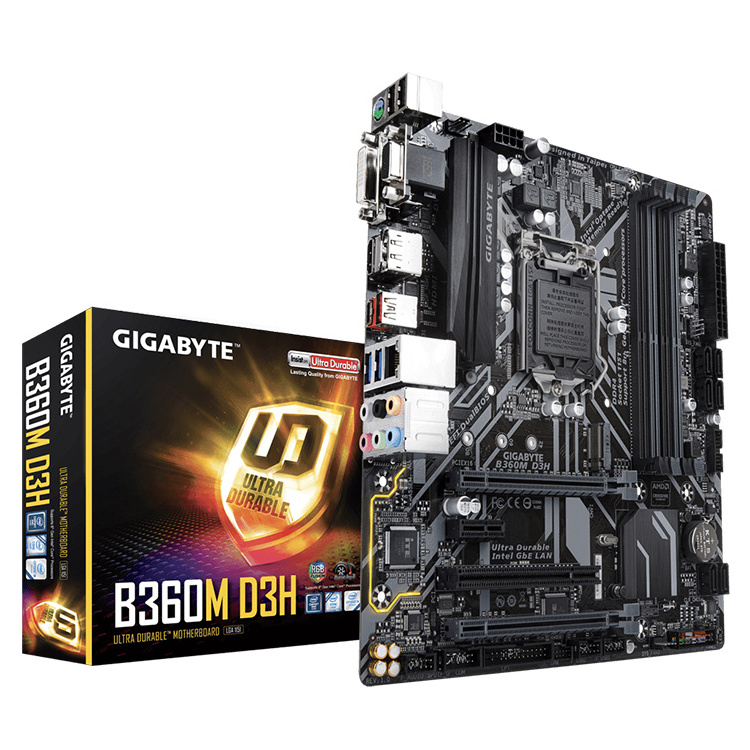

GIGABYTE B360M D3H Gaming Motherboard with Intel B360 Chipset LGA 1151 Socket Support Intel Core 8th 9th I3 I5 I7 I9 Processors

GIGABYTE B360M D3H Gaming Motherboard with Intel B360 Chipset LGA 1151 Socket Support Intel Core 8th 9th I3 I5 I7 I9 Processors

Intel B360 Ultra Durable motherboard with USB 3.1 Gen2 Type-A, Intel GbE LAN with 25KV protection, PCIe Gen3 x4 M.2, 7 colors RGB LED strips support, Anti-Sulfur Resistor, Smart Fan5, DualBIOS™, CEC 2019 ready

• Supports 9th and 8th Gen Intel ^® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New Hybrid Digital PWM Design
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
• RGB FUSION supports RGB LED strips in 7 colors
• Intel ^® Native USB 3.1 Gen2 USB Type-A
• Intel ^® GbE LAN with cFosSpeed Internet Accelerator Software
• CEC 2019 Ready, Save the Power as Easy as One Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
• Intel ^® Optane™ Memory Ready
• GIGABYTE UEFI DualBIOS™

• CPU

1. Support for 9th and 8th Generation Intel ^® Core™ i7 processors/Intel ^® Core™ i5 processors/ Intel ^® Core™ i3 processors/Intel ^® Pentium ^® processors/Intel ^® Celeron ^® processors in the LGA1151 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

• Chipset

1. Intel ^® B360 Express Chipset

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
   * To support 2666 MHz or XMP memory, you must install an 8 ^th Generation Intel ^® Core™ i7/i5 processor.

(Please refer "Memory Support List" for more information.)

• Onboard Graphics

Integrated Graphics Processor-Intel ^® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU

• Audio

1. Realtek ^® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. Intel ^® GbE LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors

Intel ^® Optane™ Memory Ready

• USB

Chipset:

1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
3. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 6 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x HDMI port
6. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
7. 1 x USB 3.1 Gen 2 Type-A port (red)
8. 2 x USB 3.1 Gen 1 ports
9. 2 x USB 2.0/1.1 ports
10. 1 x RJ-45 port
11. 6 x audio jacks

1. iTE ^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   Smart TimeLock
   Smart HUD
   System Information Viewer
   USB Blocker
   V-Tuner
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton ^® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 23.0cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
