First Quality Made in China Halliburton HT400 Pump fluid end assembly

First Quality Made in China Halliburton HT400 Pump fluid end assembly

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years, One Year

Brand Name:: TIGERRIG

Model Number:: HT400

Place of Origin:: Sichuan, China

Horsepower:: 380v

Cable Length:: 40

Outlet Size:: 40

Power:: 40, Hydraulic

Fuel:: Diesel

Standard or Nonstandard:: Standard

Theory:: Reciprocating Pump

Product name:: HT400 Triplex Plunger Pump

Color:: Red

Usage:: Well cementation

Certification:: RoHS

Quick Details

Application:: Other, Industrial Utilities, Mining industry

Pressure:: 35mpa, High Pressure

Voltage:: 40

Warranty:: 1 years, One Year

Brand Name:: TIGERRIG

Model Number:: HT400

Place of Origin:: Sichuan, China

Horsepower:: 380v

Cable Length:: 40

Outlet Size:: 40

Power:: 40, Hydraulic

Fuel:: Diesel

Standard or Nonstandard:: Standard

Theory:: Reciprocating Pump

Product name:: HT400 Triplex Plunger Pump

Color:: Red

Usage:: Well cementation

Certification:: RoHS

HT400 Triplex Plunger Pump fluied end assembly

Product Description

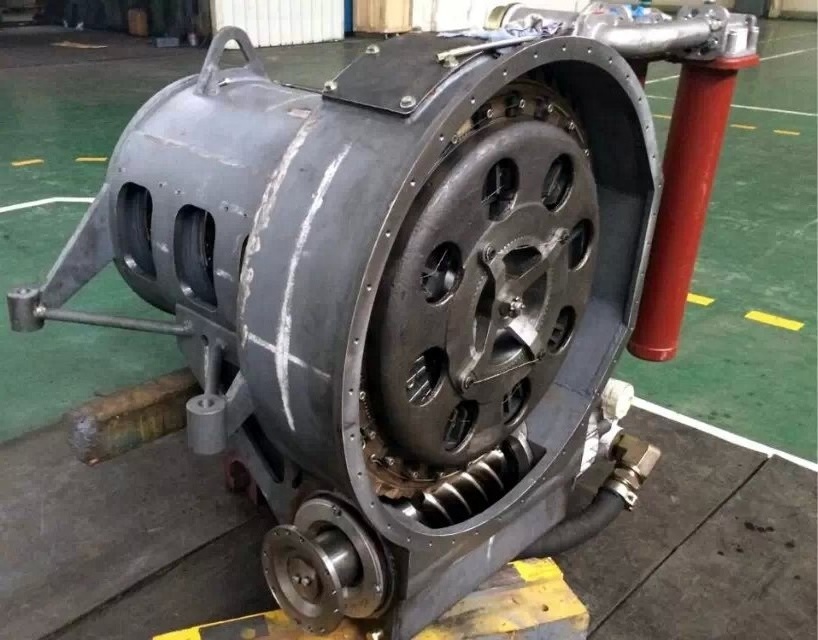

Features of HT400 Triplex Plunger Pump

1. Alloy steel fluid end is produced by die forge vacuum smelting.
2. Large modulus quintuple worm gear pair, lager scale composite bearing, super-hardness forged aluminum connecting rod, inner gearing oil pump.
3. Well apply to truck mounted, van truck mounted and skid mounted cementing unit. It has been marketed in China, the U.S, Mexico and Singapore.
4. It is better suited for the cementing unit which service at sea and in desert.

specification

HT400Triplex Plunger Pump Performance Data

PLUNGER DIAMETER	DISPLACE PER REV	DISPLACEMENT AT PUMP STROKES PER MINUTE/ PINION RPM
PLUNGER DIAMETER	DISPLACE PER REV	32/275						32/275
Inch (mm)	Gallon/Rev (Liter/Rev)	GPM (LPM)	Inch (mm)	Gallon/Rev (Liter/Rev)	GPM (LPM)	Inch (mm)	Gallon/Rev (Liter/Rev)	GPM (LPM)	Inch (mm)	Gallon/Rev (Liter/Rev)	GPM (LPM)
3 3/8 ” (85.7)	0.93 (3.52)	29.7 (104)	20,000 (137.9)	64.7 (244.8)	14,314 (98.6)	118.8 (449.8)	7,789 (53.7)	158.7 (600.8)	5,832 (40.2)	227.0 (859.2)	4,078 (28.1)
4 ” (101.6)	1.31 (4.94)	41.8 (158)	14,000 (96.5)	91 (344)	10,190 (70.3)	167 (632)	5,545 (38.2)	223 (844)	4,152 (28.6)	319 (1206)	2,903 (20.0)
4 1/ 2 ” (114.3)	1.65 (6.25)	53 (200)	11,200 (77.2)	115 (435)	8,051 (55.5)	211 (800)	4,381 (30.2)	282 (1067)	3,280 (22.6)	403 (1527)	2,294 (15.8)
Input power: horsepower (Kw)		346(257)		600(447)		600(447)		600(447)		600(447)
