Quick Details
-
Brand Name:
-
LIYI
-
Product name:
-
LIYI XRF Analyzer Price Machine X Fluorescence Spectrometer
-
Test Element Range:
-
elements in S-U
-
Detection Range:
-
1ppm-99.99%
-
RoHS Detection Limit:
-
Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm
-
Test Sample Type:
-
solid, powder and liquid
-
Measurement Time:
-
120-400s (system automatically adjust)
-
Collimator:
-
2mm, 5mm
-
Filter:
-
8 kinds of composite filters automatically switch
-
Sample Fretting Range:
-
XY8mm
-
Power supply:
-
AC220V ~ 240V, 50 / 60Hz
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIYI
-
Product name:
-
LIYI XRF Analyzer Price Machine X Fluorescence Spectrometer
-
Test Element Range:
-
elements in S-U
-
Detection Range:
-
1ppm-99.99%
-
RoHS Detection Limit:
-
Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm
-
Test Sample Type:
-
solid, powder and liquid
-
Measurement Time:
-
120-400s (system automatically adjust)
-
Collimator:
-
2mm, 5mm
-
Filter:
-
8 kinds of composite filters automatically switch
-
Sample Fretting Range:
-
XY8mm
-
Power supply:
-
AC220V ~ 240V, 50 / 60Hz

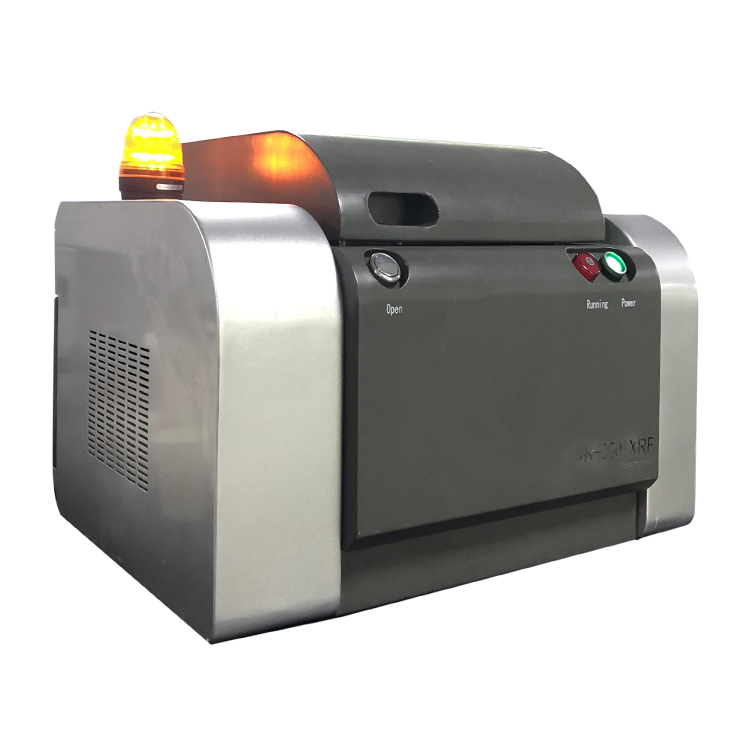

LIYI RoHS XRF Analyzer Price Machine X Fluorescence Spectrometer Plastic ROHS Testing Machine
A pplication :
It ’ s for RoHS Directive control: large household appliances, small household appliances, information technology and communication equipment, electric tools, toys and other equipment .
F or halogen-free instruction control: products that use flame retardants containing elements such as Cl,Br as raw materials .
Analysis and content Test of elements in Copper Alloy, Ferroalloy, Aluminum Alloy, Titanium Alloy, Superalloy and all kinds of Hybrid Alloy.
Introduction :
It specializes in RoHS instructions, halogen-free instructions, WEEE instructions, soil, ore composition analysis, copper alloy, stainless steel grade identification of high-end models. Keywords triple ray protection system; humanized operation interface; It can control the Cr of Br, hexvalent chromium in Pb,Cd,Hg,PBB and PBDE of RoHS instruction and the Cl and Br elements in halogen-free instruction, and can also identify soil, ore composition analysis, copper alloy and stainless steel grade. It can fully meet the requirements of customer environmental control and material identification. Carefully designed open working curve function, especially suitable for Multi-material plant process control.
|
I nstrument S ize ( W*D*H ) |
680 * 400 * 390mm |
|
S ample C avity S ize |
300 * 360 * 100mm |
|
Test E lement R ange |
elements in S-U |
|
D etection R ange |
1ppm-99.99% |
|
RoHS D etection L imit |
Pb≤5ppm, Cd/Cr/Hg/Br≤2ppm, Cl≤50ppm |
|
T est S ample T ype |
solid, powder and liquid |
|
M easurement T ime |
120-400s (system automatically adjust) |
|
T he B est R esolution |
see the detailed description of the detection system below |
|
C ollimator |
Φ2mm, Φ5mm |
|
F ilter |
8 kinds of composite filters automatically switch |
|
CCD O bservation |
1.3 million pixel HD CCD |
|
S ample F retting R ange |
XY8mm |
|
I nput P ower |
AC220V ~ 240V, 50 / 60Hz |
|
R ated P ower |
350W |
|
W eight |
A bout 45Kg |
|
W orking E nvironment T emperature |
temperature 15-30 ° C |
|
W orking E nvironment R elative H umidity |
≤ 85% (no condensation) |
Performance advantage :
1. Triple ray protection (software, hardware, maze design) to ensure the personal safety of operators and radiation damage caused by accidental operations;
2.the large sample chamber is designed to be adapted to the detection of a large sample, and the hand-held XRF function is partially substituted;
3. It can realize the function of automatic one-click operation, automatic switching of collimator, automatic switching of filter, automatic stop of open cover, automatic photography of sample test photo, automatic saving and automatic pop-up of test report. Automatic screening and preservation of supplier information;
4. The new optical path design is adopted to solve the negative influence of air optical path on the measurement of Cl elements to the maximum extent, and the detection lower limit and stability of chlorine (Cl) elements are guaranteed.
Which product needs to use RoHS?
Large household appliances;
Small household appliances;
Information technology and telecommunications equipment;
Consumer equipment;
Lighting equipment;
Power tools;
Toys, entertainment and sports equipment;
Medical equipment; Monitoring equipment;
Vending machines;
Other electronic and electrical equipment not covered by the above 10 categories of products.
