Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Warranty:
-
Other, 5 Years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EmperySolar
-
Model Number:
-
EPR-GTB400
-
Load Power (W):
-
600w, 400w, 800w
-
Output Voltage (V):
-
110/220Vac, 220V/110V
-
Output Frequency:
-
50HZ, 60HZ
-
Work Time (h):
-
5-6 hours
-
Input Voltage:
-
22/50V
-
Output Voltage:
-
80/160VAC-180/280VAC
-
Output Current:
-
5/2.6A
-
Size:
-
253mm*200mm*40mm
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
NONE
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof Mounting
-
Certificate:
-
CE
-
Warranty:
-
Other, 5 Years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
EmperySolar
-
Model Number:
-
EPR-GTB400
-
Load Power (W):
-
600w, 400w, 800w
-
Output Voltage (V):
-
110/220Vac, 220V/110V
-
Output Frequency:
-
50HZ, 60HZ
-
Work Time (h):
-
5-6 hours
-
Input Voltage:
-
22/50V
-
Output Voltage:
-
80/160VAC-180/280VAC
-
Output Current:
-
5/2.6A
-
Size:
-
253mm*200mm*40mm

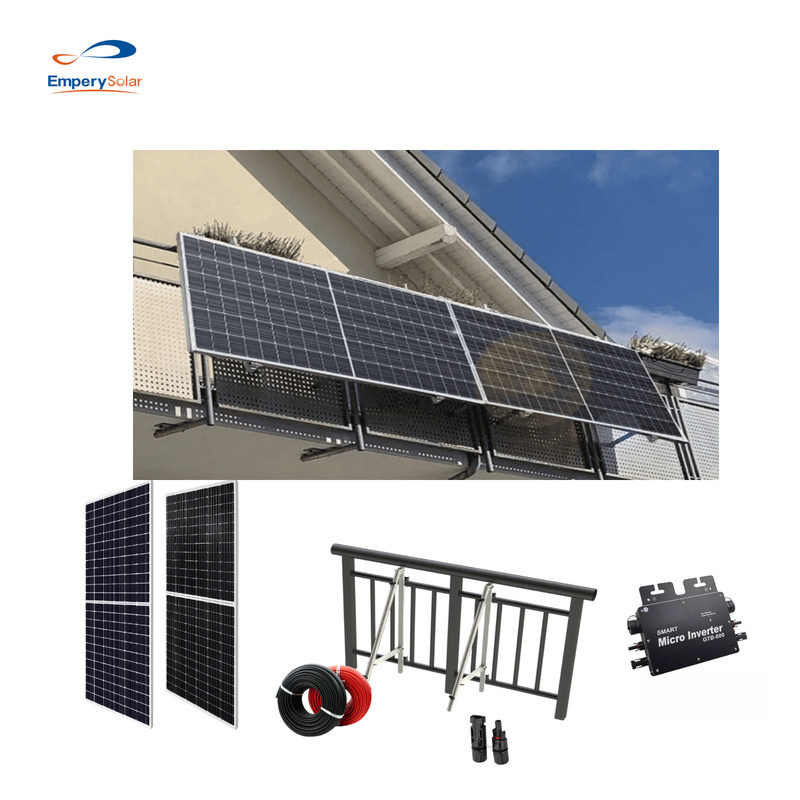

Balcony installation system kit parameters
| Product name | Description | Quantity |
| Grid tied micro inverter | GTB-400Smart 400 W micro inverter | 1PCS |
| Mono solar panel | STC400 Mono 400W solar panel | 1PCS |
| Balcony Mount Bracket | Inclined mounting(vertical mounting optional) | 1Sets |
|
Grid tied micro inverter
Maximum input power:
400Watt
Input Voltage:22/50V
Protection:IP65 |
|
Mono-crystalline silicon solar cells
Maximum power at STC
(
Pmax
):
400W
Optimum operating voltage(Vmp):
37.78V
Optimum operating current
(
Imp
):
10.59A
Open-circuit voltage
(
Voc
):
43.50V
Short-circuit current
(
Isc
):
11.33A
Short-circuit current temperature coefficient:(0.065±0.015)%/℃
Open-circuit voltage temperature coefficient:-(80±10)mV/℃
Peak power temperature coefficient: -(0.5±0.05)%/℃
NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s): 47±2℃
Operating temperature :-40℃ to 85℃ Maximum system voltage :1000V DC Power tolerance :±3% Dimension of module: 1723mm×1134mm×35mm Weight :20.90kg
|
|
Balcony Mount Bracket(vertical mounting)
Installation Site: Balcony Panels: Solar panel for any size Structural materials: Aluminum Survival wind speed:Up to 50m/s Design snow pressure: Up to 1.4KN /m2 Inclination:0°-60deg Certificate: CE TUV UL Warranty: 15 years Life: Design Life for 25 years |
