Quick Details
-
Model Number:
-
EB-16B
-
Type:
-
IR Sensor Button
-
Sensing Range:
-
0.1-10cm
-
Current Rating:
-
3A,36VDC Max
-
Mechanical Life:
-
1000000 tested
-
Suitable for Door:
-
Hollow Door
-
Standard Structure:
-
Stainless steel Panel, Steel Button
-
Operating temp:
-
-10℃ ~ 55°C (14°F-131°F)
-
Operating Humidity:
-
0-95% (non- condensing)
-
Certification:
-
CE
Quick Details
-
Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
EB-16B
-
Type:
-
IR Sensor Button
-
Sensing Range:
-
0.1-10cm
-
Current Rating:
-
3A,36VDC Max
-
Mechanical Life:
-
1000000 tested
-
Suitable for Door:
-
Hollow Door
-
Standard Structure:
-
Stainless steel Panel, Steel Button
-
Operating temp:
-
-10℃ ~ 55°C (14°F-131°F)
-
Operating Humidity:
-
0-95% (non- condensing)
-
Certification:
-
CE

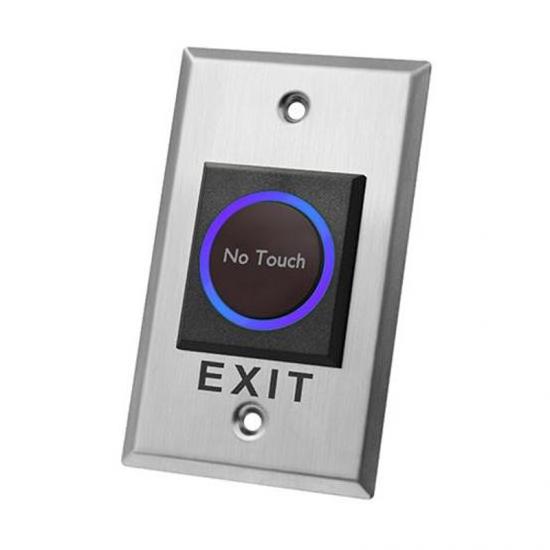

Remote Controller Infrared Sensor Exit Button No Touch Exit Button
Model No: EB-16B
|
Dimensions |
115 X 70 X 25mm |
|
Standard Structure |
Stainless steel Panel, Steel Button |
|
Current Rating |
3A,36VDC Max |
|
Output Contact |
+12V GND NO NC COM |
|
Mechanical Life |
1000000 tested |
|
Suitable for Door |
Hollow Door |
|
Operating temp |
-10℃ ~ 55°C (14°F-131°F) |
|
Operating Humidity |
0-95% (non- condensing) |
|
Detection range |
0.1-10cm |
LED Indicator
|
White LED indicator |
Power OFF |
|
Blue LED indicator |
Power ON(standby) |
|
Red LED indicator |
Power ON(sensation) |
|
Weight |
0.25kg |
|
Standard Packing |
70pcs |
