Quick Details
-
Brand Name:
-
Rata
-
Model Number:
-
RT3.5KWLB
-
Product name:
-
3.5kW AC/DC dummy load bank
-
Certificate:
-
ISO9001/ISO14001/ISO45001/CE
-
MOQ:
-
1 Set
-
Packing:
-
Carton Packaging
Quick Details
-
Warranty:
-
12 months
-
Power:
-
3.5kW
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Rata
-
Model Number:
-
RT3.5KWLB
-
Product name:
-
3.5kW AC/DC dummy load bank
-
Certificate:
-
ISO9001/ISO14001/ISO45001/CE
-
MOQ:
-
1 Set
-
Packing:
-
Carton Packaging
PRODUCT DESCRIPTION
3.5kW AC/DC load bank generally used for
IST commissioning in data center & data room. Testing both electrical network (UPS, Diesel generator, etc.) & air conditioning (free cooling, etc.), the rack-mounted load bank is simulating exact electrical & air conditioning impact of servers in the rack cabinet.
Following is 3.5kW load bank parameter for reference
|
Product name
|
220V AC 3.5KW Rack Mounted Load Bank
|
|
|
|
|||
|
Model No.
|
RT3.5KWACLB
|
|
|
|
|||
|
Capacity
|
3.5kW resistive load
|
|
|
|
|||
|
Nominal voltage
|
220V AC/customized,50/60Hz
|
|
|
|
|||
|
Min. step
|
500W
|
|
|
|
|||
|
Load steps
|
> 500w,1000w,1000w,1000w
|
|
|
|
|||
|
Load adjust
|
MCB(ABB/Schneider brand) for step control
|
|
|
|
|||
|
Power source input
|
Single
|
|
|
|
|||
|
Fan working source
|
Internal
|
|
|
|
|||
|
Protection
|
IP23
|
|
|
|
|||
|
Duty cycle
|
Continuous
|
|
|
|
|||
|
Operation Temp.
|
0 to 40 ℃
|
|
|
|
|||
|
Storage Temp.
|
0 to 60 ℃
|
|
|
|
|||
|
Cooling
|
2 low noises,horizontal force air cooling DC fans, Installed inside the load bank, powered from the test source. Each fan 186CFM,total 372CFM.
|
|
|
|
|||
|
Air flow
|
Air is sucked in the front and blown out horizontally at the rear.
|
|
|
|
|||
|
Technology
|
Expanded metal grids type insulated by ceramic rings
|
|
|
|
|||
|
Packing
|
Carton+wrapping film
|
|
|
|
|||
|
Dimension (L*W*H)
|
3U(490*352*130mm)
|
|
|
|
|||
|
Weight
|
13kg
|
|
|
|
|||
|
Movement
|
2 steel handles at panel side
|
|
|
|
|||
|
Element type
|
High temperature 8020 Ni-chrome finned resistor
|
|
|
|
|||
|
Power connection
|
Power connected at the rear side as following picture shows
|
|
|
|
|||
|
Function options
|
> High temperature
> Air volume adjust
> CFM display
|
|
|
|
|||
|
Power cable
|
> C13
> 1.5~2m
> 32A water proof 3 in 1 plug: the plug with blue color connected to the external power source,and another three plug with black color connected to the load
bank.
|
|
|
|
|||

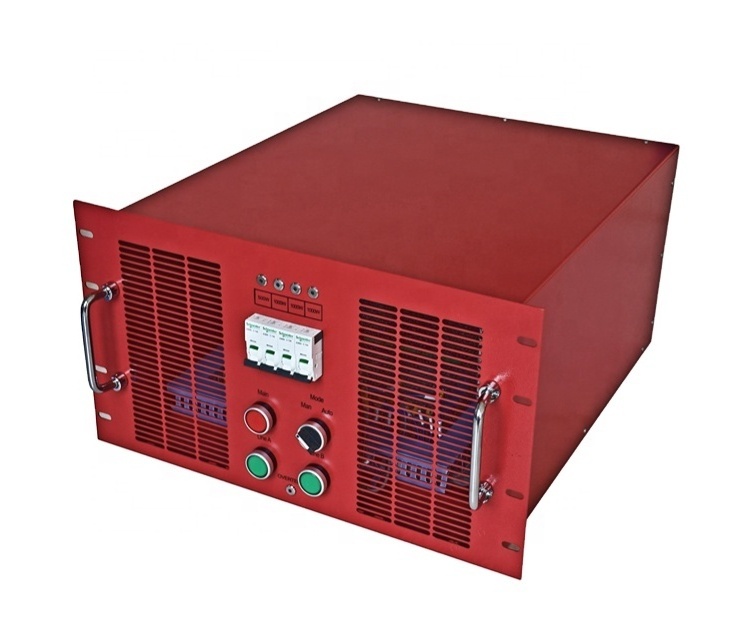

LOAD BANK IMAGES
