Quick Details
-
Product name:
-
MQW-511 Automobile Exhaust Gas analyzer
-
Keyword:
-
Automotive Emission Tester
-
Item type:
-
Automotive Exhaust Gas Analyzer
-
Feature:
-
Suitable for idle & two-speed idle emission test.
-
Usage:
-
Gas Detection
-
Gas Type:
-
HC;CO; CO2; NO; O2
-
Display:
-
LCD Display
-
MQW-511 gas analyzer:
-
Small, light and portable to carry with.
-
Sensor type:
-
NDIR gas sensor
-
MQW-511 car exhaust gas analyzer:
-
Optional micro printer and RPM meter
Quick Details
-
Car Fitment:
-
Universal
-
Place of Origin:
-
China
-
Warranty:
-
12 Months
-
Product name:
-
MQW-511 Automobile Exhaust Gas analyzer
-
Keyword:
-
Automotive Emission Tester
-
Item type:
-
Automotive Exhaust Gas Analyzer
-
Feature:
-
Suitable for idle & two-speed idle emission test.
-
Usage:
-
Gas Detection
-
Gas Type:
-
HC;CO; CO2; NO; O2
-
Display:
-
LCD Display
-
MQW-511 gas analyzer:
-
Small, light and portable to carry with.
-
Sensor type:
-
NDIR gas sensor
-
MQW-511 car exhaust gas analyzer:
-
Optional micro printer and RPM meter
Automotive Emission Tester Exhaust Gas Analyzer Auto Car Emission Exhaust Gas Analyzer HC CO CO2 O2 NO Exhaust Gas Analyzer

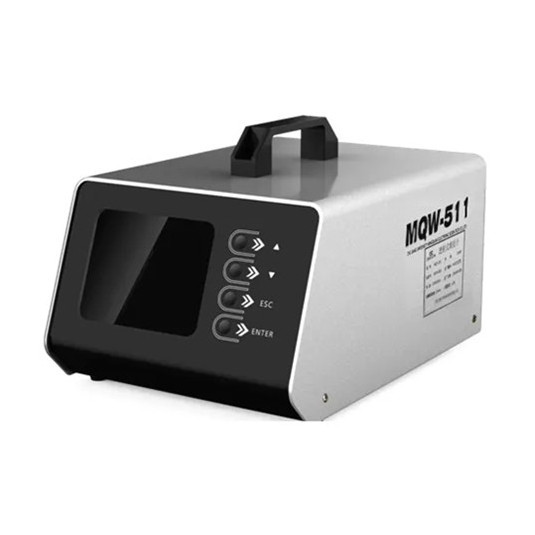

MQW-511 Automotive Exhaust Gas Analyzer:
This analyzer is designed for use in auto repairs, inspections, safety checks and general engine tune-ups, which offers a measuring range that is strictly set to the suitable levels for such operation. It allows you to simultaneously measure concentrations of CO, HC, CO2, NO and O2 in engine emission in idle states. It can also measure the excess air ratio (λ) of test engines. Light weight and compact enough, it can be fit at any work situation. Moreover, with a clear LCD and effortless operation, it can be used as a simple measurement instrument in other than the auto repair field.
Automotive Emission Tester Features:
1. The imported HORIBA optical platform is used to measure the concentration of CO, HC and CO2 by the principle of non-dispersive infrared absorption (NDIR); the concentration of O2 and NO is measured by electrochemical sensors.
2. Equipped with RPM and oil temperature measure interface.
3. Equipped with RS232 interface is convenient for detection line networking, data transmission and report printing.
4. The sampling channel is loaded with a filter system to efficiently separate oil, water and impurities in the exhaust gas, so that the sample gas entering from the sampling channel meets the detection requirements of the high-precision sampling platform, thereby ensuring measurement accuracy and stability.
5. LCD display.
6. Automatic calculation and display of Air-Fuel Ratioλ
7. Automatic zero resetting.
8. With functions of License Plate Number Input and time display.
9. It can provide 500 sets of data storage and intelligent search function of license plate number.
10. Suitable for idle & two-speed idle emission test.
11. The motorcycle inspection function can be specially provided.
12. Optional micro printer and RPM meter.
Technical Data:
1. Environmental Conditions:
Environmental temperature: 0°C ~ 40°C
Relative humidity: ≤90%
Power Supply: AC220V ± 10%,50±1Hz
Atmospheric pressure: 86.0 kPa ~106.0kPa
2. Measure range and resolution:
|
Component |
Measure Range(volume fraction) |
Resolution (volume fraction) |
|
CO |
0.00-16.00(×10-2) |
0.01(×10-2) |
|
CO2 |
0.00-18.00(×10-2) |
0.1(×10-2) |
|
HC |
0-9999(×10-6) |
1(×10-6) |
|
O2 |
0-25.00(×10-2) |
0.02(×10-2) |
|
NO |
0-5000(×10-6) |
1(×10-6) |
3. Range and Accuracy:
|
Gas Type |
Measure Range |
Accuracy |
|
|
Absolute |
Relative |
||
|
HC |
(0~5000)×10-6 |
±12×10-6 |
±5% |
|
(5001~9999)×10-6 |
---- |
±10% |
|
|
CO |
(0.00~10.00)×10-2 |
±0.06×10-2 |
±5% |
|
(10.01~16.00)×10-2 |
---- |
±10% |
|
|
CO2 |
(0.0~18.0)×10-2 |
±0.5×10-2 |
±5% |
|
NO |
(0~4000)×10-6 |
±25×10-6 |
±4% |
|
(4001~5000)×10-6 |
---- |
±8% |
|
|
02 |
(0.0~25.0)×10-2 |
±0.1×10-2 |
±5% |
|
Remark: one of the absolute error and relative error should be satisfied. |
|||
4. Zero drift and Span drift:
The zero point drift and indication drift of the instrument for 1h should not exceed the allowable error of its indication value.
5. Repeatability:
The repeatability of the indication value of the instrument should not exceed 1/3 of the modulus of the allowable error of the indication value.
6. Preheat time:
The warm-up time of the instrument is not more than 15 minutes
7. Response time:
Analyzer response time: HC,CO,CO2≤10s,O2≤12s ,NO≤15s
8. Dimensions: 460mm×240mm×230mm(L×W×H)
9. Weight: 8.5kg(Main Unit)
10. Package: Carton
11. Package Size: 595mm×310mm×345mm
Automotive Emission Tester Exhaust Gas Analyzer Auto Car Emission Exhaust Gas Analyzer HC CO CO2 O2 NO Exhaust Gas Analyzer
