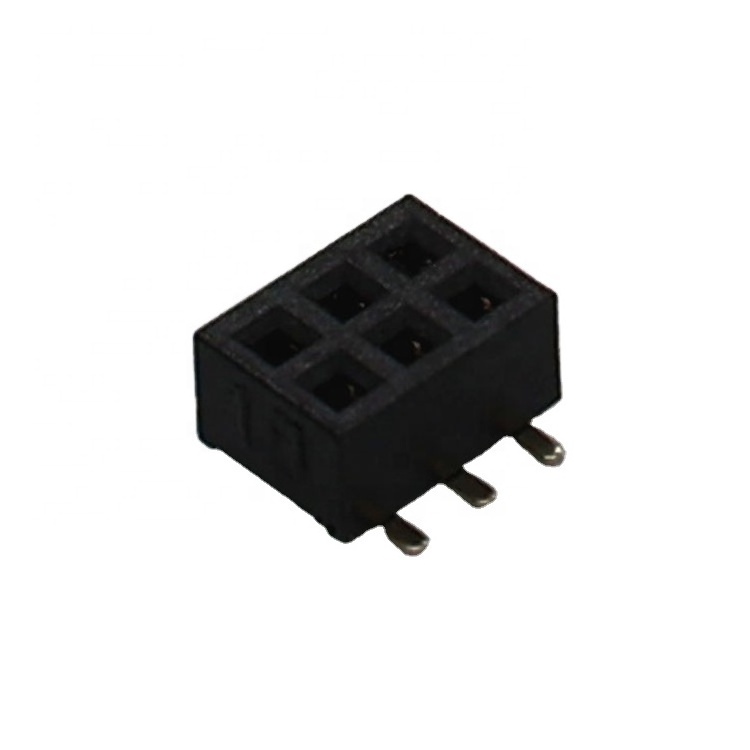

![[CYLCONN] Customization With High Quality,Focused On Connectors for 14 Years 1.27mm Pitch Double Row Female Header Connector](https://cdn.bestsuppliers.com/seo_products_img/dgyuliang/5909d2f44bcb3b6a85315f3d9df0e88f.jpg!/rotate/180)
![[CYLCONN] Customization With High Quality,Focused On Connectors for 14 Years 1.27mm Pitch Double Row Female Header Connector](https://cdn.bestsuppliers.com/seo_products_img/dgyuliang/7f9fe07239173a62b365830a935cc5db.jpg!/rotate/180)
![[CYLCONN] Customization With High Quality,Focused On Connectors for 14 Years 1.27mm Pitch Double Row Female Header Connector](https://cdn.bestsuppliers.com/seo_products_img/dgyuliang/bccd042b09eb3d359d5d654443222112.jpg!/rotate/180)
![[CYLCONN] Customization With High Quality,Focused On Connectors for 14 Years 1.27mm Pitch Double Row Female Header Connector](https://cdn.bestsuppliers.com/seo_products_img/dgyuliang/7d89e57c32e23b73bceb24bd9306111c.jpg!/rotate/180)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYLCONN
-
Model Number:
-
FH127-203-007
-
Accord With Norm:
-
ETA-364C
-
Current Rating:
-
1AMP
-
Insulator Resistance:
-
1000MΩ Min
-
Contact Resistance:
-
20MΩ Max
-
Voltage Resistance:
-
AC 500V
-
Operating Temperature:
-
-40°C To +105°C
-
Metallic Material:
-
Phosphor bronze
-
Metal Treatment:
-
Ni(30~50u")+Au(0.5~0.8u")
-
Insulator Material:
-
PA6T+30%GF UL94V-0
-
Resistance To Soldering Heat:
-
260°C±5°C 10S MAX
Quick Details
-
Type:
-
FH
-
Application:
-
PCB
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CYLCONN
-
Model Number:
-
FH127-203-007
-
Accord With Norm:
-
ETA-364C
-
Current Rating:
-
1AMP
-
Insulator Resistance:
-
1000MΩ Min
-
Contact Resistance:
-
20MΩ Max
-
Voltage Resistance:
-
AC 500V
-
Operating Temperature:
-
-40°C To +105°C
-
Metallic Material:
-
Phosphor bronze
-
Metal Treatment:
-
Ni(30~50u")+Au(0.5~0.8u")
-
Insulator Material:
-
PA6T+30%GF UL94V-0
-
Resistance To Soldering Heat:
-
260°C±5°C 10S MAX
Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
CYLCONN
|
|
Model Number
|
FH1.27*2.0*3.0 2*3P SMT:4.5(0) PA6T Au0.8U" U-shaped with clamping cover
|
|
Type
|
FH
|
|
Application
|
PCB
|
|
Gender
|
Female
|
|
Accord With Norm
|
ETA-364C
|
|
Current Rating
|
1AMP
|
|
Insulator Resistance
|
1000MΩ Min
|
|
Contact Resistance
|
20MΩ Max
|
|
Voltage Resistance
|
AC 500V
|
|
Operating Temperature
|
-40°C To +105°C
|
|
Metallic Material
|
Phosphor bronze
|
|
Metal Treatment
|
Ni(30~50u")+Au(0.5~0.8u")
|
|
Insulator Material
|
PA6T+30%GF UL94V-0
|
|
Resistance To Soldering Heat
|
260°C±5°C 10S MAX
|
Packing & Delivery
|
Selling Units
|
Multiple of 800
|
|
|
|
|
Package size per batch
|
35*30*18cm
|
|
|
|
|
Gross weight per batch
|
3.000 kg
|
|
|
|
|
Package Type
|
Neutral Packing
|
|
|
|
|
Lead Time
|
|
Quantity
|
|
Est.Time (days)
|
||
|
|
|
Less than or equal to 1000PCS
|
|
15
|
||
|
|
|
Less than or equal to 3000PCS
|
|
25
|
||
|
|
|
More than 3000 PCS
|
|
To be negotiated
|
||
