Using high quality laser source, with exquisite beam quality, stable power output, high marking precision, long working life time.
- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air / Water Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Brand Name:
-
SUNWAY
-
Weight (KG):
-
70 KG
-
Marking Area:
-
110x110/200x200/300*300mm (Customizable)
-
Feature:
-
High-accuracy
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
CO2 / UV / Fiber Laser
-
Cooling Mode:
-
Air / Water Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Brand Name:
-
SUNWAY
-
Weight (KG):
-
70 KG
-
Marking Area:
-
110x110/200x200/300*300mm (Customizable)
-
Feature:
-
High-accuracy
Products Description

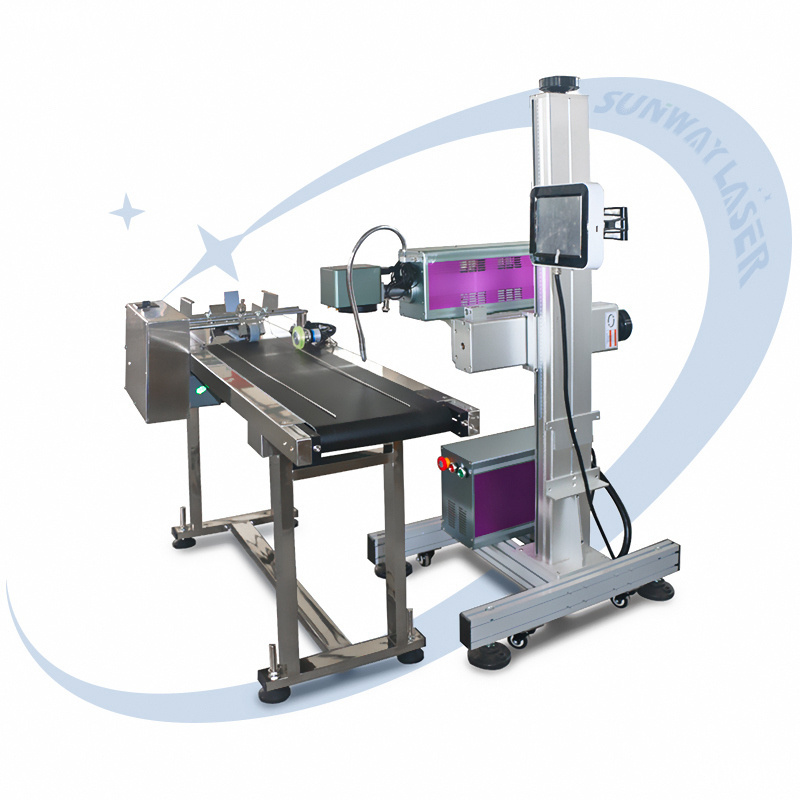

High speed online flying laser marking machine for coding date on bottle, laser printer is suitable for cables, PE pipes, the it is especially suitable for automatic production line of date code or bar code. According to customer's different needs matching fiber, CO2, UV, RF and other models and automatic assembly line work bench to meet customer requirements of flight standards system, to achieve assembly line operations to improve production efficiency.
Using high quality laser source, with exquisite beam quality, stable power output, high marking precision, long working life time.
Galvanometer Scanning Head
Using high speed digital galvanometer, the marking speed is very fast.
Working Platform
Using Omron encoders, the moving speed of the work platform can be transmitted in real time, and the laser marking software can handle marking by itself according to different moving speeds.
Control Switch
Safe and easy to use, control separation, high controllability.
Parameter Details
|
Laser Type
|
Flying Laser Marking Machine
|
|
Laser Source
|
UV / Fiber / RF Laser Source is Optional
|
|
Working Area
|
70*70mm~300*300mm(Customizable)
|
|
Marking Speed
|
7000mm/s
|
|
Working Voltage
|
110V/220V±10%
|
|
Cooling Mode
|
Air / Water Cooling
|
|
Package
|
Plywood
|
Optional Configuration
Rotary Chuck
2D/ 3D Table and Extended Platform
Accessories
Application Industry
Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, gold, sliver, brass, steel, titanium, copper and other materials.
Applicable Industries
1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor.
2. Instrument: Panel Board, Nameplates, Precision equipment.
3.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools.
4. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, Wire Marking.
2. Instrument: Panel Board, Nameplates, Precision equipment.
3.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools.
4. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, Wire Marking.
