Quick Details
-
Brand Name:
-
Rakinda
-
Model Number:
-
RD006
-
Image Sensor:
-
752X480
-
Light Source:
-
White LED
-
Symbologies:
-
1D/2D
-
Reading Distance:
-
10-55mm
-
Scan:
-
360° Full Angle
-
Power Input:
-
9-18VDC
-
Working Current:
-
< 600mA
-
Communication Protocol:
-
Support TCP / UDP / HTTP
-
Device input:
-
12V DC power input
-
Output:
-
Wiegand 26/34 output
Quick Details
-
Special Features:
-
access control device
-
Customized support:
-
Software reengineering, OEM, ODM, Customized logo, Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rakinda
-
Model Number:
-
RD006
-
Image Sensor:
-
752X480
-
Light Source:
-
White LED
-
Symbologies:
-
1D/2D
-
Reading Distance:
-
10-55mm
-
Scan:
-
360° Full Angle
-
Power Input:
-
9-18VDC
-
Working Current:
-
< 600mA
-
Communication Protocol:
-
Support TCP / UDP / HTTP
-
Device input:
-
12V DC power input
-
Output:
-
Wiegand 26/34 output

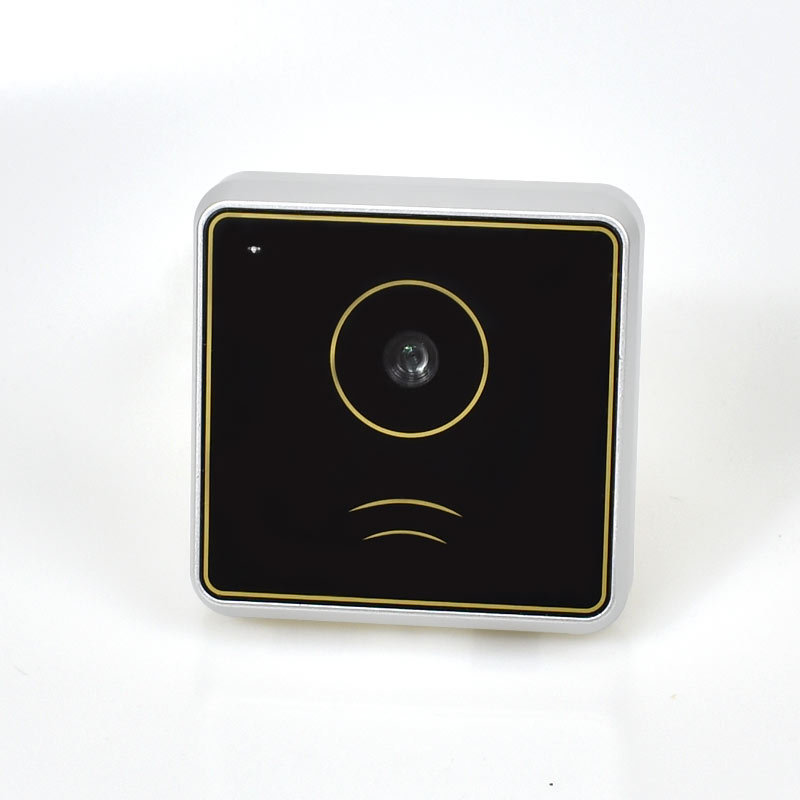

TCP IP Wiegand Access Control Board IC NFC Card Qr Code Elevator Access Control
Product Description
QR Code Access Control Devices Parameters:
| Image Sensor | 752X480 | |
| Light Source | White LED | |
| Symbologies | 2D: PDF417, QR CODE, DATA MATRIX, Support reading screen and printed code | |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. | ||
| Reading Distance | 10-55mm | |
| Scan Angle | 360° Full Angle | |
| Power Input | 9-18VDC | |
| Working Current | < 600mA | |
| Can read like ISO14443Aor ISO14443B card serial number | Such as second-generation ID card, FM1208 CPU card, M1 card (Mifare S50, Mifare S70 IC card), SRIX4K, etc. | |
| Barcode or 2D code input | Wiegand 26/ 34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules | |
| Communication Interface | RJ45 10/100M TCP/IP, Extensible Wireless WIFI | |
| Communication Protocol | Support TCP / UDP / HTTP | |
| Voice output | comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice | |
| Device input | 12V DC power input, 1 line gate input, 1 line exit button input, 1 line alarm input | |
| Equipment output | 2 way 250V/5A relay output, 1 way unlock, 1 way expansion can control door opener, light, water valve, etc. | |
| Wiegand output | Wiegand 26/34 output | |
| Installation size |
RD006: 105mm * 105mm * 25mm (L*W*H) |
|
