Touchkey Electric RFID Proximity Card Hotel Door Lock with LCD screen display

Touchkey Electric RFID Proximity Card Hotel Door Lock with LCD screen display

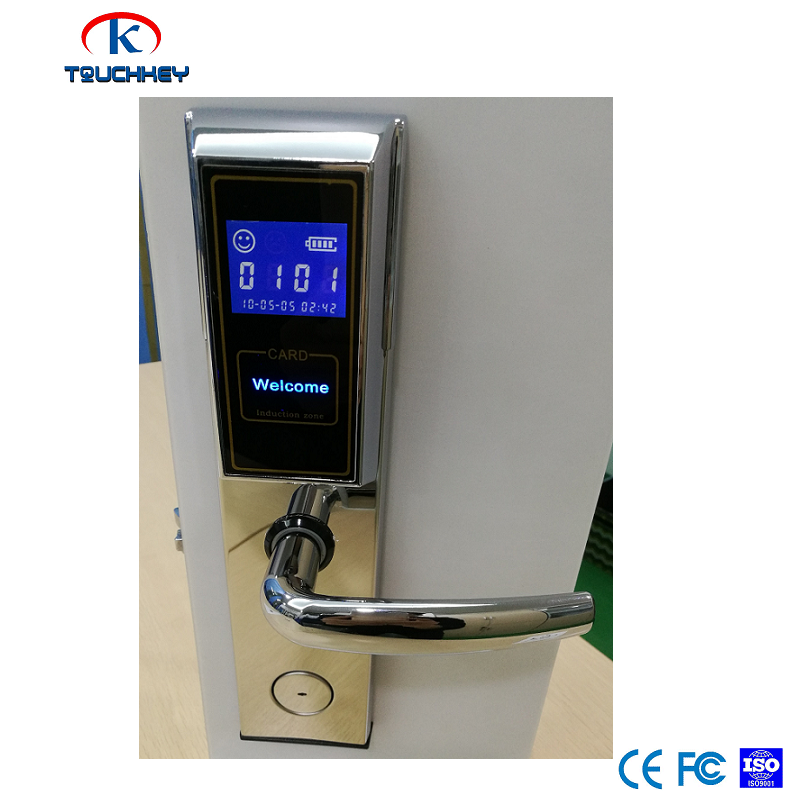

LCD Screen display lock with room number, battery status, date & time, welcome and self-error detective, very informative, durable and attractive

SUPERIOR BENEFITS

1. Modern Ideal Fashion And Reliable Electronic card hotel door lock, LCD Screen display with room number, battery status, date & time, welcome and self-error detective, very informative, durable and attractive

2. Integrated with wireless iMaid system to realize hotel wireless online status functions & Fidelio/Opera

3. One card system to be integrated with lift reader, parking reader, common door, swimming reader, club reader, restuarant reader, POS..etc

4. CE, FCC, SASO, ISO certified

5. Zinc alloy material

6. RF card lock Temic® technology,100,000 times write life for keycard, contactless reading keycard

7. ANSI mortise

8. Free-rotating while locked

9. Powered by AA battery,easy replacement

10. Openings 20,000 times for one new battery pack

11. RF Temic card required

12. Last 992pcs unlocking records can be stored in the chip of door lock, even for the mechanical key openings

13. Low Battery Voltage warning(beep and red light)

14. Passage mode activate by passage card for meeting case

15. Do not disturb(DND)function for hotels:While thumb turn is on from inside,the lock will refuse the keycard outside by show red light

16. Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens

17. 38mm-55mm thickness door

CARD USEAGE

1. Guest card: Issued from reception to open its own room with expiring date

2. Master card: Hold by management or GM or manager to access all rooms of hotel with deadbolt opening

3. Floor card: Hold by clean staff to enter the rooms in one floor.

4. Building card: Hold by manager to enter the rooms in one building

5. Lost card: Used to suspend the lost guest card

6. Emergency card: Enter the all rooms when emergency

SPECIFICATIONS

1. Model: TK-0815

2. Power: (AA)battery x 4pcs

3. Low power alarm voltage: 4.8V

4. Communication: RF 125KHz Temic(with keycard)

5. Card support: RF Temic ®

6. Inductive Distance: 2-5CM

7. Working Tempreature: -30℃~60℃

8. Working Humidity: 15~85%RH

9. Static current: < 10uA

10 Working current: < 150mA

11. Memory: 992 Transactions include Time/Date/Card ID/Card type/Room ID

12. Gross Weight: 3.8KG

13. Package: 10pcs

14. Packing box: Front/Back panel, PCB, mortise, cylinder, keyx2, battery-pack, manual/Strike, screw bag
