Quick Details
-
Range of Spindle Speed(r.p.m):
-
160 - 1360
-
Width of bed (mm):
-
130
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Model Number:
-
HQ500
-
Voltage:
-
220v 50hz 3ph
-
Dimension(L*W*H):
-
1130X580X1100mm
-
Weight (KG):
-
280 KG
-
Swing over bed:
-
420
-
Machine Type:
-
lathe milling machine
-
Product Name:
-
HQ500 milling lathe metal machine
-
Spindle hole:
-
20
-
Range of spindle speed:
-
160-1360
-
Worktable size:
-
200X150
-
Max. end mill:
-
20
-
Spindle travel:
-
85
-
Motor power:
-
1.1
-
Key word:
-
HQ500
Quick Details
-
Max. Length of Workpiece (mm):
-
500
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
28
-
Range of Spindle Speed(r.p.m):
-
160 - 1360
-
Width of bed (mm):
-
130
-
Max. Turned Length (mm):
-
500 mm
-
Spindle Motor Power(kW):
-
0.55
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
C&J
-
Model Number:
-
HQ500
-
Voltage:
-
220v 50hz 3ph
-
Dimension(L*W*H):
-
1130X580X1100mm
-
Weight (KG):
-
280 KG
-
Swing over bed:
-
420
-
Machine Type:
-
lathe milling machine
-
Product Name:
-
HQ500 milling lathe metal machine
-
Spindle hole:
-
20
-
Range of spindle speed:
-
160-1360
-
Worktable size:
-
200X150
-
Max. end mill:
-
20
-
Spindle travel:
-
85
-
Motor power:
-
1.1
-
Key word:
-
HQ500

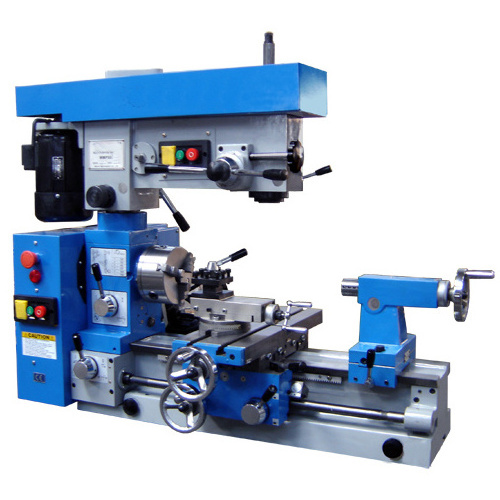

HQ500 Combination Lathe Milling Machine
Features:
1)A kind of combination machines with turning, milling, drilling and threading.
2)Metric or imperial thread cutting
3)Suitable for processing metal, wood and other materials
4)Excellent advantage of various functions, small occupation and economization
5)Widely used in job-shops, car shops technical school, factories and family for machine parts repairing and making, education training, household utensils'' making, etc.
Product main technical specifications :
|
Specifications |
HQ500 |
HQ800 |
|
|
Turning |
Swing over bed |
φ 420mm |
|
|
Distance between centers |
500mm |
800mm |
|
|
Max. longitudinal travel |
440mm |
740mm |
|
|
Max. cross travel |
200mm |
||
|
Taper of spindle |
M. T. 4 |
||
|
Spindle hole |
φ 28mm |
||
|
Step of spindle speed |
7 steps |
||
|
Range of spindle speed |
160-1360RPM |
||
|
Barrel travel |
70mm |
||
|
Taper of center |
M. T. 3 |
||
|
Metric thread range |
0.2-6mm |
||
|
Inch thread range |
4-120T. P. I |
||
|
Longitudinal range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
||
|
Cross range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
||
|
Drilling & Milling |
Max. drilling capacity |
φ 22mm |
|
|
Worktable size (L*W) |
475× 160mm² |
||
|
Max. end mill |
φ 28mm |
||
|
Max. face mill |
φ 80mm |
||
|
Distance between spindle center and column |
285mm |
||
|
Distance between spindle and worktable |
306mm |
||
|
Headstock travel of up and down |
110mm |
||
|
Spindle taper |
M. T. 3 |
||
|
Step of spindle speed |
16 |
||
|
Range of spindle speed |
120-3000r. p. m |
||
|
Swivel degree of headstock |
± 360° |
||
|
Motor |
Motor power |
0.55Kw |
|
|
Shipping data |
Packing size |
1130×580×1100mm(HQ800:1430×580×1100mm) |
|
|
N. weight/G. weight |
245kg/280kg(HQ800:275kg/325kg) |
||
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
