Quick Details
-
Model Number:
-
HC-515C
-
function:
-
wire cutting and stripping
-
wire material:
-
PVC and wire ,glass wire
-
drive way:
-
4 drives
-
productivity(pcs/m):
-
70pcs
-
cutting range:
-
0.1-6mm2
-
stripping length:
-
0.5-30mm
Quick Details
-
Use:
-
wire cutting and stripping machine
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hechang
-
Model Number:
-
HC-515C
-
function:
-
wire cutting and stripping
-
wire material:
-
PVC and wire ,glass wire
-
drive way:
-
4 drives
-
productivity(pcs/m):
-
70pcs
-
cutting range:
-
0.1-6mm2
-
stripping length:
-
0.5-30mm

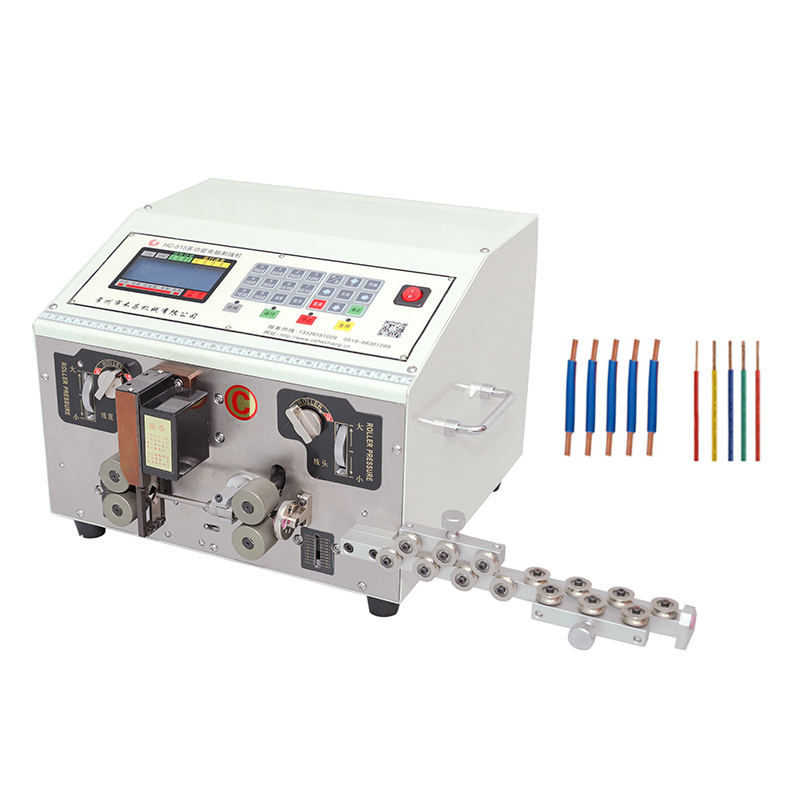

Automatic wire cutting and stripping machine
Machine characteristics:
computer control ,the keystroke ,the high speed shells wire to arbit r arily set to shell le ng th and shells a leng t h,
or the quasi shell length and cut low cost ,through long enduring, don't need to be supported .
under 6 square of electric wire all cutting ,skinning, suited for the wicking transform of autocar electric power craft, high speed ,the nicety drive and shell wire series kit is driven controller with the stepping .alcatel mobile phone flex cable
more characteristics
1.
Exquisite
and compact design, extremely excellent conception, small footprint.
2. Touched computer operation screen make it easy to learn to operate.
3. Changing procedure & Materials rapidly
4. High-efficiency step drive, high-accuracy and fast speed.
5. High performance with low cost.
6. Easy to maintain.
|
Model |
HC-515C ( 6 mm 2 ) |
|
Dimensions |
L418*W358*H308 |
|
Weight |
25KG |
|
Display |
Chinese interface LCD display or English interface |
|
Power |
220V/400W |
|
Cutting Length |
0.5mm-99999.99mm |
|
Stripping Length |
0.5mm-30mm |
|
Intermediate peeling and cutting |
Intermediate cut at fifteen |
|
Cutting Range |
0.1-6mm 2 |
|
Wire Material |
PVC and ferromolybdenum fluorine Long Xian, glass wire |
|
Cutting tolerance |
Within 0.002* Lmm L=cutting length |
|
Max. wire diam |
1-6mm |
|
Driving way |
Four-wheel drive, independent drive box driver |
|
Productivity(pcs/m) |
70PCS |
Sample show :
