Quick Details
-
Warranty:
-
.
-
Model Number:
-
P40DL
-
Place of Origin:
-
Jiangsu, China
-
Cable Length:
-
.
-
Outlet Size:
-
.
-
Power:
-
., Electric
-
Usage:
-
Water
-
Fuel:
-
Diesel
-
Rate flow:
-
40 m3/h
-
Rate suction:
-
8m
-
Self-absorption time:
-
180s/4m
-
Cavitation allowance:
-
4.5m
-
Dimensions:
-
650x470x610mm
-
Net weight:
-
79kg
Quick Details
-
Application:
-
Other, Automotive Industry, Biofuel Industry, Commercial Buildings, District Energy, Industrial Utilities, Pharmaceutical industry
-
Pressure:
-
Low Pressure
-
Voltage:
-
.
-
Warranty:
-
.
-
Model Number:
-
P40DL
-
Place of Origin:
-
Jiangsu, China
-
Cable Length:
-
.
-
Outlet Size:
-
.
-
Power:
-
., Electric
-
Usage:
-
Water
-
Fuel:
-
Diesel
-
Rate flow:
-
40 m3/h
-
Rate suction:
-
8m
-
Self-absorption time:
-
180s/4m
-
Cavitation allowance:
-
4.5m
-
Dimensions:
-
650x470x610mm
-
Net weight:
-
79kg

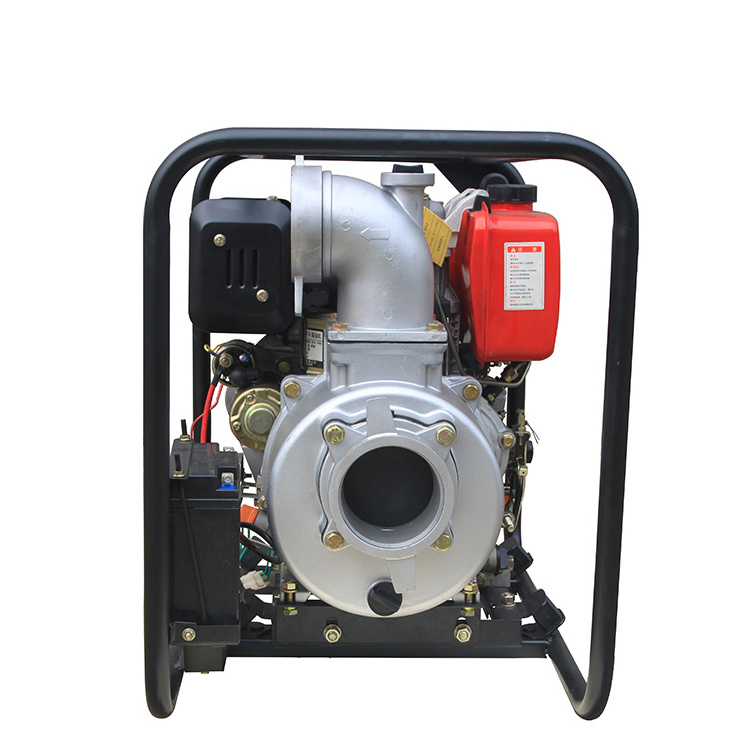

4 inch strong motor diesel water pump
| Model | P20AL | P20BL | P30CL | P40DL |
|
Bore (mm) |
50(2") | 80(3") | 80(3") | 100(4") |
|
Rate flow (m3/h) |
18 | 30 | 35 | 40 |
|
Rated lift (m) |
10 | 15 | 18 | 16 |
|
Rated suction (m) |
8 | 8 | 8 | 8 |
|
Self-absorption time (s/4m) |
80 | 120 | 120 | 180 |
|
Efficiency (%) |
40 | 44 | 44 | 44 |
|
Cavitation allowance (m) |
3.5 | 4 | 4 | 4.5 |
|
Dimensions (L*W*H) (mm) |
510x455x515 | 510X455X515 | 560x455x550 | 650x470x610 |
|
Net weight (kg) |
≤45 | 46-55 | ≤62 | ≤79 |
| Engine | 170FB | 173F | 178F | 186FA |
| Engine type | Vertical Single-cylinder 4-strole Air-cooled Direct injection | Vertical Single-cylinder 4 stroke Air-cooled Direct injection | Vertical Single-cylinder 4 stroke Air-cooled Direct injection | Vertical Single-cylinder 4-stroke Air-cooled Direct injection |
|
Rated output (kw/rpm) |
3.5/3600 | 4.05/3600 | 4.4/3600 | 6.3/3600 |
| Cooling system | Forced air-cooled | Forced air-cooled | Forced air-cooled | Forced air-cooled |
| The output axis direction of rotation | For output to counterclockwise | For output to counterclockwise | For output to counterclockwise | For output to counterclockwise |
| Starting system | Starting hand/electricity starting | Starting hand/electricity starting | Starting hand/electricity starting | Starting hand/Electricity starting |
|
Fuel consumption (g/kw.h) |
≤290 | ≤285 | ≤282.8 | ≤280 |
|
Fuel tank capacity (L) |
2.5 | 2.5 | 3.5 | 5.5 |
Application:
P40DL 9 inch irrigation diesel water pump m ainly apply to the various needs of pumping place.
Feature:
- New design make diesel engine more beautiful
- Fuel-efficient enviromental protection, the comsumption 60% off
- High rate lift over 80m
- Aluminum alloy wheel hub, easy to transport
