Quick Details
-
Applicable Models:
-
For most of cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
OF68
-
Warranty:
-
3 Months
-
Voltage::
-
12V
-
Certification::
-
CE/ROHS
-
Model Number::
-
OF68
-
Applicable Models::
-
For universal cars
-
Support Vehicle years::
-
1997-2007
-
Package::
-
Blister packing with box
-
Place of Origin::
-
Guangdong China
-
Quality:
-
High-Quality
-
MOQ:
-
1pcs
-
Function:
-
supports IMMO/Seat occupancy sensor/Tacho
-
Certification:
-
CE
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
12V
-
Power:
-
Standerd
-
Applicable Models:
-
For most of cars
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/ODM
-
Model Number:
-
OF68
-
Warranty:
-
3 Months
-
Voltage::
-
12V
-
Certification::
-
CE/ROHS
-
Model Number::
-
OF68
-
Applicable Models::
-
For universal cars
-
Support Vehicle years::
-
1997-2007
-
Package::
-
Blister packing with box
-
Place of Origin::
-
Guangdong China
-
Quality:
-
High-Quality
-
MOQ:
-
1pcs
-
Function:
-
supports IMMO/Seat occupancy sensor/Tacho
-
Certification:
-
CE
Universal Car Emulator SQU OF68 ECU Key Programming Machine Support Signal Reset Immo Programs Place the ESL For All Cars
Product Description

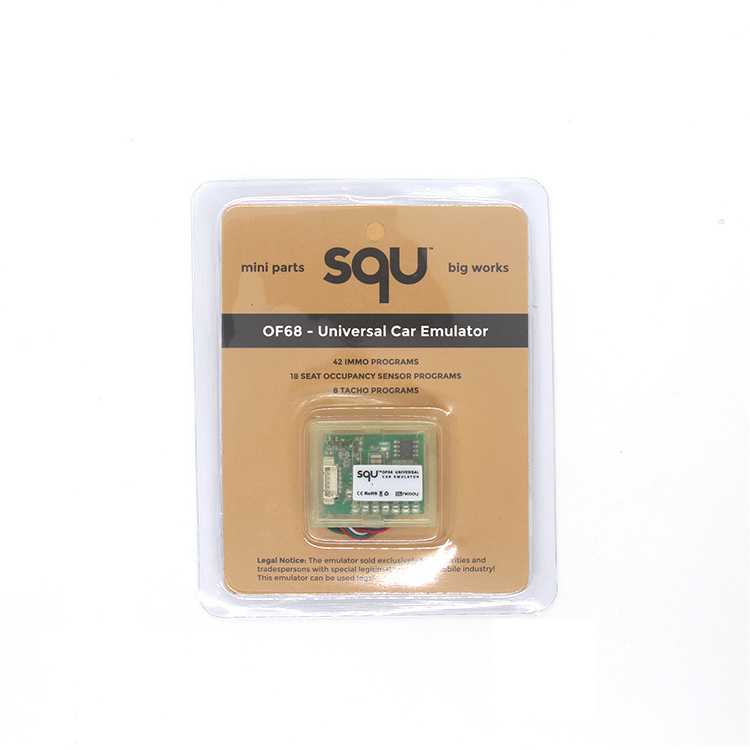

SQU OF68 Universal Car Emulator MINI Parts Big Works
Description:
The SQU OF68 universal car emulator supports IMMO/Seat occupancy sensor/Tacho Programs.
The SQU OF68 emulator includes 68 programs dedicated to hundreds of car models and types of ECU.
the SQU OF68 Universal car emulator allows you to:
remove the original immobiliser signal
replace the original immobiliser signal
replace the ESL, enabling the car to start
check the EZS on the table
check the correctness of the airbag system
start the tacho on the table
You can choose from:
- immo programs
- seat occupancy sensor programs
- tacho programs
The vast majority of programs can be used multiple times.
Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.
* immo programs
1. For V W automatic immo OFF (single use)
2. For V W automatic immo ON (single use)
3. For V W without CAN
4. For V W - Hitachi
5. For V W - Valve Code
6. For V W EDC15 immo OFF (single use)
7. For V W EDC15 immo ON (single use)
8. For V W EDC16 K-LINE immo OFF (single use)
9. For V W EDC16 K-LINE immo ON (single use)
10. For V W EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)
11. For V W EDC16 with CAN 1.9 2.0 TDI immo ON (single use)
12. For V W EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)
13. For V W EDC16 with CAN 2.7 3.0 TDI immo ON (single use)
14. For V W ME7 immo OFF (single use)
15. For V W ME7 immo ON (single use)
16. For B-MW EWS II and EWS III 3.2 systems
17. For C-hrysler
18. For C-itroen, For Peugeot with CAN
19. For D-aewoo 1
20. For D-aewoo 2
21. For F-iat without CAN
22. For F-iat with CAN
23. For F-SO Polonez
24. For H-onda
25. For K-ia Sportage 2.0TD
26. For M-ercedes CR without CAN Infrared
27. For M-ercedes CR1 with CAN WSP
28. For M-ercedes CR1 with CAN EZS
29. For M-ercedes CR1 with CAN infrared
30. For M-ercedes CR2 with CAN WSP
31. For M-ercedes ESL - steering wheel column lock emulator
32. For M-ercedes ESL2 - steering wheel column lock emulator
33. For N-issan NATS 4 and 5 32.
34. For O-pel immo with HC05
35. For R-enault with CAN
36. For R-enault without CAN
37. For R-enault without CAN old ECUs
38. For S-uzuki with X24C01 memory
39. For S-uzuki with OKI memory
40. For S-uzuki 93C56 memory
41. TMS 374 - For C-itroen, for P-eugeot, for R-enault
42. For Y-amaha
* For Seat accupancy sensor programs
1: for B-MW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat
2:for M-ercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat
3:for M-ercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat
4:for M-ercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat
5:for M-ercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat
6:for M-ercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat
7:for M-ercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat
8:for B-MW from 1997 to 2007 , Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat
9:for B-MW from 1997 to 2007 . Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat
10:for M-ini Cooper from 2002 to 2005 without installed child seat
11:for M-ini Cooper from 2002 to 2005 with installed child seat
12:for M-azda: Premacy, MX-5, 626, 323, 6 without installed child seat
13:for M-azda: Premacy, MX-5, 626, 323, 6 with installed child seat
* Tacho Programs
1. for A-udi Q7 and A6
2. for C-itroen C4 Picasso
3. EMF Display
4. for R-enault Kangoo 3 Display
5. for R-enault Scenc II, Espace IV Tacho
6. for R-enault Scenic Full
7. for R-enault Scenic III + Navi
8. for V W Passat B6
|
Package List:
|
|
1 x SQU OF68
|
|
1 x CD Manual
|
