Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KINGPACK
-
Dimension(L*W*H):
-
1580*1200*1900mm
-
Weight:
-
400kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
-
Product name:
-
Small bottle nail polish filling capping machines.
-
Processing Types:
-
Automatic Filling and capping Machine
-
Material:
-
Stainless Steel 304/316
-
Function:
-
Filling capping Forming
-
Usage:
-
nail polish filling and capping
-
Filling material:
-
nail polish
-
Filling speed:
-
30-70pcs/min
-
Control:
-
PLC+ Touch Screen
-
Certification:
-
CE ISO9001
Quick Details
-
Machinery Capacity:
-
12000BPH
-
Packaging Material:
-
Glass
-
Filling Material:
-
Other
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KINGPACK
-
Dimension(L*W*H):
-
1580*1200*1900mm
-
Weight:
-
400kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
-
Product name:
-
Small bottle nail polish filling capping machines.
-
Processing Types:
-
Automatic Filling and capping Machine
-
Material:
-
Stainless Steel 304/316
-
Function:
-
Filling capping Forming
-
Usage:
-
nail polish filling and capping
-
Filling material:
-
nail polish
-
Filling speed:
-
30-70pcs/min
-
Control:
-
PLC+ Touch Screen
-
Certification:
-
CE ISO9001

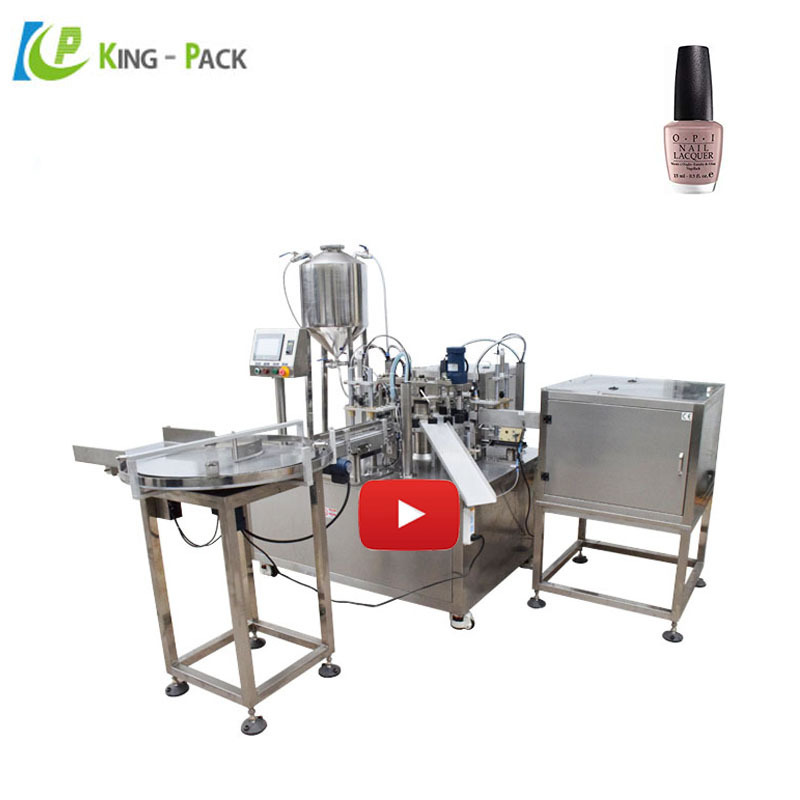

Small bottle nail polish filling capping machines.
Small bottle nail polish filling capping machines.
kPSG-3 is widely used in pharmacy, food, cosmetics industry, such as shampoo, moisturizing water, edible oil, pharmacy liquid. Our machine uses exclusive mechanical hand and the leading system to ensure the cap sit in the right position and realize a full automation.
Technical parameters for Small bottle nail polish filling capping machines.
|
Model |
KPSG-3 |
|
Power Supply |
220V/50Hz/single phase |
|
Power Rate |
2.5KW |
|
Air pressure |
0.2-0.4MPa |
|
Filling Range |
0-150g |
|
Filling nozzle |
1 nozzles |
|
Filling Precision |
≤±1percent |
|
Filling capacity |
40pcs/min |
|
Bottle diameter |
Φ10~(mm) |
|
Dimension |
1400mm×900mm×1600mm |
|
Weight |
380kg |
ss Step 1 . Bottle are put into the mould seat automatically
Ss Step 2. The machine will fill the bottle automatically
St Step 3 . The machine will feed and screw the caps automatically
Step 4 . Finishing cap screwing, the bottle exit from seat automatically
Eatures and Performance of KP SG-3
1. The machine structure is fully mechanical which ensures a high working speed and steady operation, reducing the failure rate greatly.
2. The machine is fully automatic from bottle feeding to finished bottle exit
3. PLC controller. The operation system is more steady
4. Vibrating disks are applied to deliver bottles and caps in order.
5. Specialized motor is used for cap screwing. The thickness is set properly
6. The production capacity can be realized and control led automatically .
7. Speed shall be adjustable by converter and normal speed is around 40pcs/min
8. High quality stainless steel panel
9. Human-machine interface with direct display and control.
10 The automatic mark detecting the bottles. It will fill when detecting the bottle, if no bottle, the material will not flow.
11 Before bottle exit station, there is another detector. When it checked the the cap screwing is finished, the bottle will exit automatically. If the cap-on and cap screwing fails, the machine will stop as a signal to prevent a waste of material and sprinkle.
KPSG-3 also used for super glues filling in plastic bottle and cap closing, the main products are 502 glue,AB glue, white glue and instant glue etc.
