Quick Details
-
Brand Name:
-
HIZN
-
Model Number:
-
PWM 12/24V 30A
-
Work Time (h):
-
24
-
Certificate:
-
CE ISO IEC
-
Warranty:
-
1 YEAR
-
Product name:
-
Solar Charge Controller 30A 12v 24v DC Solar Battery Charger Regulator
-
Certification:
-
CE/RoHS
-
Display:
-
LCD
-
Work time:
-
Continue
-
Feature:
-
High Efficiency Charging Method
-
Control Mode:
-
Intelligent Control Pwm Solar Controller
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Color:
-
Black
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HIZN
-
Model Number:
-
PWM 12/24V 30A
-
Work Time (h):
-
24
-
Certificate:
-
CE ISO IEC
-
Warranty:
-
1 YEAR
-
Product name:
-
Solar Charge Controller 30A 12v 24v DC Solar Battery Charger Regulator
-
Certification:
-
CE/RoHS
-
Display:
-
LCD
-
Work time:
-
Continue
-
Feature:
-
High Efficiency Charging Method
-
Control Mode:
-
Intelligent Control Pwm Solar Controller
-
Protection:
-
Short Circuit Overload Overvolt Overtemp
-
Color:
-
Black
Product Description

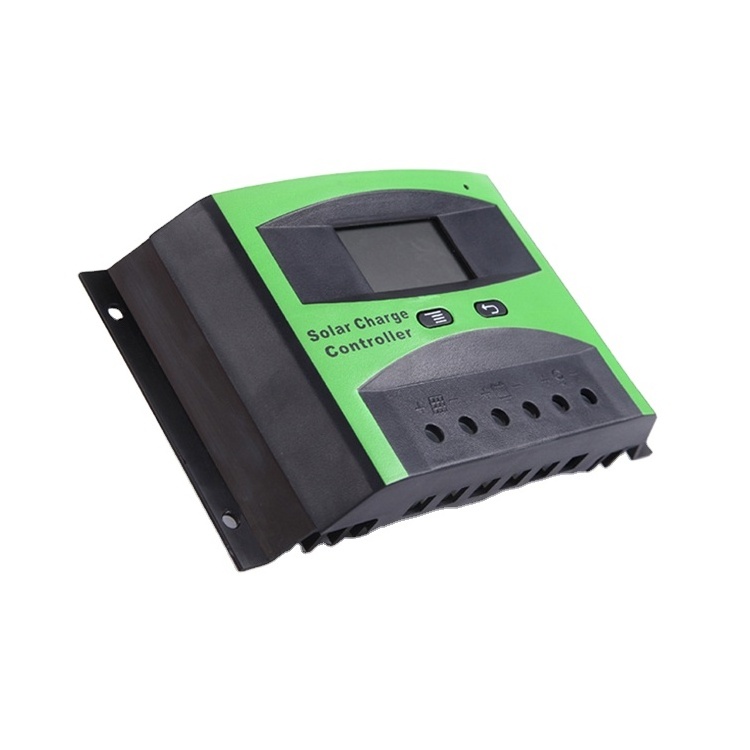

Home Use Solar Charge Controller 30A 12v 24v DC Solar Battery Charger Regulator
| Model | LD2410C | LD2420C | LD2430S | LD2440S | LD2450S |
| System Voltage | 12V/24V DC auto | ||||
| PV Max Input Voltage | 55V | ||||
| Self-consumption | <10mA | ||||
| Max Charging current | 10A | 20A | 30A | 40A | 50A |
| Max Discharging current | 10A | 20A | 30A | 40A | 50A |
| Battery type | Sealed(Default)/Gel/Flood | ||||
| LVD | 11.0V ADJ 9V...12V; x2/24V; x4/48V | ||||
| LVR | 12.6V ADJ 11V...13.5V; x2/24V; x4/48V | ||||
| Float Voltage | 13.8V ADJ 13V... 15V ; x2/24V; M/48V | ||||
| Boost Voltage | 14.4V ADJ 13V...17V; x2/24; x4/48V | ||||
| battery voltage less than 12.6v auto boost 2 hours | |||||
| Battery Over Voltage | 16.5V; x2/24V; x4/48V | ||||
| Reverse Connection Protection | yes | ||||
| Load Over Current Protection | Yes, each 30s auto restart again | ||||
| USB Output | Optional | / | |||
| Charging Type | PWM | ||||
| Charge circuit voltage drop | <=0.25V | ||||
| Discharge circuit voltage drop | <=0.1V | ||||
| Temperature Consumption# | For 12Vsystem:-24mV /°C; x2/24V; x4/48V | ||||
| Relative humidity | ≤95%, N.C. | ||||
| WorkingTemperature | -20°C~+55°C℃(Product can work continuously at full load) | ||||
| LCD temperature range | -20°C~+70°C | ||||
| Waterproof grade | IP32 | ||||
| Mounting hole size | Φ5mm | ||||
| Terminals | 4mm²/12AWG | 16mm² /6AWG | 25mm² /4AWG | ||
| Weight | 310g | 320g | 410g | 680g | 690g |
| Overall dimension(mm) | 168×92×41.5 | 190×108×41.5 | 200.1×127 ×55.3 | ||
Features
♦
Rated voltage: 12/24V Auto
♦
Rated current: 30A
♦
Charge discharge parameters can be set
♦
LCD with display
♦
Support lithium batteries, lead acid batteries, and a variety of battery solutions
