Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
7.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Voltage:
-
380V/220V
-
Power (kW):
-
16
-
Weight (KG):
-
3500
-
Application:
-
wood Stone Mould engraving
-
Control system:
-
Syntec Control System
-
Software:
-
UG, POWERMILL, ARTCAM
-
Structure:
-
Thick Steel Tube Welding
-
Transmission:
-
Linear rail and ball screw
-
Spindle:
-
12kw water Cooling Spindle
-
Working area:
-
1500X2500mm
-
Color:
-
White/Blue/Red
-
Product name:
-
5 axis stone cnc router
Quick Details
-
Working Table Size(mm):
-
1500X250
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
7.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
COMEID
-
Voltage:
-
380V/220V
-
Power (kW):
-
16
-
Weight (KG):
-
3500
-
Application:
-
wood Stone Mould engraving
-
Control system:
-
Syntec Control System
-
Software:
-
UG, POWERMILL, ARTCAM
-
Structure:
-
Thick Steel Tube Welding
-
Transmission:
-
Linear rail and ball screw
-
Spindle:
-
12kw water Cooling Spindle
-
Working area:
-
1500X2500mm
-
Color:
-
White/Blue/Red
-
Product name:
-
5 axis stone cnc router
Products Description

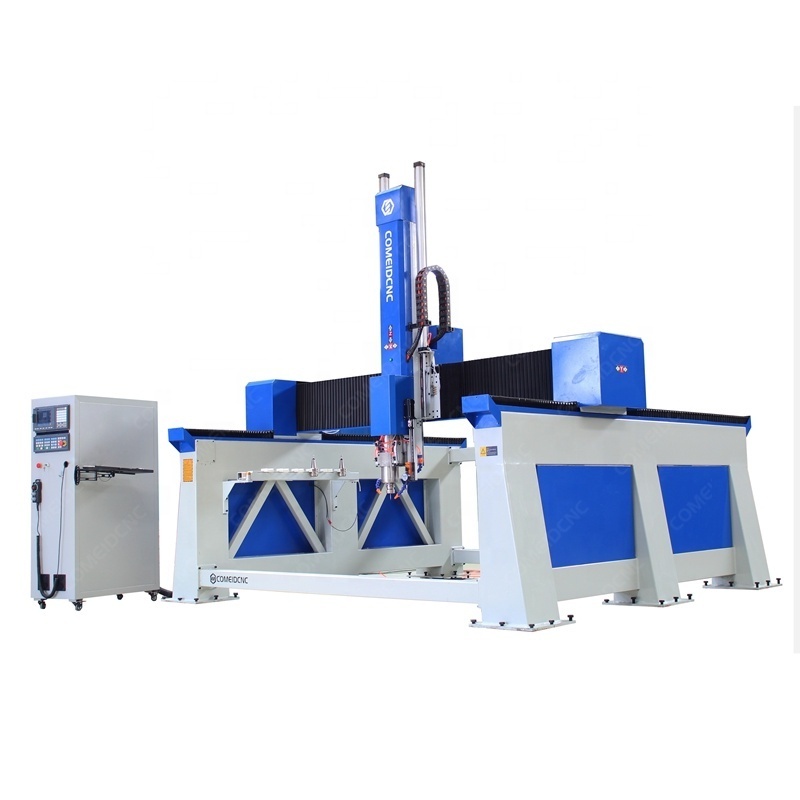

5 Axis Stone CNC Router 3d Machine Cut Engrave Carve Stone Granite for Automatic Car Foam mould
Standard Configuration of 4 Axis ATC CNC Router
1.Working size:1500*2500*1000mm, Heavy duty structure , stronger gantry, used for marble stone milling
2.A Axis: ±360°with rotary device
3.B Axis
±90
° with rotate swing head
4. LNC of SYNTEC control system
5.7.5kw water cooling ATC spindle
6. Automatic tool height adapter help tool position
5. servo driver and motor
7.Taiwan HIWIN linear guide
8.Taiwan TBI ball screw for Z axis
4. LNC of SYNTEC control system
5.7.5kw water cooling ATC spindle
6. Automatic tool height adapter help tool position
5. servo driver and motor
7.Taiwan HIWIN linear guide
8.Taiwan TBI ball screw for Z axis
Product Paramenters
Specification
|
1525 foam CNC router
|
Work Area
|
1500×2500×1000mm
|
Spindle power
|
7.5KW water cooling ATC spindle
|
Max working speed
|
40m/min
|
Positioning Accuracy
|
0.05/2000mm
|
Gears Rails
|
High precision helical gears rails
|
Drive motor
|
1.5KW servo motors and drivers
|
Working Voltage
|
AC380V/3PH/50HZ
|
Command Language
|
G code
|
Spindle speed
|
6000-18000rpm
|
Inverter
|
11KW Fulin inverter
|
Interface
|
USB
|
Tools
|
3.175 / 6 / 12.7 / 16 / 20
|
Control
|
SYNTEC Control System Control System
|
Oil lubricating
|
Electrical oil lubricating system
|
Key word
|
5 axis stone cnc router
|
Figure photos
Details Images
4 Axis Syntec (5 Axis is optional)
The SYNTEC control system has the advantages of fast response speed, stable operation, man-machine interface, convenient keys, quick operation, easy to learn, fast Operation.
ATC 7.5KW water cooling
Adopt high power air-cooling spindle, with strong power for cutting and grooving, with tool height control adapter. which help tool postion
Taiwan Square Linear Rails
High precision, long service time, large contact surface, strong load-carrying capacity. Side rail technology can ensure the operation stability
1.5kw Servo drive motor
High torque make fast speed and work stability. The z-axis adopts planer motor, which can protect the head of the equipment from slipping after power interrupt.
Application
It can cut various in 3D processing, such as Roam column , dragon column , figures ,animals , casper ,wedding foam and so on . Easy to carve and cut on EPS foam block and panel . Building components,European relief carving,cutting. production of foam moulds.
