Quick Details
-
Specification:
-
8inch
-
Length:
-
100m, 50 meter / 100 meter
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO9001
-
Product name:
-
water discharge hose
-
Application:
-
farm irrigation
-
color:
-
as for your demand
-
Size:
-
1" to 12"
-
Cover:
-
100% pvc material
-
Sample:
-
free
-
Working pressure:
-
4 bar, 6bar, 8bar, 10bar
-
Bursting pressure:
-
12bar, 18bar, 24bar, 30bar
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WANFLEX
-
Model Number:
-
Pvc Pipe
-
Specification:
-
8inch
-
Length:
-
100m, 50 meter / 100 meter
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO9001
-
Product name:
-
water discharge hose
-
Application:
-
farm irrigation
-
color:
-
as for your demand
-
Size:
-
1" to 12"
-
Cover:
-
100% pvc material
-
Sample:
-
free
-
Working pressure:
-
4 bar, 6bar, 8bar, 10bar
-
Bursting pressure:
-
12bar, 18bar, 24bar, 30bar
4 inch high pressure 200m in roll pvc drag layflat hose
Features of pvc layflat water irrigation hose
- Use for general purpose water discharge applications - ideal for use as a drip irrigation supply line
- Smooth tube provides low friction loss
- Lays straight with minimal elongation under pressure
- Hose may be punched easily without tearing for drip irrigation application
- All hose coils have PVC cores for easier dispensing
- Hoses coil flat for easy storage
Specification of pvc layflat hose 4bar
| Size Inch | ID MM | Thickness MM | WP BAR | BP BAR | Length m/Roll | Weight KG/M |
| 3/4" | 19 | 1.55 | 10 | 30 | 50 | 0.14 |
| 1" | 25 | 1.8 | 10 | 30 | 50 | 0.2 |
| 1-1/4" | 32 | 1.5 | 10 | 30 | 50 | 0.21 |
| 1-1/2" | 38 | 1.7 | 10 | 30 | 50 | 0.29 |
| 1-1/2" | 40 | 1.9 | 10 | 30 | 50 | 0.3 |
| 1-3/4" | 45 | 2 | 10 | 30 | 50 | 0.35 |
| 2" | 51 | 1.55 | 8 | 24 | 50 | 0.4 |
| 2" | 51 | 1.8 | 10 | 30 | 50 | 0.42 |
| 2-1/2" | 65 | 1.8 | 10 | 30 | 50 | 0.65 |
| 2-1/2" | 65 | 1.9 | 10 | 30 | 50 | 0.7 |
| 3" | 76 | 2 | 8 | 24 | 50 | 0.8 |
| 3" | 76 | 2.55 | 10 | 30 | 50 | 0.85 |
| 4" | 102 | 2.25 | 8 | 24 | 50 | 1 |
| 4" | 102 | 2.7 | 10 | 30 | 50 | 1.2 |
| 5" | 127 | 2.8 | 8 | 24 | 50 | 1.5 |
| 6" | 152 | 3 | 8 | 24 | 50 | 2 |
| 8" | 203 | 3.2 | 6 | 18 | 50 | 3 |
Features of PVC LAYFLAT DISCHARGE HOSE
Irrigation in agriculture and transfer liquid in industry
Once-molded by extruber plastic, Small thickness, light weight, high pressure resistance
Anti-chemical, anti-aging
Suitable for drip irrigation system
Anti-UV

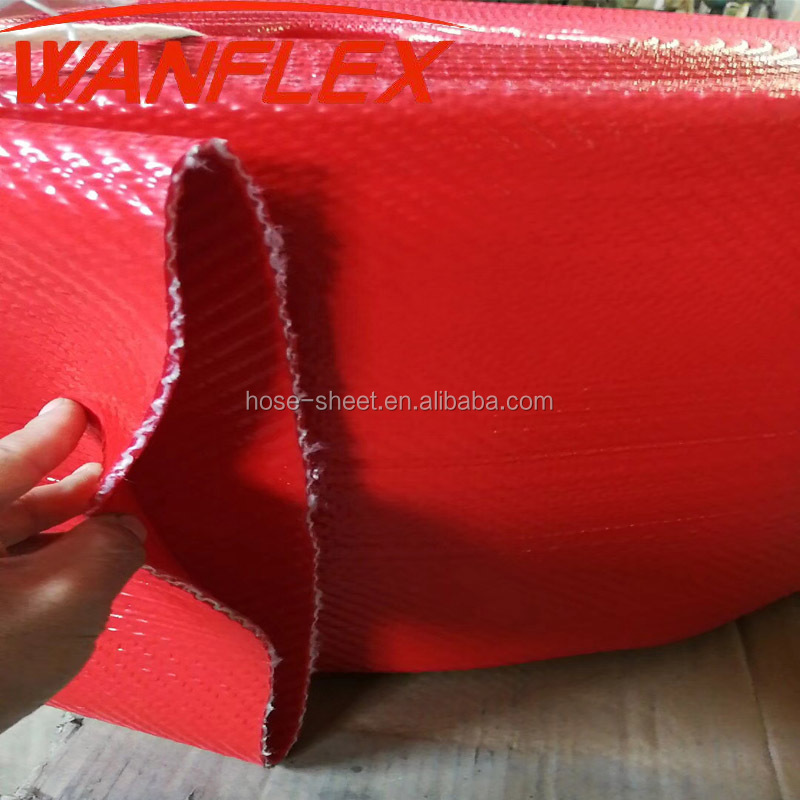

PICTURES OF PVC LAYFLAT HOSE
MORE PVC HOSES WE CAN SUPPLY:
1. PVC suction hose
2. PVC air hose
3. PVC garden hose
4. PVC oil hose
5. PVC spray hose
6. PVC steel wire hose
7. PVC mixed rubber hoses
Production of LAYFLAT HOSE
About us
- 10 + years experience in rubber hose industry.
- Main products: PVC suction and discharge hose, layflat hose, garden hose etc.
- Located in Dongying , China, closed with the Qingdao port and Tianjin Port.
- Mainly Market: European, South America, Russia, UK, Middle East of Asia and Africa.
- Outstanding R&D engineers team.
- OEM available.
- Consistent and well trained team.
- Experienced sales team for different markets.
- ISO9001 approved production process.
