- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
STARWELL
-
input:
-
90-250Vac
-
output:
-
100w / 150w
-
type:
-
wireless remote type
-
application:
-
led light product
-
know switch:
-
yes
-
certificate:
-
CE ROHS
-
power factor:
-
PF>0.98
-
color:
-
black
-
work efficiency:
-
85%
-
weight:
-
250g
Quick Details
-
Type:
-
Remote Control
-
Max. Load Power:
-
150w
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STARWELL
-
input:
-
90-250Vac
-
output:
-
100w / 150w
-
type:
-
wireless remote type
-
application:
-
led light product
-
know switch:
-
yes
-
certificate:
-
CE ROHS
-
power factor:
-
PF>0.98
-
color:
-
black
-
work efficiency:
-
85%
-
weight:
-
250g
PE382RW wireless remote type 100W / 150W led dimmer / triac dimmer Knob switch type
Product Description
| Input Rated Voltage | 100-240VAC |
| Output | see below model list |
| Efficiency | 88% Min |
| Energy star rate | Energy star VI |
| Ripple and noise | <120mV at full road with 20Mhz bandwidth |
| Turn On Delay time | <3S ( AC:110V and full load ) |
| safety protection | over voltage, over current, over temperature, over load protection |
| leakage current | <5mA |
| dc cable length | 1.2-4.0 meters |
| operating temperature | 0°C----+60°C |
| Certificates | CE GS TUV UL CUL FCC ROHS RCM PSE C-TICK KC |
| Application | CCTV camera, LCD/LED monitor, mobile phone, pos machine, medical device, led strip, led light, massage armchair, Motor device etc... |
Photos

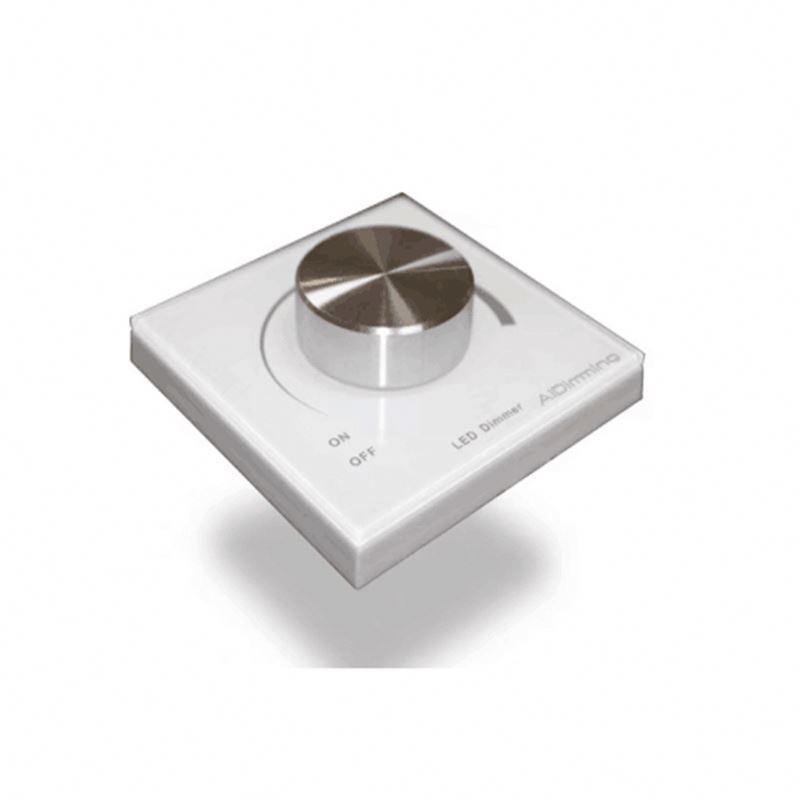

Led Dimmer Switch
-Glass panel
-Full voltage input
-Infrared remote control and wireless remote control
( infrared remote control distance is 8M , the wireless is 30M )
-Four control signal , suitable for all dimming driver signal
-Coincide with ROHS
-Working temperature is -25-45 degree
-Dimming way : 0 / 1-10V /5V PWM / DMX512
-Dimming range : 0-100%
Model list
Dimmable Led Driver
| TRIAC DIMMABLE LED DRIVER | |||||||
| SERIES | MODEL NO. | INPUT VOLT | POWER | OUTPUT | OUTPUT | DIMENSION | PICTURE |
| VOLT | CURRENT | (mm) | |||||
| PE291 | PE291B1220 | PE291B: | 8.4W | 25-42V | 200mA | 52*30*20 |
|
| PE291B0730 | 220V-250V | 7.2W | 9-24V | 300mA | |||
| PE291B0735 | 8.4W | 9-24V | 350mA | ||||
| PE291B0745 | PE291A: | 6.75W | 6-15V | 450mA | |||
| PE291B0750 | AC95-140V | 7.5W | 6-15V | 500mA | |||
| PE291B0760 | 7.2W | 6-12V | 600mA | ||||
| PE291B0770 | 8.4W | 6-12V | 700mA | ||||
| PE291B0670 |
4 DIY scene mode |
5.6W | 3-8V | 700mA | |||
| PE294 | PE294B1220 | PE294B: | 8.4W | 25-42V | 200mA | 98*39*26 |
|
| PE294B1225 | 10.5W | 25-42V | 250mA | ||||
| PE294B1228 | 11.76W | 25-42V | 280mA | ||||
| PE294B1230 | 12.6W | 25-42V | 300mA | ||||
| PE294B1232 | 11.2W | 25-35V | 320mA | ||||
| PE294B0725 | 6W | 9-24V | 250mA | ||||
| PE294B0728 | 6.72W | 9-24V | 280mA | ||||
| PE294B0730 | 7.2W | 9-24V | 300mA | ||||
| PE294B0732 | 7.68W | 9-24V | 320mA | ||||
| PE294B0735 | 8.4W | 9-24V | 350mA | ||||
| PE294B0740 | 220V-250V | 9.6W | 9-24V | 400mA | |||
| PE294B1250 | 12W | 9-24V | 500mA | ||||
| PE294B1255 | 11W | 9-20V | 550mA | ||||
| PE294B1260 | 12W | 9-20V | 600mA | ||||
| PE294B0960 | PE294A: | 9W | 6-15V | 600mA | |||
| PE294B1265 | AC95-140V | 9.75W | 6-15V | 650mA | |||
| PE294B1270 | 10.5W | 6-15V | 700mA | ||||
| PE294B1275 | 11.25W | 6-15V | 750mA | ||||
| PE296 | PE296B1230 | PE296B: | 12.6W | 25-42V | 300mA | 129*44*28 | |
| PE296B0730 | 7.2W | 9-24V | 300mA | ||||
| PE296B0735 | 8.4W | 9-24V | 350mA | ||||
| PE296B1250 | 12W | 9-24V | 500mA | ||||
| PE296B1270 | 10.5W | 6-15V | 700mA | ||||
| PE296B1825 | 17.5W | 43-70V | 250mA | ||||
| PE296B1830 | 18W | 43-60V | 300mA | ||||
| PE296B1835 | 17.5W | 43-50V | 350mA | ||||
| PE296B1435 | 14.7W | 25-42V | 350mA | ||||
| PE296B1840 | 16.8W | 25-42V | 400mA | ||||
| PE296B1842 | 220V-250V | 17.64W | 25-42V | 420mA | |||
| PE296B1845 | 17.1W | 25-38V | 450mA | ||||
| PE296B1850 | 17.5W | 25-35V | 500mA | ||||
| PE296B1660 | 14.4W | 12-24V | 600mA | ||||
| PE296B1665 | PE296A: | 15.6W | 12-24V | 650mA | |||
| PE296B1670 | AC95-140V | 16.8W | 12-24V | 700mA | |||
| PE296B1675 | 18W | 12-24V | 750mA | ||||
| PE296B2455 | 23.1W | 25-42V | 550mA | ||||
| PE296B2480 | 19.2W | 12-24V | 800mA | ||||
| PE296B2490 | 21.6W | 12-24V | 900mA | ||||
| PE299 | PE299B3060 | PE299B: | 25.2W | 25-42V | 600mA | 183x50x32 | |
| PE299B3065 | 27.3W | 25-42V | 650mA | ||||
| PE299B3070 | 29.4W | 25-42V | 700mA | ||||
| PE299B3075 | 28.5W | 25-38V | 750mA | ||||
| PE299B3080 | 25.6W | 25-32V | 800mA | ||||
| PE299B3035 | 24.5W | 43-70V | 350mA | ||||
| PE299B3040 | 28W | 43-70V | 400mA | ||||
| PE299B3045 | 29.25 | 43-65V | 450mA | ||||
| PE299B3050 | 220V-250V | 30W | 43-60V | 500mA | |||
| PE299B36150 | 36W | 12-24V | 1500mA | ||||
| PE299B3685 | 36W | 25-42V | 850mA | ||||
| PE299B3680 | 34.4W | 25-42V | 800mA | ||||
| PE299B36105 | PE299A: | 36W | 25-35V | 1050mA | |||
| PE299B3650 | AC95-140V | 35W | 42-70V | 500mA | |||
| PE297 | PE297B3060 | PE297B: | 25.2W | 25-42V | 600mA | 165x45x334 | |
| PE297B3065 | 27.3W | 25-42V | 650mA | ||||
| PE297B3070 | 29.4W | 25-42V | 700mA | ||||
| PE297B3075 | 28.5W | 25-38V | 750mA | ||||
| PE297B3080 | 25.6W | 25-32V | 800mA | ||||
| PE297B3035 | 220V-250V | 24.5W | 43-70V | 350mA | |||
| PE297B3040 | 28W | 43-70V | 400mA | ||||
| PE297B3045 | PE297A: | 29.25 | 43-65V | 450mA | |||
| PE297B3050 | AC95-140V | 30W | 43-60V | 500mA | |||
| PE298 | PE298B50200 | PE298B: | 48W | 12-24V | 2000mA | 195*44*34 | |
| PE298B50180 | 43.2W | 12-24V | 1800mA | ||||
| PE298B50165 | 39.6W | 12-24V | 1650mA | ||||
| PE298B50150 | 36W | 12-24V | 1500mA | ||||
| PE298B50135 | 56.7W | 25-42V | 1350mA | ||||
| PE298B50120 | 50.4W | 25-42V | 1200mA | ||||
| PE298B50105 | 44.1W | 25-42V | 1050mA | ||||
| PE298B5090 | 37.8W | 25-42V | 900mA | ||||
| PE298B5085 | 35.7W | 25-42V | 850mA | ||||
| PE298B5080 | 220V-250V | 33.6W | 25-42V | 800mA | |||
| PE298B5070 | 49W | 43-70V | 700mA | ||||
| PE298B5065 | 45.5W | 43-70V | 650mA | ||||
| PE298B5060 | 42W | 43-70V | 600mA | ||||
| PE298B5055 | PE298A: | 38.5W | 43-70V | 550mA | |||
| PE298B5050 | AC95-140V | 35W | 43-70V | 500mA | |||
| PE251 | PE251B1220 | 8.4W | 25-42V | 200mA | 202*18*10 | ||
| PE251B1225 | PE251A: | 10.5W | 25-42V | 250mA | |||
| PE251B1230 | AC95-140V | 12.6W | 25-42V | 300mA | |||
| PE252 | PE252B2030 | PE252B: | 19.5W | 42-65V | 300mA | 250*18*10 | |
| PE252B2024 | 20W | 50-84V | 240mA | ||||
| PE252B2050 | 21W | 25-42V | 500mA | ||||
| PE252B2048 | 20.16W | 25-42V | 480mA | ||||
| PE252B2045 | 220V-250V | 18.9W | 25-42V | 450mA | |||
| PE252B2040 | 16.8W | 25-42V | 400mA | ||||
| PE252B2038 | PE252A: | 16W | 25-42V | 380mA | |||
| PE252B2035 | AC95-140V | 14.7W | 25-42V | 350mA | |||
| PE253 | PE253B3070 | PE253B: | 29.4W | 25-42V | 700mA | 300*18*10 | |
| PE253B3065 | 27.3W | 25-42V | 650mA | ||||
| PE253B3060 | PE253A: | 25.2W | 25-42V | 600mA | |||
| PE253B3055 | AC95-140V | 23.1W | 25-42V | 550mA | |||
| PE235 | PE235B0730 | PE235B: | 6.7W | 12-24V | 280mA | 40*18*18 | |
| PE235B0530 | 5.4W | 9-18V | 300mA | ||||
| PE235B0530 | PE235A: | 5W | 8-12V | 420mA | |||
| PE235B0670 | AC95-140V | 5.6W | 2.5-8V | 700mA | |||
| PE232 | PE232B0670 | 5.6W | 2.5-8V | 700mA | 50*37(22)*18 | ||
| PE232B0835 | 8.4W | 12-24V | 350mA | ||||
| PE232B1230 | PE232A: | 12.6W | 25-42V | 300mA | |||
| PE232B1270 | AC95-140V | 10.5W | 6-15V | 700mA | |||
| PE210 | PE210B0610 | 220V-250V | 5W | 50V | 103mA | 25*17 | |
| PE210B0611 | 5W | 43V | 115mA | ||||
| PE210B0613 | 5W | 37V | 130mA | ||||
| PE210B0614 | 5W | 33V | 142mA | ||||
| PE210B0616 | 5W | 30V | 160mA | ||||
| (For GU10) | PE210B0619 | 5W | 24V | 192mA | |||
| PE210B0622 | 5W | 19V |
222mA
|
||||
