Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
SANGSolar
-
Model Number:
-
STP405S-C54/Umhb
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
1722 *1134 * 30 mm
-
Solar Cell:
-
N-type Monocrystalline silicon 182 mm
-
No. of Cells:
-
108 (6 * 18)
-
Dimensions:
-
1722 * 1134 * 30 mm
-
Weight:
-
21.0 kgs (46.3 lbs.)
-
Junction Box:
-
IP68 rated (3 bypass diodes )
-
Operating Module Temperature:
-
-40 °C to +85 °C
-
Maximum System Voltage:
-
1500 V DC (IEC)
-
Connectors:
-
MC4 EVO2, Cable01S, STP-XC4
-
Certificate:
-
CE TUV IEC
Quick Details
-
Cell size:
-
182mm
-
Type:
-
Half Cell, Bifacial, All Black, N-TYPE
-
Panel Efficiency:
-
21.0
-
Warranty:
-
25 years
-
Brand Name:
-
SANGSolar
-
Model Number:
-
STP405S-C54/Umhb
-
Place of Origin:
-
Beijing, China
-
Panel Dimensions:
-
1722 *1134 * 30 mm
-
Solar Cell:
-
N-type Monocrystalline silicon 182 mm
-
No. of Cells:
-
108 (6 * 18)
-
Dimensions:
-
1722 * 1134 * 30 mm
-
Weight:
-
21.0 kgs (46.3 lbs.)
-
Junction Box:
-
IP68 rated (3 bypass diodes )
-
Operating Module Temperature:
-
-40 °C to +85 °C
-
Maximum System Voltage:
-
1500 V DC (IEC)
-
Connectors:
-
MC4 EVO2, Cable01S, STP-XC4
-
Certificate:
-
CE TUV IEC
Product Description
|
Solar Cell
|
Monocrystalline silicon 182 mm
|
|
No. of Cells
|
108 (6 × 18)
|
|
Dimensions
|
1722 × 1134 × 30 mm (67.8 × 44.6 × 1.2 inches)
|
|
Weight
|
21.0 kgs (46.3 lbs.)
|
|
Front Glass
|
3.2 mm (0.126 inches) fully tempered glass
|
|
Output Cables
|
4.0 mm2 ,
(-) 350 mm (+) 160 mm in length or customized length |
|
Junction Box
|
IP68 rated
(3 bypass diodes) |
|
Operating Module Temperature
|
-40 °C to +85 °C
|
|
Maximum System Voltage
|
1500 V DC (IEC)
|
|
Connectors
|
MC4 EVO2, Cable01S, STP-XC4
|
|
Maximum Series Fuse Rating
|
25 A
|
|
Power Tolerance
|
0/+5 W
|
|
Refer. Bifaciality Factor
|
(80 ± 5)%
|
|
Packing Configuration
|
Packaging box dimensions (mm) : 1755×1120×1255
Packaging box weight (kg) : 894 36 Pieces per pallet 936 Pieces per container / 40’ HC |
|
Module Type
|
STP430S-C54/Nmhm+
|
STP420S-C54/Nmhm+
|
STP415S-C54/Nmhm+
|
STP410S-C54/Nmhm+
|
|
Testing Condition
|
STC
|
STC
|
STC
|
STC
|
|
Maximum Power (Pmax/W)
|
430
|
420
|
415
|
410
|
|
Optimum Operating Voltage (Vmp/V)
|
32.33
|
31.96
|
31.78
|
31.59
|
|
Optimum Operating Current (Imp/A)
|
13.30
|
13.14
|
13.06
|
12.98
|
|
Open Circuit Voltage (Voc/V)
|
38.72
|
38.46
|
38.33
|
38.20
|
|
Short Circuit Current (Isc/A)
|
14.25
|
14.09
|
14.01
|
13.93
|
|
Module Efficiency (%)
|
22.0
|
21.5
|
21.3
|
21.0
|

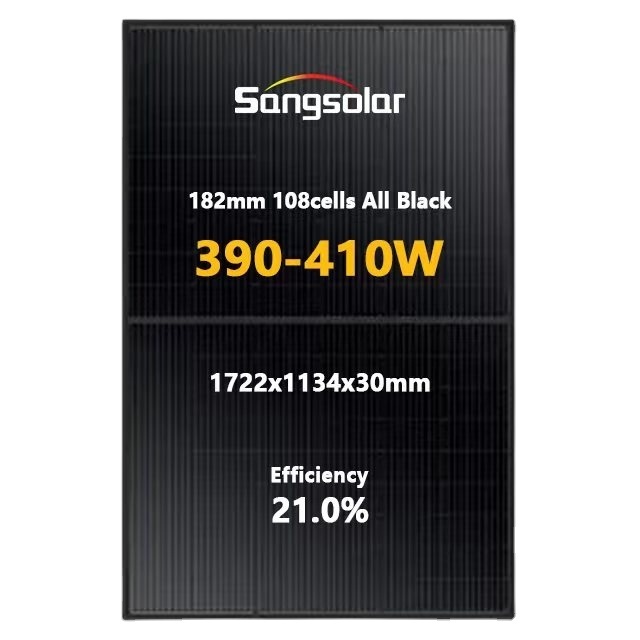

SANGSolar
STP405S-C54/Umhm
Monocrystalline silicon 182 mm
