Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANDA
-
Model Number:
-
HDC-41f3
-
Product name:
-
PV Connector
-
Rated Voltage:
-
1500V DC
-
Rated Current:
-
41A for 4mm² and 55A for 6mm²
-
Rated Impulse Voltage:
-
16KV
-
Waterproof Level:
-
IP68(1M,1H)
-
Temperature Range:
-
-40 ~+85
-
Flamming Level:
-
UL94-V0
-
Plastic Material:
-
PA(f1)
-
PIN Material:
-
Copper Alloy, Sn Plating
-
Applicable Wire Diameter:
-
2.5mm²- 6mm²
Quick Details
-
Type:
-
PV DC
-
Application:
-
Power
-
Gender:
-
Male and Female Cable end 2pcs
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HANDA
-
Model Number:
-
HDC-41f3
-
Product name:
-
PV Connector
-
Rated Voltage:
-
1500V DC
-
Rated Current:
-
41A for 4mm² and 55A for 6mm²
-
Rated Impulse Voltage:
-
16KV
-
Waterproof Level:
-
IP68(1M,1H)
-
Temperature Range:
-
-40 ~+85
-
Flamming Level:
-
UL94-V0
-
Plastic Material:
-
PA(f1)
-
PIN Material:
-
Copper Alloy, Sn Plating
-
Applicable Wire Diameter:
-
2.5mm²- 6mm²
Product Description
|
Product specification
|
|
|
|
Brand
|
Handa or customized logo
|
|
|
Product Name
|
PV DC Solar Connector
|
|
|
Model
|
HDC-41f3
|
|
|
Dimension
|
50*18.6mm
|
|
|
PIN and Pole
|
Cable / Panel1 PIN Male and female
|
|
|
Rated Volatge
|
1500V DC
|
|
|
Rated Impulse Voltage
|
16KV
|
|
|
Rated Current
|
41A for 4mm² and 55A for 6mm²
|
|
|
Unlock Mode
|
Tool Unlock or Non-tool Unlock（pls contact us and choose unlock mode）
|
|
|
Waterproof Rate
|
IP68 （1m, 1h）
|
|
|
Temperature Range
|
-40℃-+85℃
|
|
|
Flamming Level
|
UL94-V0
|
|
|
Plastic Material
|
PA(f1)
|
|
|
PIN Material
|
Copper Alloy, Sn Plating
|
|
|
Sealing Ring Material
|
Silicone Rubber
|
|
Why Choose US
· Simple on-site Processing and Installation
· Quality safety provided by BASF Nylon Material (High Voltage Resistance Material
)
· Mutiple Plugging & Unplugging Cycles
· Accomodates PV Cable with Different Insulation Diamaters
· High Voltage and Current Carrying Capacity
· TUV and ROHS approved
· Competitive Price
· IP68 Strongly Waterproof Level

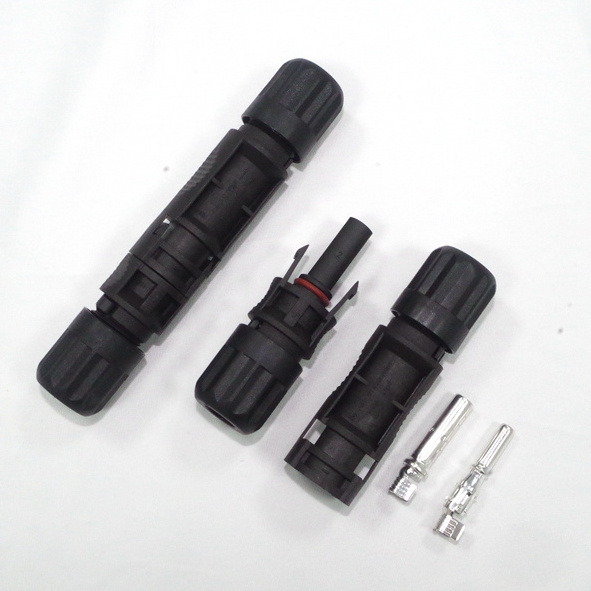

Detailed Images
Connector Screw Locking and Tool unlock Wrench(
Optional Components
)
Application Diagram
TUV Approved 1500V Photovoltaic Solar Cable Connectors Based on Amphenol H4 PV Connector
Main Application： Industrial PV System &
Household PV System.
Installation Instruction
Company Introduction
Jiangsu Handa Power Technology Co., Ltd,
as a comprehensive high-tech enterprise of new energy connectors which integrated the R&D, laboratory testing, manufacturing, logistics and one-stop service, is committed to providing the reliable high quality connectors for both global and domestic markets.
Handa R&D team which accumulated rich technical knowledge and superior capabilities, has successfully designed and developed 10 series,25main models connectors, covering diverse applications: Photovoltaic Solar DC, AC, Inverters, Energy Storage, EMS, BMS, Communication industry etc.
Besides standard-ed models, Handa R&D team is always pleasured and has mature experience to provide connectors' customization service worldwide.
Based in Suzhou City,Jiangsu China, Handa owns three modern production workshops includes connectors' manufacturing, wire harnesses' processing and connectors' automatic assembly. Handa applied various different high-tech manufacturing equipment especially the full automatic assembly equipment and testing equipment better ensured the high quality connectors and fast delivery requirement.
Contributing to the development of the leading zero-carbon and energy-saving technology, Handa dedicates to becoming the world's leading provider of connectors & solutions for green new energy industry, and commits to delivering secure, easy to install and cost-effective connectors to residential, commercial, industrial partners and users all over the world.
Our Services & Strength
1) Good Quality with TUV, ROHS,UL
2) Highly Competitive Prices
3) Flexible MOQ
4) On-time Delivery
5) Smooth Communication
6) Technical Support
7) OEM&ODM Service
Product Application
Handa Connectors' Application
Handa Power Technology dedicates to becoming the world's leading provider of connectors & solutions for green new energy industry, and commits to delivering secure, easy to install and cost-effective connectors to residential, commercial, industrial partners and users all over the world. Handa connectors
covers diverse applications: Photovoltaic Solar DC, AC, Inverters, Energy Storage, EMS, BMS, Communication industry etc.
Below photos is some applied equipment using HD connectors from our clients side.
HD Customers
Handa power takes “Focusing on on-site application,solving pain points for customers” as R&D concept, and dares to innovate and break through.
Up to now, HD has already
achieved good long-term cooperation with many well-known new energy enterprises, such as Arctech Solar, GOODWE, SOLINTEG, AISWEI, Sunways, Afore, RENAC, SOFAR, SAJ, WEIHENG, KOYOE, RCT Power, HYPONTECH, HYXIPOWER, THINKPOWER, Midea, JDENERGY, STEALTH Energy, SOLAX, FOX, EN Plus, BULL etc.
Welcome to contact us for starting our double-win collaboration.
