Quick Details
-
Gross Vehicle Weight:
-
25000
-
Place of Origin:
-
Hubei,China
-
Brand Name:
-
CL
-
Weight (KG):
-
25000 kg
-
Product name:
-
Hook Lift Garbage Truck
-
Truck type:
-
Roll off; hook lifting
-
Chassis Brand:
-
Dongfeng Foton Forland Howo Faw
-
Name:
-
Hooklift Garbage Truck Arm Roll Truck
-
Keyword:
-
Hook Lifting Garbge Truck
-
Driving Type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
After-sales Service Provided:
-
Engineers
-
Usage:
-
Urban Garbage Cleaning
-
other name:
-
roll off garbage truck
-
Loading capacity:
-
5--20 Tons
Quick Details
-
Marketing Type:
-
New Product 2023
-
Engine Capacity:
-
6700
-
Size:
-
9250X2550X3330
-
Gross Vehicle Weight:
-
25000
-
Place of Origin:
-
Hubei,China
-
Brand Name:
-
CL
-
Weight (KG):
-
25000 kg
-
Product name:
-
Hook Lift Garbage Truck
-
Truck type:
-
Roll off; hook lifting
-
Chassis Brand:
-
Dongfeng Foton Forland Howo Faw
-
Name:
-
Hooklift Garbage Truck Arm Roll Truck
-
Keyword:
-
Hook Lifting Garbge Truck
-
Driving Type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
After-sales Service Provided:
-
Engineers
-
Usage:
-
Urban Garbage Cleaning
-
other name:
-
roll off garbage truck
-
Loading capacity:
-
5--20 Tons
hook lift garbage trucks,such as Dongfeng brand,Howo brand,Isuzu brand,Foton brand,Howo brand,Shacman brand,etc.
The truck chassis type mainly use 4x2 type,6x4 type,8x4 type,also have 4x4 abd 6x6 all wheel drive type.
The 4x2 type can make 1-16 ton load capacity hook lift garbage trucks;
The 6x4 type can make 20-30ton hook lift/Roll on roll off garbage trucks;
The Detailed parameters of Hook lift arm garbage truck
|
C omplete Vehicle |
|
|
Vehicle |
hook lift garbage truck |
|
Overall dimensions ( mm ) |
7050 x 2470 x 305 0 |
|
Garbage container (m3) |
12 |
|
G ross V ehice W eight ( kg ) |
Appro × 15995 |
|
N et weight ( kg ) |
Appro × 7020 |
|
Loading |
Appro × 8780 |
|
Wheel base ( mm ) |
3950 |
|
Max speed (km/h) |
90 |
|
Truck Chassi s |
|
|
Cabin |
Flat top cabin, a sleeper, power steering, air conditioner , 3 passengers, left hand drive |
|
Drive form |
4 × 2 |
|
Engine |
Brand : CUMMINS Model : B190 33 Engine power : 190 hp Fuel t ype : diesel Displacement : 5.9 L Emission standard : Euro 3 |
|
T ransmission |
6 forward,1 rear, manual operated |
|
Tire model |
10.00R20 |
|
No.of tires |
6+1pcS |
|
Superstructure |
|
|
Ch aracteristic |

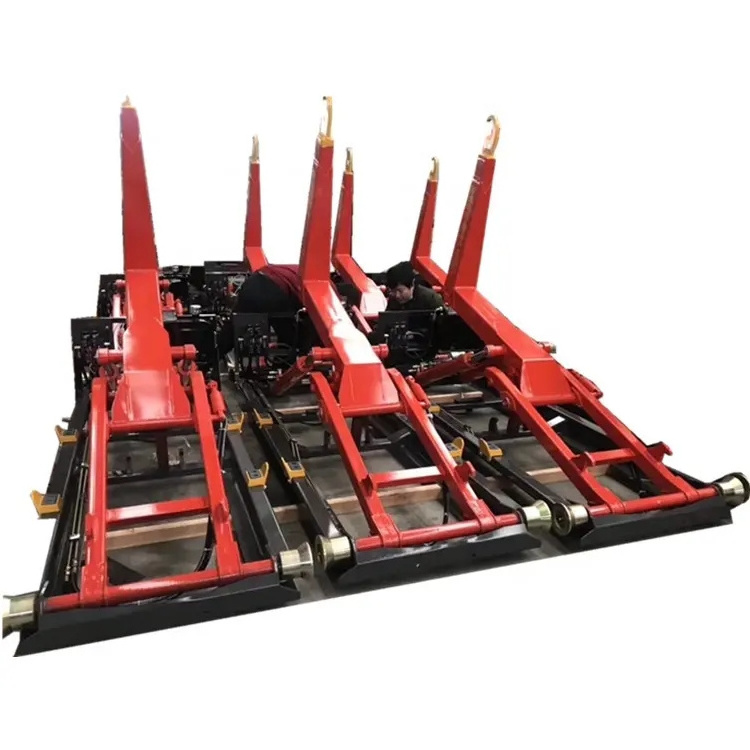

1. Hydraulic hook lift arm. 2. Imported hydraulic sealing ring.
3.
Operation valve on the truck side.
4. Equipped with pulley. 5. Equipped with 5m3 garbage container |
