Quick Details
-
Model Number:
-
PU Sandwich Panel
-
Application:
-
Building
-
Color:
-
RAL Color
-
Usage:
-
Construction Insulation
-
Product name:
-
Insulated Sandwich Panels
Quick Details
-
Type:
-
PIR Sandwich Panels
-
Place of Origin:
-
United Arab Emirates
-
Brand Name:
-
DANA STEEL
-
Model Number:
-
PU Sandwich Panel
-
Application:
-
Building
-
Color:
-
RAL Color
-
Usage:
-
Construction Insulation
-
Product name:
-
Insulated Sandwich Panels
Product Description
-
Sandwich Panels are used majorly in facades , partition wall ceilings, architectural claddings , Container constructions, machine coverings, warehouses, power plants and other industrial and commercial places. The panels are also used in cold rooms and food industry construction.

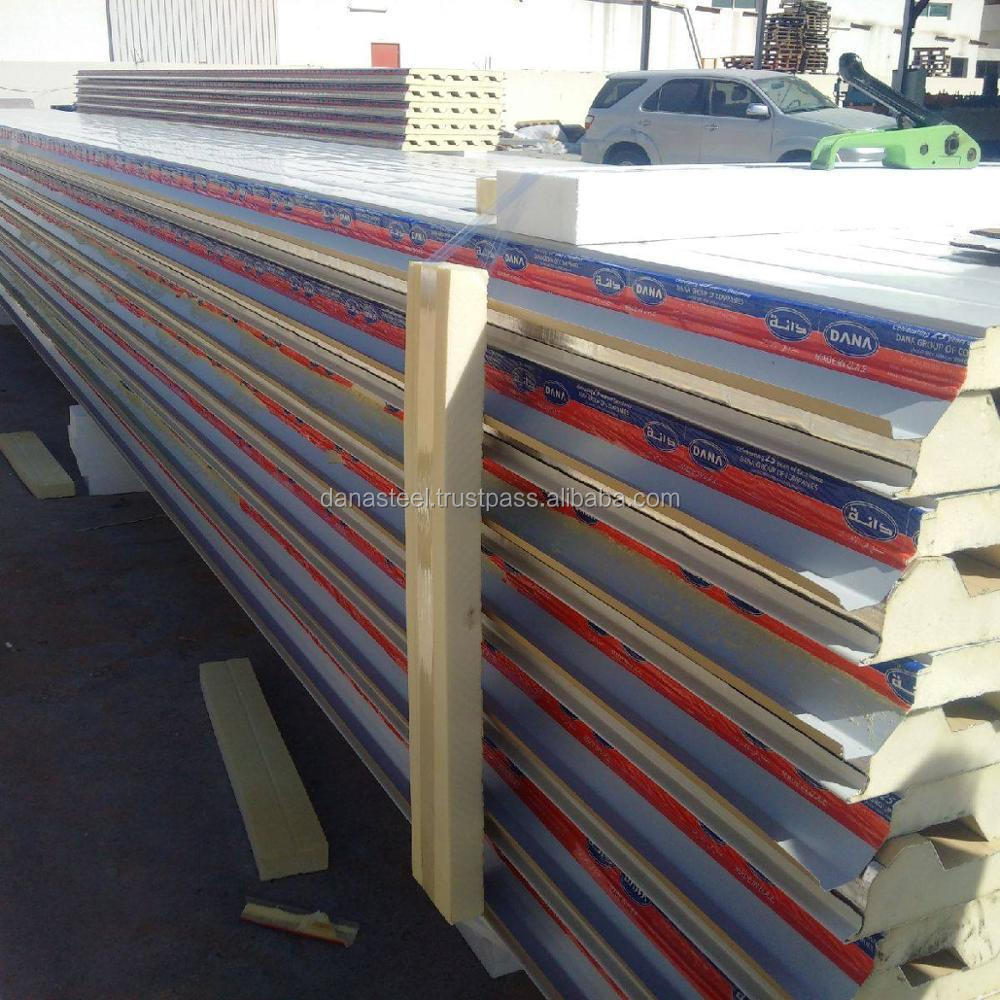

Sandwich Panels consists of two outer metal sheets (steel , aluminum or other) with stabilizing core of insulation sandwiched between them.The outer surface of the sheet can be flat(microribbed/plain), corrugated or any specific design.Insulating material can be Polyurethane(PUF), Poly-isocyanurate(PIR), Rock Wool . These panels are manufactured inside DANA STEEL Factory in U.A.E by injecting Polyurethane/PIR/Rockwool insulation core. Our Fully automated Continuous laminator is more than 150 mtrs long and is capable of manufacturing upto 10,000 sq mtrs in one shift of production. We are headquartered in DUBAI (UAE) and have manufacturing facilities in Dubai,Ajman & UAQ. We have ISO 9001:2008 & DCL Certification for our products.
SPECIFICATIONS
Highlights of DANA Insulated Sandwich Panels
| Surface Finish Types | Top & Bottom Sheet Material Types | Insulation Types |
|---|---|---|
| Plain | Pre-Painted Aluminum | Polyurethane(PUR) |
| Corrugated | Mill Finish Aluminum | Polyisocyanurate(PIR) |
| Pre-Painted Galvanized Steel | Mineral Wool/ Rockwool | |
| Mill Finish Galvanized Steel | Expanded Polystyrene(EPS) | |
| Pre Painted AluZinc | ||
| Mill Finish AluZinc |
Specification Of Top & Bottom Profile Sheet Material
| Aluminum | Grade A3105 H 16 in mill finish or pre-painted |
| Galvanized Iron sheets ( GI) | ASTM A653 or other equivalent standards like JIS 3302 , EN 10326 /10327 , IS 277 with Zinc Coating G60 -180gms/m2 or G90 – 275 gms/m2 |
| Galvanized Iron sheets ( GI) | ASTM A792 with Coating AZ60-AZ180 |
Combinations of Top Skin and Liner
| Top Skin | Liner |
|---|---|
| GI Mill Finish | GI Mill Finish |
| GI Polyester Coated | GI Polyester Coated |
| GI PVDF Coated | GI PVDF Coated |
| Aluminum Mill Finish | Aluminum Mill Finish |
| Aluminum Polyester Coated | Aluminum Polyester Coated |
| Aluminum PVDF Coated | Aluminum PVDF Coated |
| Alu-Zinc alloy coated steel mill finish | Alu-Zinc alloy coated steel mill finish |
| Alu-Zinc alloy coated steel PVDF coated | Alu-Zinc alloy coated steel PVDF coated |
| Aluminum Foil 0.05mm thick |
