Die cut polyimide tape refers to polyimide tape that has been cut into a specific shape or size using a die cutting process. The die cutting process involves using a specialized machine to cut the tape into a precise shape or size based on a custom design.
Die cut polyimide tape can be used for a variety of applications, such as masking during soldering, insulating electrical components, or protecting sensitive electronic devices during manufacturing or shipping. The tape can be cut into various shapes and sizes, including circles, rectangles, and custom shapes based on specific design requirements.
- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Polyimide film
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
7Z-TAPE
-
Model Number:
-
Refer to Model List Below
-
Thickness:
-
0.03 | 0.05 | 0.06 | 0.08 | 0.1 | Custom
-
Product name:
-
Die Cut Polyimide Silicone Tape
-
Color:
-
Amber
-
Tape Thickness (mm):
-
0.03 | 0.05 | 0.06 | 0.08 | 0.1 | Custom
-
Liner Thickness (mm):
-
0.05 | 0.075 | Custom
-
Shape:
-
Discs | Dots | Custom
-
Core Diameter (mm):
-
25 | 32 | 38 | 76 | Custom
-
Packing Term:
-
Label | Logo | Opp Bag | Custom
-
Temperature:
-
280°C
-
Sample:
-
Free Offer
Quick Details
-
Adhesive:
-
Silicone
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Water Activated, Hot Melt
-
Design Printing:
-
No printing
-
Material:
-
Polyimide film
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
7Z-TAPE
-
Model Number:
-
Refer to Model List Below
-
Thickness:
-
0.03 | 0.05 | 0.06 | 0.08 | 0.1 | Custom
-
Product name:
-
Die Cut Polyimide Silicone Tape
-
Color:
-
Amber
-
Tape Thickness (mm):
-
0.03 | 0.05 | 0.06 | 0.08 | 0.1 | Custom
-
Liner Thickness (mm):
-
0.05 | 0.075 | Custom
-
Shape:
-
Discs | Dots | Custom
-
Core Diameter (mm):
-
25 | 32 | 38 | 76 | Custom
-
Packing Term:
-
Label | Logo | Opp Bag | Custom
-
Temperature:
-
280°C
-
Sample:
-
Free Offer
Products Description

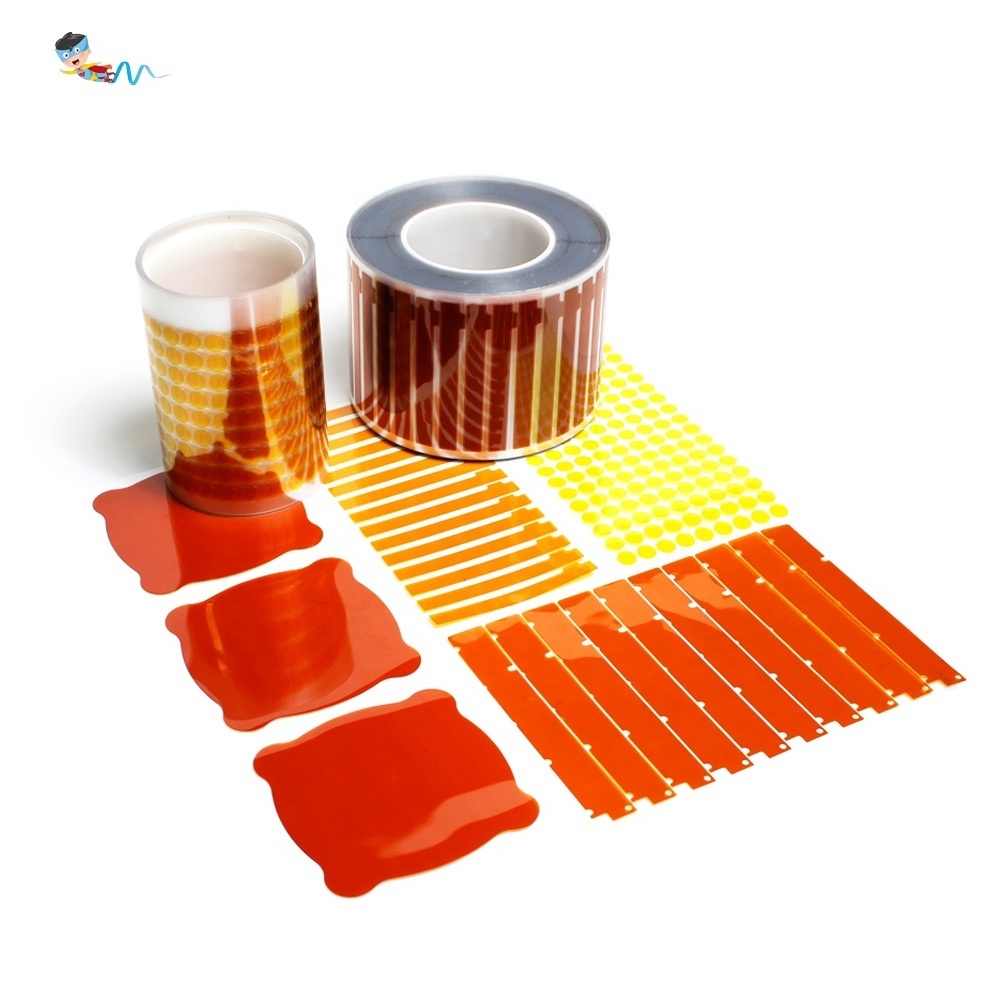

Die Cut Polyimide Silicone Tape
Product Model List:
|
Product Number
|
Tape Thickness:
|
Liner Thickness:
|
Adhesion to Steel
|
|||
|
QZ-12530KP/D
|
30 microns
|
75 microns
|
3.5 N/25mm
|
|||
|
QZ-2540KP/D
|
40 microns
|
75 microns
|
3.5 N/25mm
|
|||
|
QZ-2550KP/D
|
50 microns
|
75 microns
|
4.5 N/25mm
|
|||
|
QZ-2555KP/D
|
55 microns
|
75 microns
|
5.5 N/25mm
|
|||
|
QZ-2560KP/D
|
60 microns
|
75 microns
|
6 N/25mm
|
|||
|
QZ-2570KP/D
|
70 microns
|
75 microns
|
7 N/25mm
|
|||
|
QZ-5070KP/D
|
70 microns
|
75 microns
|
4 N/25mm
|
|||
|
QZ-5080KP/D
|
80 microns
|
75 microns
|
5.5 N/25mm
|
|||
|
QZ-50100KP/D
|
100 microns
|
75 microns
|
8 N/25mm
|
|||
|
QZ-75100KP/D
|
100 microns
|
75 microns
|
4.5 N/25mm
|
|||
|
QZ-75120KP/D
|
120 microns
|
75 microns
|
8 N/25mm
|
|||
|
QZ-100150KP/D
|
150 microns
|
75 microns
|
8 N/25mm
|
|||
|
QZ-125180KP/D
|
180 microns
|
75 microns
|
8 N/25mm
|
|||
|
Note: Custom thickness available.
|
|
|
|
|||
Product Application:
1. Electrical insulation: It is often used as an electrical insulation material due to its excellent dielectric properties and
high temperature resistance. It can be used to wrap wires, cables, transformers, and other electrical components.
2. 3D printing: It is used as a bed surface for 3D printing because it provides a smooth and stable printing surface that resists high temperatures.
3. Aerospace and aviation: It is used in the aerospace and aviation industries to protect wires and cables from heat, abrasion, and other environmental factors.
4. Automotive industry: It is used in the automotive industry for engine harness wrapping, brake hose wrapping, and other high temperature applications.
5. Masking: It is used as a masking tape in various industries, especially in electronic manufacturing, where it is used to mask gold fingers on circuit boards during soldering.
6. Thermal insulation: It is used as a thermal insulation material in high temperature applications such as furnace doors, heat exchangers, lithium battery, and boilers.
7. Powder coating: It is used as a high temperature masking tape, especially in powder coating industry.
high temperature resistance. It can be used to wrap wires, cables, transformers, and other electrical components.
2. 3D printing: It is used as a bed surface for 3D printing because it provides a smooth and stable printing surface that resists high temperatures.
3. Aerospace and aviation: It is used in the aerospace and aviation industries to protect wires and cables from heat, abrasion, and other environmental factors.
4. Automotive industry: It is used in the automotive industry for engine harness wrapping, brake hose wrapping, and other high temperature applications.
5. Masking: It is used as a masking tape in various industries, especially in electronic manufacturing, where it is used to mask gold fingers on circuit boards during soldering.
6. Thermal insulation: It is used as a thermal insulation material in high temperature applications such as furnace doors, heat exchangers, lithium battery, and boilers.
7. Powder coating: It is used as a high temperature masking tape, especially in powder coating industry.
Why Choose Us:
- First of all, we are a professional manufacturer, with 16 years of polyimide tape production experience, has a huge advantage in price and quality.
- Secondly, we have a large number of customers and fast transportation channels to ensure the timeliness of customers receiving goods.
- Finally, we can provide quality assurance services for each customer, if there is a quality problem, free return.
- Secondly, we have a large number of customers and fast transportation channels to ensure the timeliness of customers receiving goods.
- Finally, we can provide quality assurance services for each customer, if there is a quality problem, free return.
