Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dailymag Motor
-
Model Number:
-
ST1000
-
Torque:
-
Up to 100N.m
-
Stroke:
-
50-750mm Customized
-
Max.Thrust/Push:
-
1000N
-
Voltage:
-
12/24/36/48V
-
Free Load Speed:
-
5~30mm/s
-
Rrated Load Speed:
-
10mm/s
-
Duty Cycle:
-
20%
-
Ambient temperature:
-
-20℃ ~ +65℃
-
Standard protection class:
-
IP54/IP65
-
Certification:
-
CE,ISO9001
-
Life Time:
-
Fifty thousand times
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
50W
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dailymag Motor
-
Model Number:
-
ST1000
-
Torque:
-
Up to 100N.m
-
Stroke:
-
50-750mm Customized
-
Max.Thrust/Push:
-
1000N
-
Voltage:
-
12/24/36/48V
-
Free Load Speed:
-
5~30mm/s
-
Rrated Load Speed:
-
10mm/s
-
Duty Cycle:
-
20%
-
Ambient temperature:
-
-20℃ ~ +65℃
-
Standard protection class:
-
IP54/IP65
-
Certification:
-
CE,ISO9001
-
Life Time:
-
Fifty thousand times

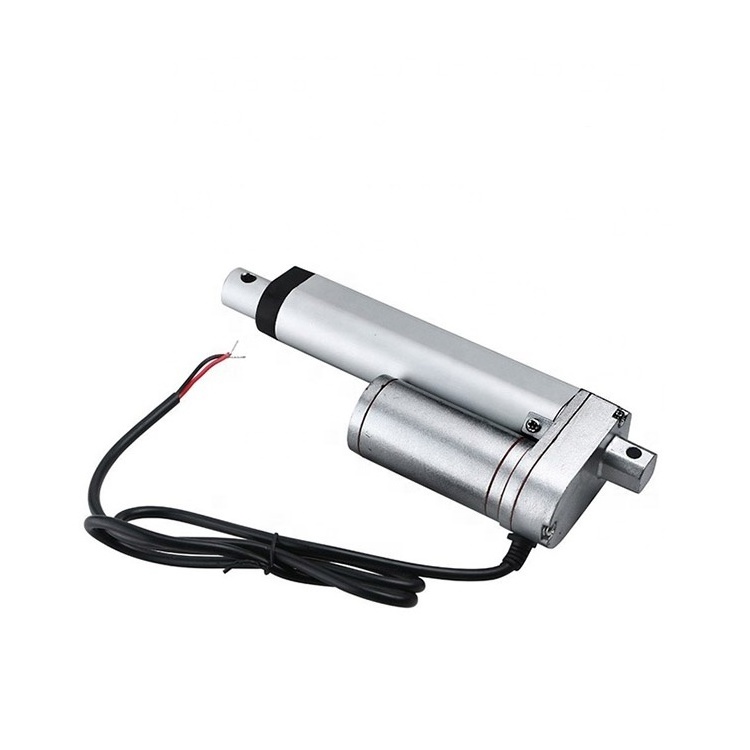

1000N Mini Linear Actuator Electric IP65 12V 24V DC Motor With Remote Control
S T Series Electric Linear Actuators ( Electric Linear Actuator) are all-purpose products. They have smart design and excellent performance. They are widely used in furniture, home beds, office tables, massage equipment, sporting equipments and so on.
Specification of ST Series Electric Linear Actuator:
Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive
Standard Stroke of Electric Linear Actuator: 100/150/200/250/300/350/400/500/600/700/800/900mm, special stroke are available according to customer' requirement.
Max. Thrust of ST Electric Linear Actuator: 150N,250N,500N,750N, 1000N, 1500N
Free Load Speed of Electric Linear Actuator: 4mm/s ~40 mm/s
Rated Load Speed of Electric Linear Actuator: 5mm/s
Duty cycle of Electric Linear Actuator: 10%
Ambient temperature -26°C (-14.8F) to +65°C (149F)
Standard protection class of Electric Linear Actuator: IP 66
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<53(A); The inspection method is in accordance with DS/EN ISO3746 while Electric Linear Actuator is unloaded.
CE Certificated Electric Linear Actuator
Standard Stroke of ST Electric Linear Actuator and Min. Install Dimension
|
Standard Stroke (mm) |
50 |
100 |
150 |
200 |
300 |
350 |
400 |
|
|
Min. Install Dimension (mm) |
ST-750N |
158 |
208 |
258 |
308 |
408 |
458 |
508 |
|
ST-1000N |
158 |
208 |
258 |
308 |
408 |
458 |
508 |
|
|
ST-1500N |
158 |
208 |
258 |
308 |
408 |
458 |
508 |
|
|
Working Principle |
The Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion – that is push and pull movements. The electric linear actuator consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more linear actuators, a control box and a control device to operate the actuator. |
|
Advantage |
The linear actuators are finding their way into a wide range of applications. When something needs to be raised, lowered, pushed, pulled, rotated, positioned, lifted, shifted or moved, the Amplified Piezoelectric Actuator makes an irrefutable case for electrification. These actuators operate more simply, efficiently, cleanly and quietly . And with fewer components to act up or wear out, the linear actuators offer exceptional durability . Despite being perceived as costing more, the actuator actually nets out to be more cost-efficient because of savings on several fronts.
|
|
Application |
The Linear Actuators are used in many different industries, making both work and private life easier for a lot of people. The actuators are ideal for hospital beds, patient lifts, dental chairs, bath lifts and wheelchairs. Office desks, industrial workstations, kitchens, construction and machinery, ventilation and farming solutions,marine applicationssolar tracking systems.
|
