Quick Details
-
Brand Name:
-
YIZE
-
After-sales Service Provided:
-
Overseas service center available, Online support
-
Name:
-
separator centrifuge poultry chicken manure dryer dewatering machine
-
Usage:
-
cow chicken horse manure and dung dewater and dryer
-
Area:
-
Cow farm , chicken farm ,pig farm
-
Cleaning frequency::
-
Each 20-30 days
-
Structure of cow manure dewater::
-
Screw press type
-
Screw dewater:
-
pig manure , cow dung ,chicken manure
-
cow manure:
-
extruder dehydration
-
Keywords::
-
screw press cow manure dewater machine
-
Product name:
-
Solid and liquid separator centrifuge
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Automatic
-
Use:
-
manure processing
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YIZE
-
After-sales Service Provided:
-
Overseas service center available, Online support
-
Name:
-
separator centrifuge poultry chicken manure dryer dewatering machine
-
Usage:
-
cow chicken horse manure and dung dewater and dryer
-
Area:
-
Cow farm , chicken farm ,pig farm
-
Cleaning frequency::
-
Each 20-30 days
-
Structure of cow manure dewater::
-
Screw press type
-
Screw dewater:
-
pig manure , cow dung ,chicken manure
-
cow manure:
-
extruder dehydration
-
Keywords::
-
screw press cow manure dewater machine
-
Product name:
-
Solid and liquid separator centrifuge
-
Certification:
-
ISO9001
Product Description

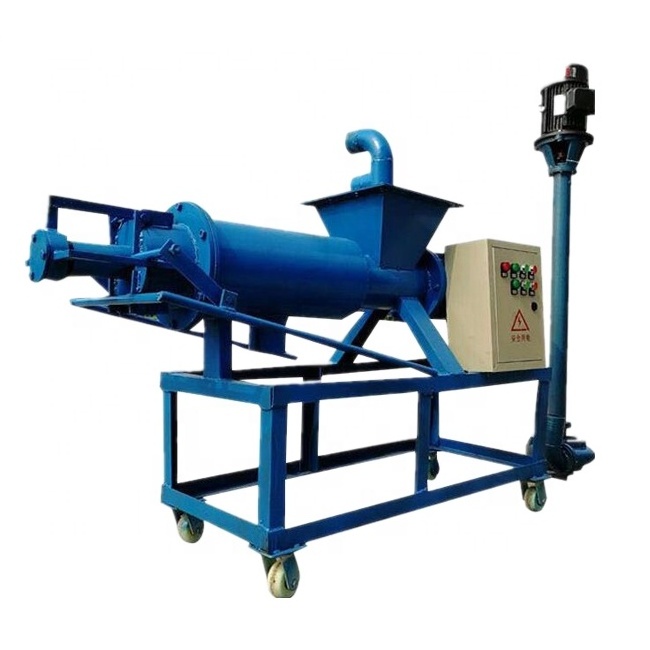

Brief introduction of
Solid and liquid separator centrifuge poultry chicken manure dryer dewatering machine
:
(1)The machine
use the mud pump to send the original fecal water to the main machine, through the screw shaft placed in the screen, the main motor drives the reducer, so that the screw shaft rotation, extruding solid substances, liquid through the screen from the lower part of the body of the fecal processing application: liquid outlet out. Along with the original dung water enters the main engine continuously, thus realizes the batch production; The dried feces separated by dehydration are nearly odorless and sticky, which can be used as fertilizer. The dried excrement separated by dehydration is mixed into the grass chaff and fully stirred.
(2)The main characteristics of fecal treatment with bacteria
:
fermentation, granulation can be made into compound organic fertilizer; At the same time can be made into grain feed, good fertilizer for fish; For flowers/special cash crops.Fertilization can transform soil organic matter; Additional economic benefits can be obtained from the sale of organic fertilizers.
Machine technical parameters:
|
Model
|
YZFB-180
|
YZFB-200
|
YZFB-300
|
YZFB-400
|
|||
|
Main Power
|
4kw
|
5.5kw
|
7.5kw
|
7.5kw
|
|||
|
Pump power
|
3kw
|
4kw
|
4kw
|
4kw
|
|||
|
Inlet and outlet ports
|
90mm
|
90mm
|
90mm
|
90mm
|
|||
|
Drainage outlet
|
75mm
|
75mm
|
110mm
|
110mm
|
|||
|
Raw material
|
Seamless welding SS304
|
|
|
|
|||
|
Capacity
|
8-10m³
|
10-13m³
|
25-30m³
|
25-30m³
|
|||
|
Machine size
|
1900*600*1450mm
|
1900*600*1450mm
|
2100*600*1450mm
|
2100*600*1450mm
|
|||
|
Machine weight
|
350kg
|
400kg
|
750kg
|
750kg
|
|||
Detailed Images
Machine structure:
Enlarged pictures of various parts of the machine:
Swing arm type outlet:
Effectively is the network to identify and mouth dry material accumulation phenomenon, to speed up the material speed
Funnel type Feed port:
Funnel feeding port design, convenient feeding, save time and effort
Pure copper moto
r:
Choose gb pure copper high power motor, stable operation, strong power, durable.
Rusted steel:
screenAutomatic separation can be done quicklySolid-liquid separation, good efficiency separated out can also facilitate transportationDo the liquid fertilizer
Electrical cycle control:
regulationThis machine does not need manual duty, after starting up can be unmanned operation!
Removable Universal wheel:
Movable roller design, easy to use, anytime and anywhere
Machine working pictures :
More modles for your choose:
Wide range of applications:
Suitable for livestock manure slaughtering sewage pulp pharmaceutical residues crop residuesSeparation of high concentration organic sewage such as biogas residue from food residue and wine trough.
