Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
According to the machine
-
Weight:
-
KG
-
Product name:
-
Trommel Vibrating Screen Equipment Aggregate Mesh for Vibrating Screen
-
Screen size(mm):
-
6000*2400
-
Screen mesh(mm):
-
5-80
-
Maximum Feed size(mm):
-
100
-
Layer(s):
-
4
-
Capacity(t/h):
-
100-500
-
Usage:
-
Fine Particles Screening
-
Vibrating Frequency(r/min):
-
700-900
-
Double Swing(mm):
-
5-9
-
Installation:
-
Engineer Guide
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JXSC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
According to the machine
-
Weight:
-
KG
-
Product name:
-
Trommel Vibrating Screen Equipment Aggregate Mesh for Vibrating Screen
-
Screen size(mm):
-
6000*2400
-
Screen mesh(mm):
-
5-80
-
Maximum Feed size(mm):
-
100
-
Layer(s):
-
4
-
Capacity(t/h):
-
100-500
-
Usage:
-
Fine Particles Screening
-
Vibrating Frequency(r/min):
-
700-900
-
Double Swing(mm):
-
5-9
-
Installation:
-
Engineer Guide

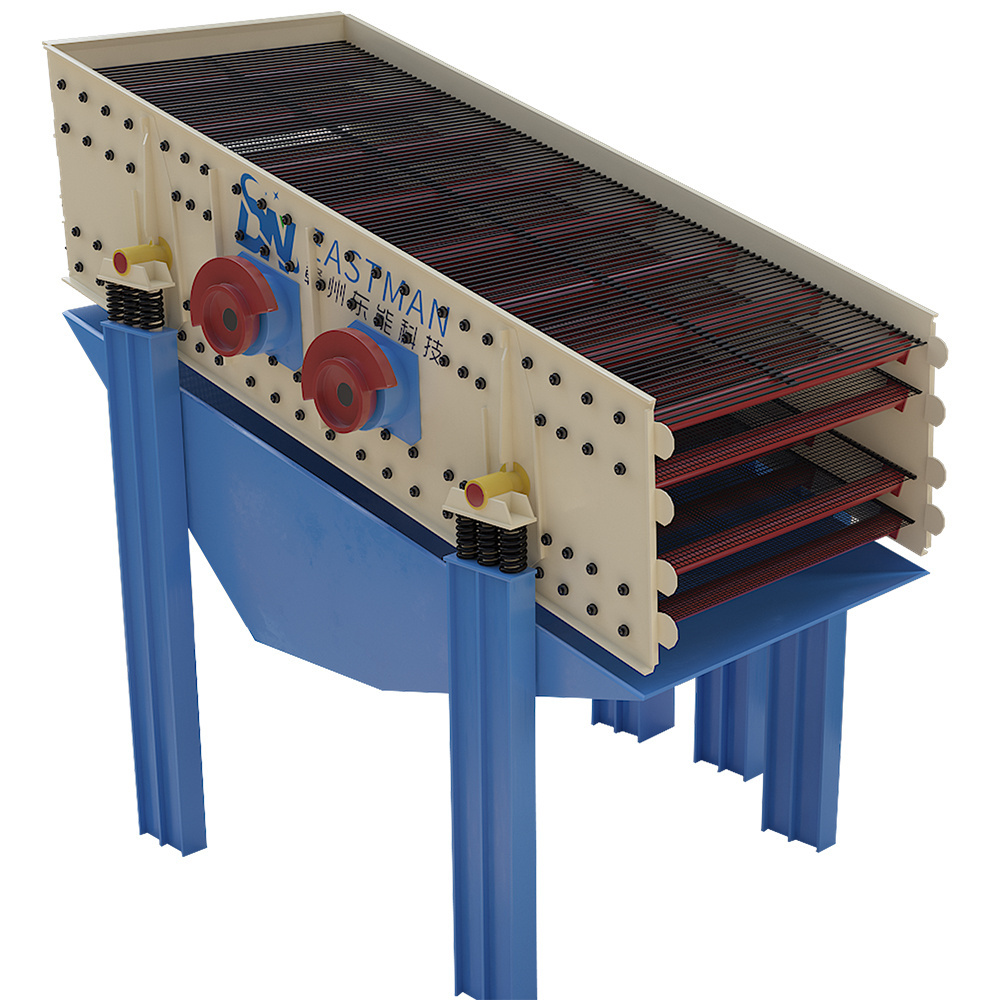

Product introduction:
Circular vibrating screen do a circular motion, is a kind of multilayers, efficient type vibrating screen. Specifical design for the stone quarry screen, also for coal, mineral processing, building materials, electric power and chemical sectors classification used for products.
Application Field:
Quarry, crawler sand, dry mortar, mechanism sand, power plant desulfurization, quartz sand, etc.
Suitable Material:
Pebble, granite, basalt, iron ore, limestone, calcite, quartz and diabase.
Principle of Operation:
Motor make the exciter eccentric block to produce high speed rotating through V-belt. Operation of the eccentric block to produce big centrifugal force, excited circular motion amplitude sieve boxes do a circularmotion. The materials on the sieve box have the impulse in the screen surface inclination and produce a continuous casting movement. Materials and screen surface meet, little than sieve particles through the sieve, and realize the classification.
Performance characteristics:
1. The material screen drip line is long, and has many screening specifications.
2. The eccentricblock as an exciting force, strong exciting force.
3. Sieve beams and sieve box connected by high strength bolts, no welding.
4. Sieve machine has the advantages of simple structure and convenient repair.
5. The small amplitude, high frequency, high dip structure, so this machine is of high efficiency, maximum, long life, low power consumption, low noise.
Two kinds of vibrating screen sieve :
manganese steel wire, polyurethane.
Jiangxi shicheng Mine Machinery Factory
was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda, Mozambique, Angola, Southeast Asia, South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Workshop
Our Customers
Our succeful cases
Zimbabwe cone crusher production line site
Malaysian impact crusher production line
Democratic Republic of the Congo customer's production line
Single-Cylinder Hydraulic Cone Crusher
100% Response Rate
Compound Cone Crusher
100% Response Rate
Jaw Crusher
100% Response Rate
Impact Crusher
100% Response Rate
VSI Sand Maker
100% Response Rate
Mobile Crushing Plant
100% Response Rate
●
Pre-sales service:
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●
Sales service:
Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●
After-sales service:
To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●
Lifelong service:
One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●
What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
●
What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●
What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●
Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
