Quick Details
-
Brand Name:
-
TKFM
-
Size:
-
2" to 28''
-
Body:
-
cast iron/ ductile iron
-
Pressure:
-
1.0/1.6 Mpa
-
Connection:
-
wafer
-
Type:
-
dual plate, Metal Check Valves
-
Stem:
-
stainless steel
-
Disc:
-
ss304/ss316/aluminum bronze
-
Spring:
-
stainless steel
-
Rubber Gasket:
-
EPDM/NBR
-
Working Temperature:
-
-15℃ to +93℃
Quick Details
-
Port Size:
-
DN50-DN700
-
Place of Origin:
-
Liaoning, China
-
Model Number:
-
DH71X-10/16
-
Brand Name:
-
TKFM
-
Size:
-
2" to 28''
-
Body:
-
cast iron/ ductile iron
-
Pressure:
-
1.0/1.6 Mpa
-
Connection:
-
wafer
-
Type:
-
dual plate, Metal Check Valves
-
Stem:
-
stainless steel
-
Disc:
-
ss304/ss316/aluminum bronze
-
Spring:
-
stainless steel
-
Rubber Gasket:
-
EPDM/NBR
-
Working Temperature:
-
-15℃ to +93℃
Products Show
Product Description

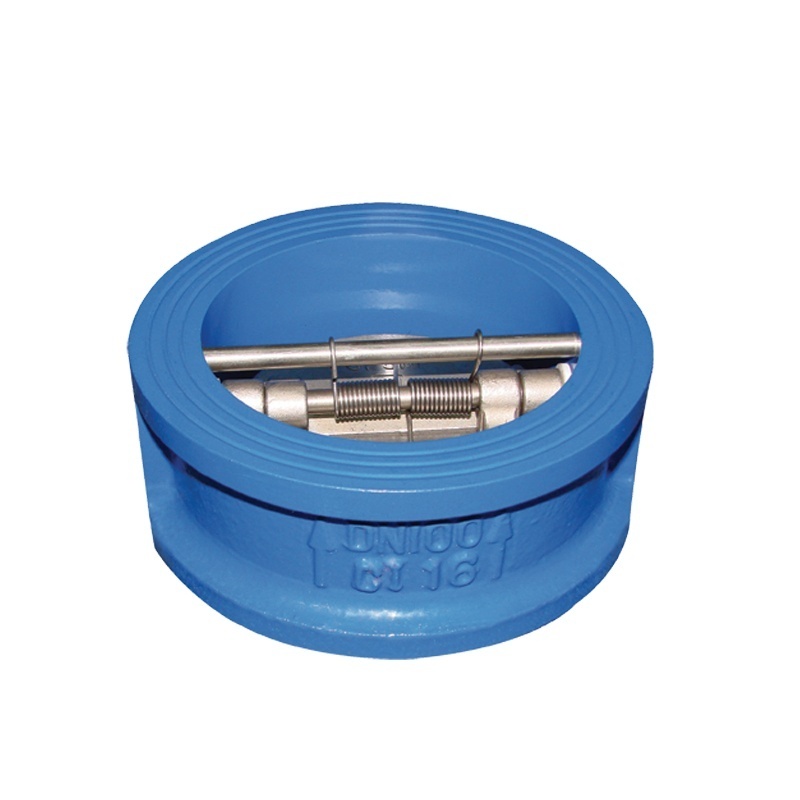

Wafer type dual plate butterfly check valve adopts an advanced foreign structure design and is an energy-saving product conforming to the world standard. It is good at the check performance, safe, reliable, small in the flowing resistance and mainly suitable for petroleum, chemical, food, pharmacy. light & textile, paper-making, water supply and drainage, refinery and energy etc. systems, used as an one-way valve.
|
Body material
|
|
Valve plate
|
|
Shaft
|
Rubber block
|
|
|
Spring
|
|||
|
Material name
|
Code
|
material name
|
1
|
Material name
|
Material name
|
code
|
℃
|
Material name
|
|||
|
Cast iron
|
Z
|
Black cast iron ball plating
|
2
|
Stainless steel
|
EPDM
|
x3
|
-46 ~ 121
|
Stianless steel
|
|||
|
Ductile iron
|
Q
|
Aluminum bronze
|
3
|
|
Neoprene
|
x4
|
-29 ~ 99
|
|
|||
|
Carbon steel
|
C
|
ZG1Cr1BNi9Ti Stainless steel
|
4
|
|
NBR
|
x5
|
-23 ~ 82
|
|
|||
|
Stainless steel
|
P
|
CF8M stainless steel
|
5
|
|
Viton
|
x6
|
-23 ~ 150
|
|
|||
|
|
|
CF8 stainless steel
|
6
|
|
|
|
|
|
|||
|
DN
|
|
50(2'') ~ 700(28'')
|
50(2'') ~450(18'')
|
mm(inch)
|
|||
|
PN
|
|
1.0
|
1.6
|
Mpa
|
|||
|
Test pressure
|
Case
|
1.5
|
2.4
|
Mpa
|
|||
|
|
Seal
|
1.1
|
1.76
|
Mpa
|
|||
|
Suitable temperature
|
|
-15℃ ~ 150℃
|
|
|
|||
|
Suitable media
|
|
water, sewage, air, steam, food, medicines, oils, acids
|
|
|
|||
