Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Brand Name:
-
CentroSouth
-
Place of Origin:
-
Guangdong, China
-
Model:
-
CS-C03
-
Dimensions:
-
219mm(L), 125mm(W), 31mm(H), 179mm(H of unfolded)
-
Power input:
-
DC-12V 1A
-
Type of SIM:
-
Micro SIM card
-
WAN&LAN Ports:
-
1 WAN/LAN + 3LAN
-
Indicator LED:
-
Power, WiFi, WAN, LAN, 4G, SYS
-
Number of antennas:
-
4
-
Number of users:
-
up to 32
-
Interface:
-
4 LAN /1 WAN
-
Chipset:
-
ASR1803S
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
CPE
-
Brand Name:
-
CentroSouth
-
Place of Origin:
-
Guangdong, China
-
Model:
-
CS-C03
-
Dimensions:
-
219mm(L), 125mm(W), 31mm(H), 179mm(H of unfolded)
-
Power input:
-
DC-12V 1A
-
Type of SIM:
-
Micro SIM card
-
WAN&LAN Ports:
-
1 WAN/LAN + 3LAN
-
Indicator LED:
-
Power, WiFi, WAN, LAN, 4G, SYS
-
Number of antennas:
-
4
-
Number of users:
-
up to 32
-
Interface:
-
4 LAN /1 WAN
-
Chipset:
-
ASR1803S
Feature
4G High Speed Router with Multi Features

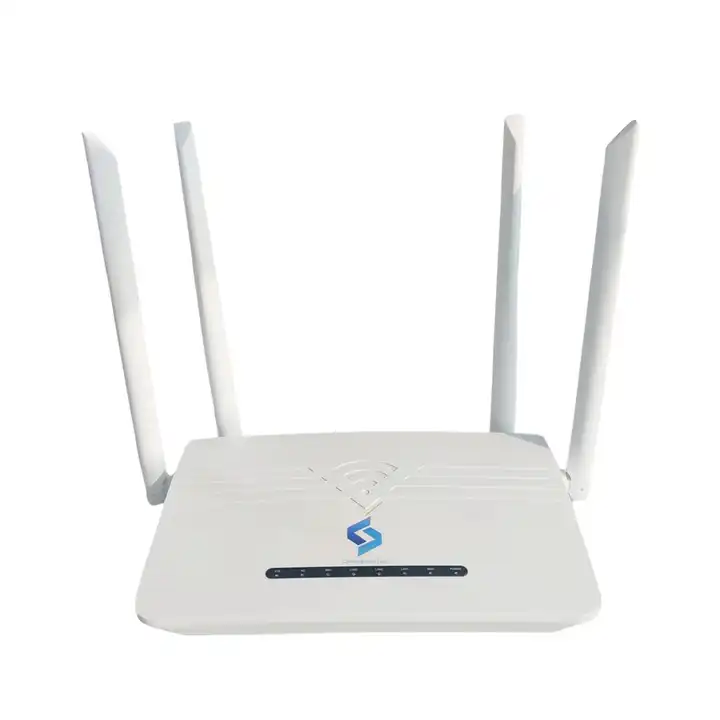

CS-C03 4G CPE LTE ROUTER
Plug-and-play Wi-Fi has never been so easy! Just insert a MICRO-SIM card or plug in the network cable , to get connected without the hassle of broadband!
High Quality Chipset
Come with the industry's advanced 4G module, the signal is more stable and covers more frequency bands. Let you enjoy WiFi
anywhere.
High-Speed Network
Blazing-Fast Internet with High Gain Antenna
Four external high gain antennas achieve strong signal and powerful performance.
It can increase wireless signal and expand coverage to effectively solve the problem of multiple walls and long distance.
Connect up to 32 devices
Capable of connecting up to 32 Wi-Fi devices, CS-C03 CPE router allows you to share internet with your friends and family, and
enjoy your time with them. It also lets you use your phone, tablet and other Wi-Fi devices at the same time.
Specification
|
Model
|
CS-C03
|
|
Dimensions
|
219mm(L), 125mm(W), 31mm(H), 179mm(H of unfolded)
|
|
Power
|
DC 12V / 1A
|
|
Type of SIM
|
MICRO SIM card
|
|
WAN&LAN Ports
|
1 WAN + 3 LAN
|
|
Indicator LED
|
Power, Online, WiFi, LAN, WAN
|
|
Number of antennas
|
4
|
|
Number of users
|
up to 32
|
Frequency band
Supported frequency band：
FDD LTE: B1/B3/B5/B8 (
Optional
B7, B20, B28 )
TDD LTE: B38/B39/B40/B41
WCDMA: B1/B5/B8
Diversity reception frequency band:
FDD LTE: B1/B3/B5/B8
Wireless transmit power:
FDD LTE: 23dbm ± 2dbm
TDD LTE:
23dbm ± 2dbm
TD SCDMA:
23dbm ± 2dbm
WCDMA:
23dbm ± 2dbm
WiFi:
Frequency Band: Support 2.4GHz
Standards And Protocols: Support 802.11b/g/n 2*2
Transmission Rate: 300Mbps
Encryption Type: WPA-PSK/WPA2-PSK (default)
Rate:
FDD LTE: Cat4 130Mbps(DL) & 35Mbps(UL)
TDD LTE:
Cat4 130Mbps(DL) & 35Mbps(UL)
WCDMA: 21Mbps(DL) & 5.76Mbps(UL)
