Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
SHR-PT501HLV4025HZIR730E-AT-LRF
-
Thermal camera sensor:
-
Cooled MWIR
-
Thermal camera resolution:
-
640x512
-
Thermal camera lens:
-
36~800mm, 22x optical zoom
-
Spectrum range:
-
3.7~4.8um
-
Day camera sensor:
-
16.5-1060mmmm, 64X optical zoom lens
-
Clear aperture:
-
≥100mm
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Motion Detection
-
Function:
-
PAN-TILT, Waterproof / Weatherproof, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Foshvision
-
Model Number:
-
SHR-PT501HLV4025HZIR730E-AT-LRF
-
Thermal camera sensor:
-
Cooled MWIR
-
Thermal camera resolution:
-
640x512
-
Thermal camera lens:
-
36~800mm, 22x optical zoom
-
Spectrum range:
-
3.7~4.8um
-
Day camera sensor:
-
16.5-1060mmmm, 64X optical zoom lens
-
Clear aperture:
-
≥100mm
Product Description

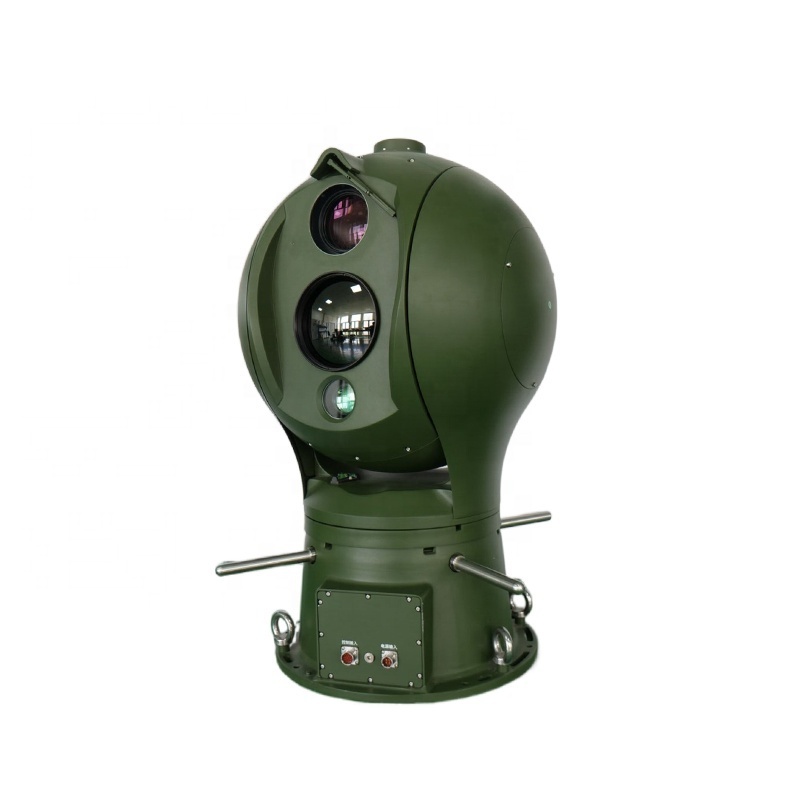

Multi-sensor Long Range Day/Thermal EO System
This EO system is a night vision product with independent intellectual property rights. It integrates an infrared thermal imager and a color camera. The device has two working modes: day mode and night mode. Daytime mode uses visible light lens for imaging, and night mode uses thermal imaging camera for imaging, which can realize long-distance continuous day and night observation, dual-spectrum imaging is clear, and it can work around the clock.
Using thermal imager imaging night vision technology, it has the characteristics of clear imaging, good concealment, and not limited by light sources. The effective combination of camera and thermal imager can realize continuous monitoring day and night.
This product also adopts a number of unique key technologies in materials and processing. The shell is made of high-strength aluminum alloy and stainless steel, and it is specially reinforced and sealed. It can be widely used in night, harsh environments, long distances, and large areas. Covert real-time monitoring occasions.
Features
* Using continuous zoom infrared thermal imaging technology, it has a strong ability to penetrate fog and haze, and has a long
detection distance, which can search for targets in a wide range
* Day and night 2 million low-light color cameras, combined with thermal imaging for detailed observation, can realize
continuous monitoring day and night
* Auto-focus technology, which can achieve fast focus through multiple focus methods and trigger methods
detection distance, which can search for targets in a wide range
* Day and night 2 million low-light color cameras, combined with thermal imaging for detailed observation, can realize
continuous monitoring day and night
* Auto-focus technology, which can achieve fast focus through multiple focus methods and trigger methods
Features
* The front-end equipment control software can realize the online upgrade function through the network, which greatly
facilitates the later maintenance
* The turntable can return to the user's self-set zero position or the position when the power is off after re-powering and
self-testing, and supports remote restart function
* The universal variable speed turntable realizes all-round monitoring without blind angle and high-precision positioning
* Professionally designed shell, beautiful, light, strong, high temperature resistant, corrosion resistant, waterproof, acid
rain proof
* The whole machine has low power consumption, less heat generation and stable working performance.
facilitates the later maintenance
* The turntable can return to the user's self-set zero position or the position when the power is off after re-powering and
self-testing, and supports remote restart function
* The universal variable speed turntable realizes all-round monitoring without blind angle and high-precision positioning
* Professionally designed shell, beautiful, light, strong, high temperature resistant, corrosion resistant, waterproof, acid
rain proof
* The whole machine has low power consumption, less heat generation and stable working performance.
Specification
|
Working distance
|
|
|
|
|||
|
Tracking
|
3-5km（Drome size 30cm*30cm）
|
|
|
|||
|
Visible light
|
8000～10000m recognize human
|
|
|
|||
|
Thermal imaging
|
Target
|
Human(1.8m×0.5m)
|
Car(2.3m×2.3m)
|
|||
|
|
Detect
|
16660m
|
20940m
|
|||
|
|
Recognize
|
7970m
|
13780m
|
|||
|
|
Identify
|
4660m
|
9270m
|
|||
|
HD visible light camera
|
|
|
|
|||
|
Lens
|
16.5-1060mmmm, 64X optical zoom lens
|
|
|
|||
|
Clear aperture
|
≥100mm
|
|
|
|||
|
FOV
|
0.42°～26.5°
|
|
|
|||
|
Aperture
|
Auto
|
|
|
|||
|
Lens control
|
Electric Zoom/Electric Focus/Auto Focus
|
|
|
|||
|
Optical fog penetration
|
Support
|
|
|
|||
|
Lens preset
|
Support
|
|
|
|||
|
Focal length return
|
Support
|
|
|
|||
|
Wiper
|
Manual
|
|
|
|||
|
Focus
|
Auto/manual，Zoom trigger
|
|
|
|||
|
Detector type
|
1/1.8" Progressive Scan CMOS
|
|
|
|||
|
Pixel
|
2.1MP
|
|
|
|||
|
Color mode
|
Integrated ICR double filter day and night switching
|
|
|
|||
|
Camera control
|
Automatic gain control, automatic white balance, automatic backlight compensation, support manual and automatic day and night
mode switching |
|
|
|||
|
Electronic fog penetration
|
On/off (optional)
|
|
|
|||
|
Noise reduction
|
3D digital noise reduction
|
|
|
|||
|
Encode
|
H.264/H.265/MJPEG
|
|
|
|||
|
Video resolution
|
1920x1080, support three streams
|
|
|
|||
|
Frame rate
|
50Hz:25fps(1920×1080)
60Hz:30fps(1920×1080) |
|
|
|||
|
Image adjustment
|
Brightness, Contrast, Saturation
|
|
|
|||
|
Network Protocol
|
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP
|
|
|
|||
|
Cooled thermal camera
|
|
|
|
|||
|
Focal length
|
36～800mm, 22× Optical zoom
|
|
|
|||
|
FOV
|
0.7°×0.6°~15.2°×12.2°
|
|
|
|||
|
F value
|
F 4.0
|
|
|
|||
|
Camera control
|
Motorized zoom, motorized focus, autofocus (10m~infinity), clear in all temperature ranges
|
|
|
|||
|
Detector type
|
Cooled MWIR
|
|
|
|||
|
Effective Pixels
|
640×512
|
|
|
|||
|
Spectral range
|
3.7~4.8μm
|
|
|
|||
|
Temperature sensitivity
|
≤25mK@F1.0,300K
|
|
|
|||
|
Image correction
|
Manual/Automatic/Background Correction/Pot Lid Correction
|
|
|
|||
|
Video frame rate
|
Up to 50Hz, continuously adjustable from 1 to 50Hz
|
|
|
|||
|
Image Processing
|
Digital Image Detail Enhancement (IDE), no less than 8 kinds of false colors
|
|
|
|||
|
Encoding format
|
H.264/H.265
|
|
|
|||
|
Encoding resolution
|
Support three streams, optional resolution
|
|
|
|||
|
Laser rangefinder
|
|
|
|
|||
|
Wave length
|
1570nm, Class1/1M
|
|
|
|||
|
Measuring distance
|
25km max;
15km vehicle (2.3mx4.6m); 6700m Human(1.8mx0.5m); 3700m Drone(0.3mx0.3m) |
|
|
|||
|
Precision
|
≤3m
|
|
|
|||
|
Accuracy rate
|
98%
|
|
|
|||
|
Tracking module
|
|
|
|
|||
|
Tracking algorithm
|
Centroid/Template Matching Tracking Algorithm
|
|
|
|||
|
Target size
|
Minimum Target Contrast: 5%
Minimum: 6 × 6 pixel Maximum: 200 × 100 pixels |
|
|
|||
|
Tracking speed
|
4 pixel/frame
|
|
|
|||
|
Housing
|
|
|
|
|||
|
Material
|
Super Strength Investment Casting Aluminum Alloy
|
|
|
|||
|
Structure
|
Integrated three-window design
|
|
|
|||
|
Window
|
Microcrystalline ultra-clear optical glass
|
|
|
|||
|
Temperature control
|
Built-in temperature adjustment, support heating, cooling, dehumidification, defrosting functions
|
|
|
|||
|
Turntable
|
|
|
|
|||
|
Angle
|
Horizontal 360° continuous rotation; Pitch -45°~+90°
|
|
|
|||
|
Speed
|
Horizontal: 0.01°~100°/s, Tilt: 0.01°~100°/s
|
|
|
|||
|
Preset position
|
2048, Support lens preset position
|
|
|
|||
|
Preset Accuracy
|
±0.05°
|
|
|
|||
|
Cruise
|
2 lines，64 presets/line
|
|
|
|||
|
Angle return
|
Support
|
|
|
|||
|
Auto scan
|
1
|
|
|
|||
|
Interface
|
|
|
|
|||
|
Power
|
DC30V+DC48V, Equipped with wide input AC90~305V to DC30V/DC48V waterproof power supply
|
|
|
|||
|
Network
|
1×10Base-T/100Base-TX, RJ45
|
|
|
|||
|
Environment
|
|
|
|
|||
|
Operating temperature
|
-40℃~+60℃
|
|
|
|||
|
storage temperature
|
-45℃~+65℃
|
|
|
|||
|
Wind resistance level
|
Not lower than grade 12
|
|
|
|||
|
Degree of protection
|
IP66
|
|
|
|||
|
Physics
|
|
|
|
|||
|
Power
|
90VAC~305VAC to DC48V Wide Width Waterproof Power Supply
|
|
|
|||
|
Power consumption
|
≤500W
|
|
|
|||
|
Total Weight
|
≤130kg
|
|
|
|||
|
Size
|
748×748×945（L×W×H）mm
|
|
|
|||
|
Installation method
|
Basement installation outdoor
|
|
|
|||
|
Note: The marked monitoring distance is the distance under the condition that the visibility is above 20km and the atmospheric attenuation coefficient is ≤0.15km-1. Affected by different attenuation coefficients, the working distance will be different.
|
|
|
|
|||
