Quick Details
-
Dimension (L*W*H):
-
700*500*235 mm
-
Weight:
-
85±1Kg
-
Protection Class:
-
IP20
-
Product Name:
-

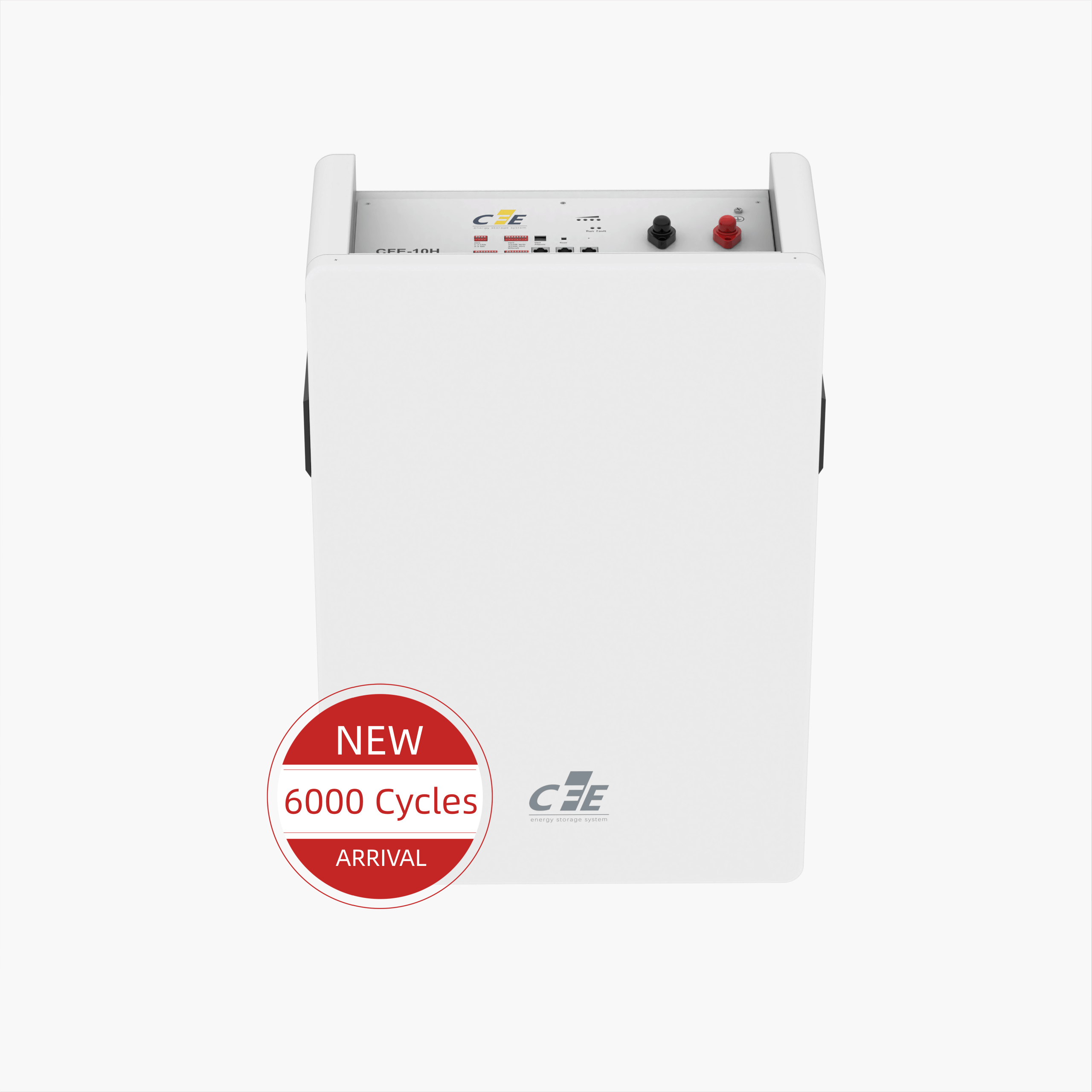

Lithium Iron Phosphate Lifepo4 Battery
-
Nominal Voltage:
-
51.2Volts
-
Nominal Capacity:
-
220Ah
-
Warranty:
-
5 Years
-
Cycle life:
-
6000 Cycles
-
Type:
-
Li-Ion / Lithium / Lifepo4
-
Total Energy:
-
10.24 kWh
-
Application:
-
Home Appliances
-
Parallel or Series Support:
-
8 Parallel or Series
Quick Details
-
Model Number:
-
CFE-10H
-
Brand Name:
-
CFE
-
Place of Origin:
-
Shaanxi, China
-
Dimension (L*W*H):
-
700*500*235 mm
-
Weight:
-
85±1Kg
-
Protection Class:
-
IP20
-
Product Name:
-
Lithium Iron Phosphate Lifepo4 Battery
-
Nominal Voltage:
-
51.2Volts
-
Nominal Capacity:
-
220Ah
-
Warranty:
-
5 Years
-
Cycle life:
-
6000 Cycles
-
Type:
-
Li-Ion / Lithium / Lifepo4
-
Total Energy:
-
10.24 kWh
-
Application:
-
Home Appliances
-
Parallel or Series Support:
-
8 Parallel or Series
Product Description
Specification
|
Model
|
CFE-10H
|
|
|
Total Energy
|
10.24 kWh
|
|
|
Usable Energy(DC)
|
8.7 kWh
|
|
|
Max. Discharge Power
|
5 KW
|
|
|
Rated Capacity
|
200 Ah
|
|
|
Voltage
|
48~56 Vd.c
|
|
|
Nominal Voltage
|
51.2 Vd.c
|
|
|
Operating Condition
|
Indoor
|
|
|
Charge Operating Temperature
|
0~45℃
|
|
|
Discharge Operating Temperature
|
-10~55℃
|
|
|
Dimensions (W*D*H)
|
700*500*235 mm
|
|
|
Weight
|
85±1 kg
|
|
|
IP Rating
|
IP 20
|
|
|
Protective Class
|
I
|
|
|
Parallel or Series Support
|
8 Parallel or Series
|
|
|
Relative Humidity (RH)
|
0~95% (No condensed water)
|
|
|
Cooling Type
|
Ambient cooling
|
|
|
Case Material
|
Metal
|
|
|
Color
|
White
|
|
|
Installation
|
Wall Mounting
|
|
|
Warranty
|
5 Years
|
|
|
Communication
|
CAN/RS485
|
|
|
Protection Mode
|
Triple Hardware Protection
|
|
|
Battery Protection |
Over-Current/ Over-Voltage/ Short
Circuit/ Under-Voltage/ Over Temperature |
|
|
Safety Certificate
|
UN3480
|
|
|
Testing Conditions Based on Temperature 25℃ at The Beginning of Life.
|
|
|
|
Total Energy/Usable Energy Measured Under Specific Conditions From 0.2C CC/CV.
|
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
