Quick Details
-
Voltage:
-
120V
-
Working frequency range:
-
50 ~ 5000Hz
-
working frequency:
-
1500-2000Hz
-
Power consumption:
-
108mw / m ~ 1032mw / m
-
Static capacitance:
-
6nf/m (20°C, RH< 80%)
-
Luminous brightness:
-
30cd/m2 ~ 126 cd/m2
-
Light Color:
-
red, yellow, blue, fluorescent green, orange, purple, pink, blue green
-
Longevity:
-
normal temperature and humidity, about 8000 hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Working voltage range:
-
20 ~ 220V
-
Product Name:
-
ultra-thin led neon light
-
Voltage:
-
120V
-
Working frequency range:
-
50 ~ 5000Hz
-
working frequency:
-
1500-2000Hz
-
Power consumption:
-
108mw / m ~ 1032mw / m
-
Static capacitance:
-
6nf/m (20°C, RH< 80%)
-
Luminous brightness:
-
30cd/m2 ~ 126 cd/m2
-
Light Color:
-
red, yellow, blue, fluorescent green, orange, purple, pink, blue green
-
Longevity:
-
normal temperature and humidity, about 8000 hours
EL cold light parameters
1. Working voltage range: 20 ~ 220V working voltage: 120V
2. Working frequency range: 50 ~ 5000Hz working frequency: 1500-2000Hz
3. Static capacitance: 6nf/m (20°C, RH< 80%)
4. Luminous brightness: voltage: 120V, frequency: 200Hz ~ 2000Hz: 30cd/m2 ~ 126 cd/m2
5. Power consumption: voltage: 120V, frequency: 200Hz ~ 2000Hz: 108mw / m ~ 1032mw / m
6. Service life: voltage: 100V, frequency: 400Hz, normal temperature and humidity, about 8000 hours
7. Continuous working temperature / relative humidity: -10 ° C ~ +60 ° C; RH < 90%
8. Storage temperature / relative humidity: -10 ° C ~ +60 ° C; RH < 65%
9. Main line specifications: Φ0.9, Φ1.3, Φ2.3, Φ3.2, Φ4.3, Φ5.0
10. Main line color: red, yellow, blue, fluorescent green, orange, purple, pink, blue green, white cold light application industry range

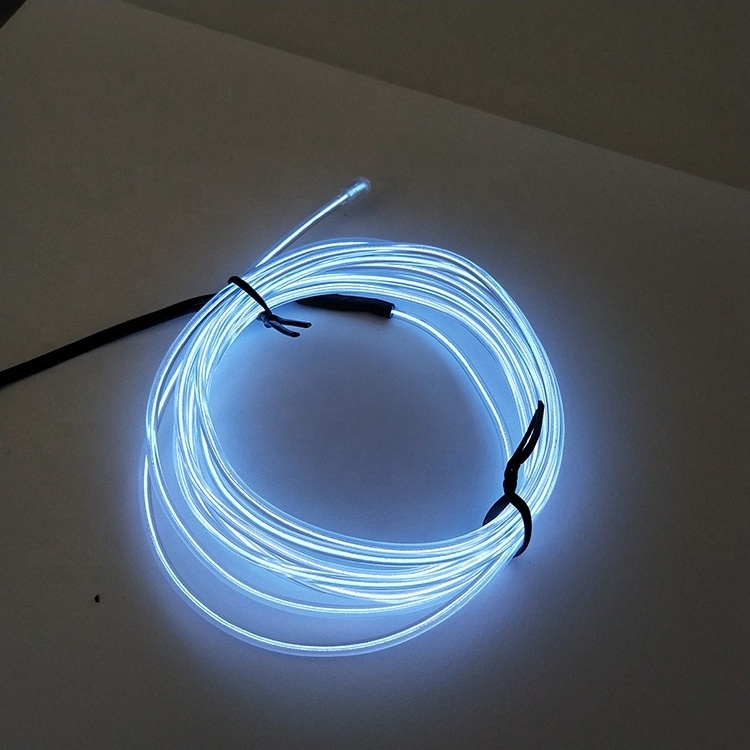

EL wire is a thin copper wire coated in a phosphor which glows a 360 degree unbroken light when an alternating current is applied to it.
It is bendable as a thin neon tube which makes it ideal for flexible decoration.
Light your life and have fun!
Cold light source, fine and uniform, bright colors, rich colors
Flexible and water resistant, can be easily bent, curved, cut, knotted,available for indoor and outdoor lighting
The circuit control dynamic flashing
Maintenance free, easy installation
Features:
Flexible and water resistant, can be bent into any shape and cut into any length
Can offer 360 degrees of illumination
Energy saving, long life time
Voltage: 20V-220V, 50-5000Hz
Wire diameter: approx 2.3mm
EL light length:10m
Working temperature: - 10°C to 60°C, RH< 90%
Life time: about 8000 hours
9 Colors: red, yellow, blue, green, orange, purple, pink, transparent blue , white
Main application of EL wire:
1 car seat cushion, seat cover, steering wheel cover, peach wooden decoration decoration, car decoration, car interior, instrument box pendulum pendant.
2 transparent computer chassis internal and external decoration, cable winding, mouse, keyboard.
3 the Christmas tree decorations, Christmas CARDS, Christmas gifts, holiday gifts.
4 electronic flash toys, flash blue glasses, pet belt, backpacks, hats, handbags, clothing, shoes, bicycles decorations, mobile phone to lightning belt, luminous hand ring (collar) and some other luminous toy craft gift!
5 ads make font, product hook painting, decorative curtain, curtain decoration,
building internal and external lighting decoration floor landscape, stage and bar.
Note:
Dear customer, you should buy a LED Driver and a power supply to power the el wire.
Hoping for your kindly understanding!
