Quick Details
-
Walkie Talkie Type:
-
HF HAM RADIO
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G106
-
Model Number:
-
G106
-
Dimensions:
-
120*40*135 (mm)
-
Frequency Range:
-
0.5MHz to 30MHz 88~108MHz (WFM)
-
Product Name:
-
XIEGU G1M HF Transceiver
-
Power Supply:
-
DC 9.0V~15.0V
-
Operating mode:
-
SSB/CW/AM
-
Frequency Stability:
-
±2.5ppm (30 minutes after powering on)
-
Audio output power:
-
0.3w
-
Function:
-
Connect to PC for control, supports data connection mode
Quick Details
-
Talk Range:
-
60km, 0-60KM
-
Terminal style:
-
Vehicle Mouted
-
Storage Channel:
-
11
-
Walkie Talkie Type:
-
HF HAM RADIO
-
Place of Origin:
-
China
-
Brand Name:
-
XIEGU G106
-
Model Number:
-
G106
-
Dimensions:
-
120*40*135 (mm)
-
Frequency Range:
-
0.5MHz to 30MHz 88~108MHz (WFM)
-
Product Name:
-
XIEGU G1M HF Transceiver
-
Power Supply:
-
DC 9.0V~15.0V
-
Operating mode:
-
SSB/CW/AM
-
Frequency Stability:
-
±2.5ppm (30 minutes after powering on)
-
Audio output power:
-
0.3w
-
Function:
-
Connect to PC for control, supports data connection mode
|
Discount
|
Click on chat to ask for the latest special price.
Chat >
|
|
|
|
||||
|
Service
|
We are the only official shop of xiegu on Alibaba.
Become our distributor，We can provide HD photo without watermark for you to promote，Samples available，Pls contact us if you need it. |
|
|
|
||||
|
All products sold are backed by an after-sales guarantee and technical support.
|
|
|
|
|
||||

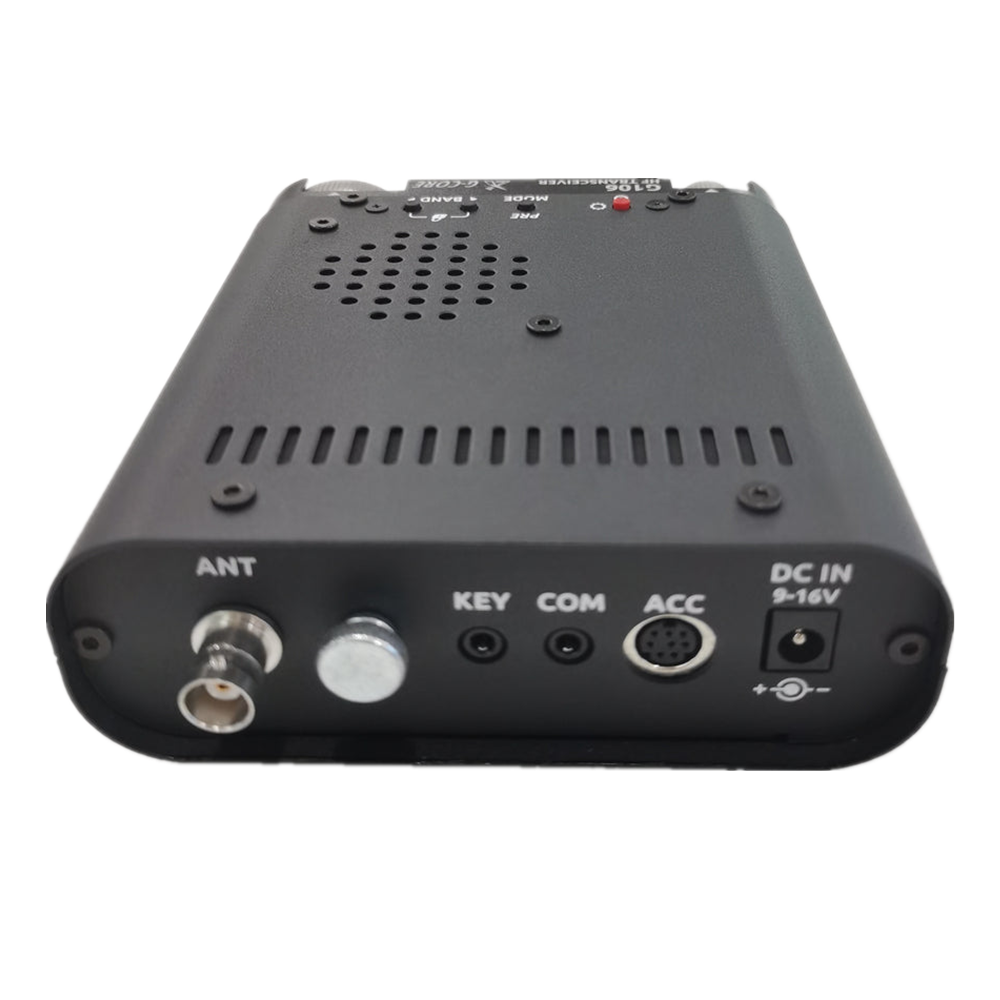

Xiegu G106 Hf Transceiver
G106 is a 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling
and can deliver superior performance. The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz) receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19 digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.
Basic Features:
➣ High-performance SDR core circuit
➣ Compact and robust structure
➣ Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
➣ WFM broadcast receiving
➣ Shortwave full-range continuous receiving
➣ Amateur data communication available
➣ Computer online control available
Package Included:
- 1 x G106 HF Transceiver
- 1 x Mic
- 1 x Power Cable
- 1 x User Manual
➣ Compact and robust structure
➣ Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
➣ WFM broadcast receiving
➣ Shortwave full-range continuous receiving
➣ Amateur data communication available
➣ Computer online control available
Package Included:
- 1 x G106 HF Transceiver
- 1 x Mic
- 1 x Power Cable
- 1 x User Manual
We offer a 12-month manufacturer's warranty on all products in the xiegu range purchased in our shop. If you have any after-sales technical queries about our products, please contact our customer service staff (note: please do not change the system firmware yourself after purchase)
|
G1M Specifications
|
|
|
|
Transmitting Power
|
5W @13.8V DC
|
|
|
Receiving Frequency
|
0.5~30MHz
|
|
|
Transmitting Frequency
|
3.5MHz, 7MHz, 14MHz, 21MHz
|
|
|
Modes
|
SSB (USB, LSB), CW, AM Radio
|
|
|
Receive Sensitivity
|
0.35uV @12dB SINAD
|
|
|
Receiving Dynamics
|
90dB
|
|
|
Spurious Emission Suppression
|
≥45dB
|
|
|
Frequency Stability
|
±2.5ppm (30 minutes after powering on)
|
|
|
Audio Output Power
|
0.5W
|
|
|
Working Voltage
|
12~15V DC
|
|
|
Size
|
97*40*155 (mm)
|
|
For More Product Details, Click Send Inquiry>>>
Xiegu has been in the HF transceiver field for more than ten years. In the past, Xiegu has brought a variety of different products to ham lovers，also gives more choices and more possibilities to those who love the HF transceiver field. If you are interested in our products , You can bookmark and share with your friends, let more people involved.
Operating Voltage of Xiegu G1M is 9.0V-15.0V DC
, w
e provide Xiegu BK300,
Xiegu BK300(DC 12V-16V) can power your
radio transceiver
and other electronic devices i
n outdoor
