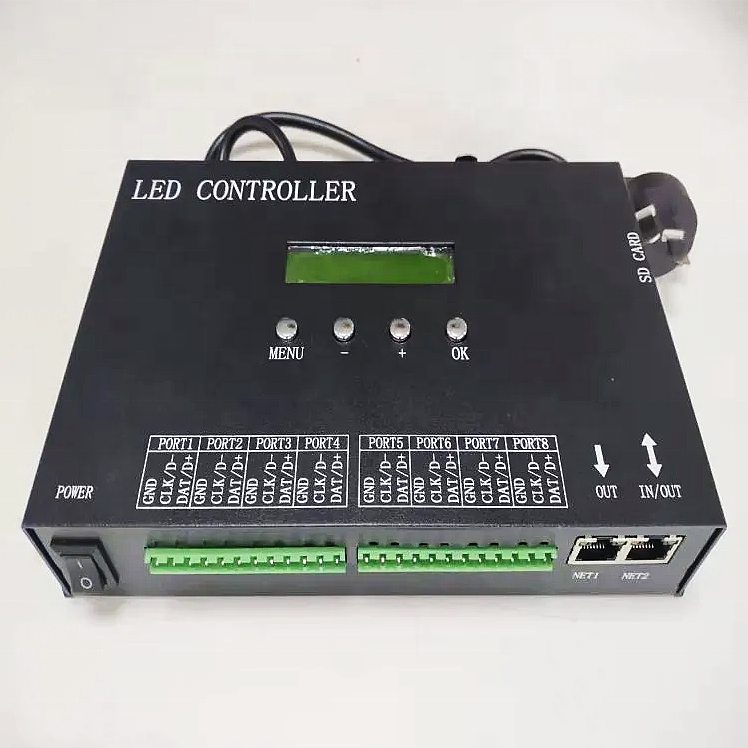

H803TC Master controller WS2811 IC DMX Pixel led lighting control for club

H803TC Master controller WS2811 IC DMX Pixel led lighting control for club

FOB Reference Price: Get Latest Price

≥2 Pieces

US $230

≥6 Pieces

US $216

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Luminous Efficacy(lm/w):: 22

Product Weight（kg）:: 1.5

Place of Origin:: Guangdong, China

Brand Name:: SCOTT

Connection Mode:: DMX,TTL

Voltage:: 220V

Quick Details

Warranty(Year):: 3-Year

Type:: Remote Control

Max. Load Power:: 3W

Luminous Efficacy(lm/w):: 22

Product Weight（kg）:: 1.5

Place of Origin:: Guangdong, China

Brand Name:: SCOTT

Connection Mode:: DMX,TTL

Voltage:: 220V

Product Description

Item H803TC Master controller	Parameters
Voltage	AC110V-220V input, 1W-3W
Drive Pixels	Support 170000 pixel
SD	With SD card, SD card supports FAT32, FAT16 format, maximum capacity is 64G bytes, stores up to 64 DAT files.
Power plug	US plug / EU plug/ UK plug/ AU plug
Warranty(Year)	3 years

1. Introduction

H803TC works online or offline and switch automatically.
When it’s offline, it reads data from SD card to control slave controllers and synchronized with AC power supply.
When it's online, port1 transmit data that port2 received from "LED Studio Software". When software stops sending data, H803TC
can detect it automatically, and read data from SD card and send it instantly.
Auxiliary slave controller is H801RA and H801RC, auxiliary online software is “LED Studio software”, auxiliary offline software
is “LED Build Software”.

2.Performance

(1).Works online or offline and switches automatically.
(2).Drives maximum 170000 pixels, 2 output ports, connects maximum 255 slave controllers.
(3).When it’s offline, multiple master controllers synchronize with AC power supply, achieves controlling hundreds of thousands to
millions pixels.
(4).SD card supports FAT32, FAT16 format. The maximum capacity is 64G bytes.
(5).H803TC can connect to DMX console, supports encryption on number of power-on times.
(6).Supports single file playback and all files playback. Playing speed adjustable range is 1-100 frames per second, brightness
adjustable range is 0-15.
(7).Transmit signal based on Ethernet protocol. The nominal transmission distance is 100 meters and it can reach to more than 25
kilometers by using a photoelectric converter.
(8).Electrical isolation and high anti-interference ability.
(9).Flexible engineering configuration, each slave controller can control different lamps.

3.Features

1) support DMX512(1990) international standard protocol.

2) More control functions: it can control various drive IC types

3) High speed photoelectric to ensure control system safety.

4) Control system realize more than 256 scales per color

5) Project setting agility: realize adjust the brightness and speed separately.

6) Customized software: easy to setup the lighting project system.

7) System failure self-repair function.

4. Supported Driver Chips

LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Note: H803TC supports more than the chips listed above(some chips have the same sequence diagram, for example: UCS512, WS2821 and DMX512 have the same protocol, H803TC supports them all).

5. Network and optical fiber connection diagram

(1). Work with SD card(offline)

Step1. Connect lights, slave controller and H803TC like the following image.(I didn't draw power supply) you can only use NET1.

Step2 . Download and Install LED Build Software

Step3 . Program in LED Build Software

Step4. Configure H803TC with 4 buttons

Set DMX Address for H803TC This function is used when H803TC is connected to DMX console

(2)Work with PC(online)

Step1. Connect lights, slave controllers and H803TC like the following image.

Step2. Download and Install LED Studio Software Step3. NET2 Setting

In online mode, NET2 transmits data received from PC to NET1. Network Port 2 connects the computer through the network cable, and Network Port 1 connects the decentralized control. Network Port 1 forwards the data received by Network Port 2, which can realize the computer control. Step4. Allocate an IP address for H803TC Step5. Program in LED Studio Software

1. Place Pixels 2. Slave Setting 3. Multi-Net Setting 4. Make Effects

Control DMX512 chip lights

H803TC can control H801RC, H802RA two kinds of slave controllers(they all support DMX512 protocol), but by using H803TC + H802RA, you can set DMX address for DMX512 chips.
