- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HY
-
Filtration Grade:
-
Hepa Filter
-
Efficiency:
-
F5-H13
Quick Details
-
Weight (KG):
-
0.1
-
Core Components:
-
None
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HY
-
Filtration Grade:
-
Hepa Filter
-
Efficiency:
-
F5-H13

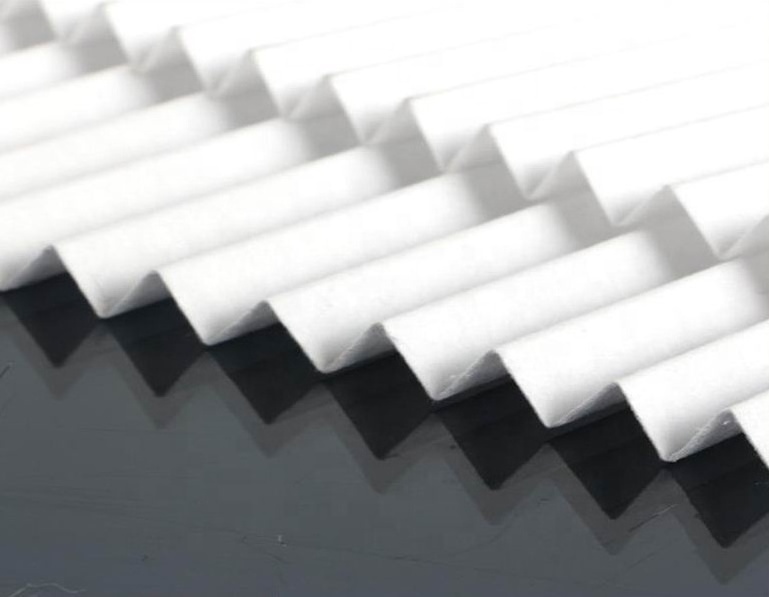

HEPA filter media with Low pressure drop
PRODUCT INTRODUCE:
Low resistance laminated filter media is composed of low resistance melt-blown filter media, electrostatic pre-filter media and non-woven basic fabric. The material feature is very low pressure drop and high dust-loading capacity, Increased adsorption for dust particles and improved filtering effect can satisfy the strict market demand for low-power filter material. The product can be widely used in air purification filters, automotive air conditioning and fresh air systems, etc.
PRODUCT PERFORMANCE:
1. Low resistance and high dust loading material, can increase life of filters
2. Can reduce the filter energy consumption in the filtration system
3. At the condition of reaching the same efficiency, the resistance of the material decrease by 20%
4. Own the advantage of great dust capacity and extending the life-span of filter
PRODUCT TECHNICAL SPECIFICATIONS:
| Type |
Basic weight g/m2 |
Thickness mm |
Pressure Drop Pa |
Efficiency % |
Remark |
| HY-3S-65L | 83 | 0.5 | 5 | 65 | Low-resistance Type |
| HY-3S-80L | 83 | 0.5 | 6 | 80 | |
| HY-3S-90L | 83 | 0.5 | 9 | 90 | |
| HY-3S-95L | 85 | 0.5 | 11 | 95 | |
| HY-3S-98L | 85 | 0.5 | 16 | 98 | |
| HY-3S-99.5L | 85 | 0.5 | 22 | 99.5 | |
| HY-3S-99.97L | 95 | 0.65 | 36 | 99.97 | |
| HY-G65L | 125 | 1.5 | 5 | 65 | Low-resistance and high dust loading type |
| HY-3S-G90L | 153 | 1.5 | 10 | 90 | |
| HY-3S-G95L | 153 | 0.5 | 12 | 95 | |
| HY-3S-G99L | 153 | 1.5 | 20 | 99 | |
| Test Method: TSI 8130 NaCl, 0.3μm@32L/min, 100cm2 | |||||
Scan below QR code to add me as Wechat friend:
OUR AIR FILTER MEDIAS:
Q1. What is your delivery date ?
A1: The delivery date is 20-35 days after packing designs approved, and receipt of payment.
Q2. What is your first order payment terms ?
A2: 40% deposit in advance and 60% balance before shipment.
Q3. Can you send us
samp
les?
A3: Yes, free samples can be sent out, you just need to pay the express fee.
(1). You can provide your a/c like DHL or FEDEX or TNT
(2). You can call your courier to pick up at our office.
(3). You can pay us the express charge by western union or T/T.
Q4. Where is your factory located?How can I visit it?
A4: Our factory is based in Handan City, Hebei province, Near to Beijing.
You can fly to Handan air port, we will pick you up.
