Quick Details
-
Model Number:
-
Oil-immersed Transformer
-
Coil Number:
-
Three
-
Usage:
-
Electronic, Power/ Electric Power Transmission
-
Product name:
-
ZTELEC 25kva 13.8kv 13.2kv Single Phase Oil immersed Transformer
-
Type:
-
Oil transformer
-
Frequency:
-
50/60Hz
-
Material:
-
Copper Winding
-
Certification:
-
ISO CCC
-
Standard:
-
ANSI
-
Rated capacity:
-
1500kva
-
Output Voltage:
-
220V 380V 400V 415V
-
Advantage:
-
Provide OEM
-
Transformer type:
-
Oil-type Transformer
-
Rated Primary Voltage:
-
35
-
Rated Secondary Voltage:
-
13
Quick Details
-
Phase:
-
Three
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZTELEC
-
Model Number:
-
Oil-immersed Transformer
-
Coil Number:
-
Three
-
Usage:
-
Electronic, Power/ Electric Power Transmission
-
Product name:
-
ZTELEC 25kva 13.8kv 13.2kv Single Phase Oil immersed Transformer
-
Type:
-
Oil transformer
-
Frequency:
-
50/60Hz
-
Material:
-
Copper Winding
-
Certification:
-
ISO CCC
-
Standard:
-
ANSI
-
Rated capacity:
-
1500kva
-
Output Voltage:
-
220V 380V 400V 415V
-
Advantage:
-
Provide OEM
-
Transformer type:
-
Oil-type Transformer
-
Rated Primary Voltage:
-
35
-
Rated Secondary Voltage:
-
13

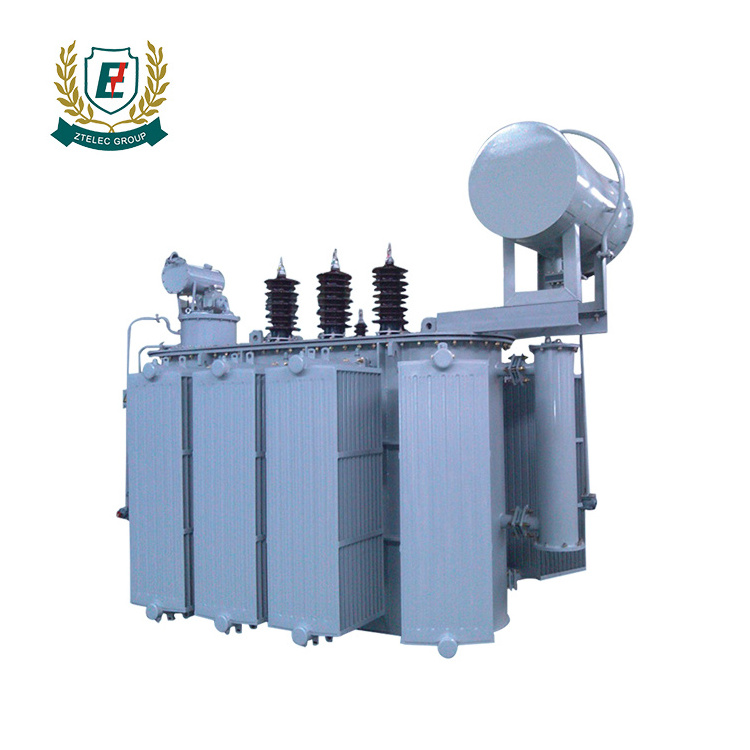

China Manufacturer distribution three phase electric power high voltage transformer 6300kva oil immersed
Products Range
Our company can produce a variety of oil-immersed transformers with a voltage rating of 35kV or less and a capacity of 12500kVA or less. The variety includes S9, S11 series and S13, S15 series of energy-saving products. The product is widely used in industrial and mining enterprises, agriculture, civil construction and other distribution sites as well as oil, chemical industry, more oil, more chemical substances in the places.
Executive Standard:
GB1094 Electrical Transformer
IEC60076 Electrical Transformer
JB/T6451 Specification and Technical Requirements for Oil-immersed Power Transformers
JB/T10088 6kV~500kV Power Transformer Sound Level
GB/T7595 Quality of Transformer Oils in Service
Features of China Manufacturer S11 500kva 2000 kva distribution three phase electric power high voltage transformer 5000kva oil immersed
1.The body adopts a new type of insulation structure to improve the ability to withstand short-circuits;
2.Spiral coil with longitudinal oil passage has a better internal heat dissipation;
3.High efficiency, low loss, can save a lot of power and operating costs;
4.The surface of the corrugated oil tank is coated with three anti-paint after oil removal, rust removal, and phosphating. It is suitable to use in metallurgy, petrochemical, and mining environments.
| 10KV Grade Winding Core Oil-immersed Transformer S13-M·RL-30~6100/10 | |||||||||
|
Rated Capacity |
Voltage Combination |
Connec -tion Method |
Loss(W) |
No Load Current (%) |
Impend -ence Voltage (%) |
Weight | Dimension(mm) | ||
| (KVA) | HV(KV) | LV(KV) | No Load | Load (75℃) | (Kg) | (L×W×H) | |||
| 30 | 11 10.5 10 6 | 0.4 | Yyn0 Dyn11 | 80 | 630/600 | 0.30 | 4 | 300 | 800×620×1100 |
| 50 | 100 | 910/870 | 0.24 | 380 | 840×640×1150 | ||||
| 80 | 130 | 1090/1040 | 0.22 | 480 | 980×670×1210 | ||||
| 100 | 150 | 1310/1250 | 0.21 | 540 | 1040×700×1230 | ||||
| 125 | 170 | 1580/1500 | 0.20 | 590 | 910×800×1260 | ||||
| 160 | 200 | 1890/1800 | 0.19 | 720 | 1110×970×1290 | ||||
| 200 | 240 | 2310/2200 | 0.18 | 860 | 1180×1020×1310 | ||||
| 250 | 290 | 2730/2600 | 0.17 | 970 | 1190×1030×1300 | ||||
| 315 | 340 | 3200/3050 | 0.16 | 1170 | 1290×1120×1360 | ||||
| 400 | 410 | 3830/3650 | 0.16 | 1320 | 1280×1110×1410 | ||||
| 500 | 480 | 4520/4300 | 0.16 | 1490 | 1400×1210×1420 | ||||
| 630 | 570 | 6200 | 0.15 | 4.5 | 1910 | 1440×1250×1490 | |||
| 800 | 700 | 7500 | 0.15 | 2160 | 1540×1340×1520 | ||||
| 1000 | 830 | 10300 | 0.14 | 2550 | 1600×1420×1630 | ||||
| 1250 | 970 | 12400 | 0.13 | 3160 | 1680×1460×1730 | ||||
| 1600 | 1170 | 14500 | 0.12 | 3850 | 1780×1540×1810 | ||||
