Dimensions:
2465 x 1134 x 30/35mm
Weight: 34.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Weight: 34.5kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-
UE
-
Model Number:
-
UE 144Cells 560-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279 * 1134 *30mm
-
Solar Cells:
-
N-type Mono TOPCon
-
Dimensions:
-
2279 * 1134 *30mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Packaging:
-
36pcs/box, 180pcs/20'GP, 720pcs/40'HQ
-
Keyword:
-
Black Monocrystalin Solar Panel
-
OEM Order:
-
Accept Customized Solar Panel
-
Application:
-
Home Commercial Solar System
-
Certificate:
-
CE / CB / TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.39%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
UE
-
Model Number:
-
UE 144Cells 560-590W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2279 * 1134 *30mm
-
Solar Cells:
-
N-type Mono TOPCon
-
Dimensions:
-
2279 * 1134 *30mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Packaging:
-
36pcs/box, 180pcs/20'GP, 720pcs/40'HQ
-
Keyword:
-
Black Monocrystalin Solar Panel
-
OEM Order:
-
Accept Customized Solar Panel
-
Application:
-
Home Commercial Solar System
-
Certificate:
-
CE / CB / TUV

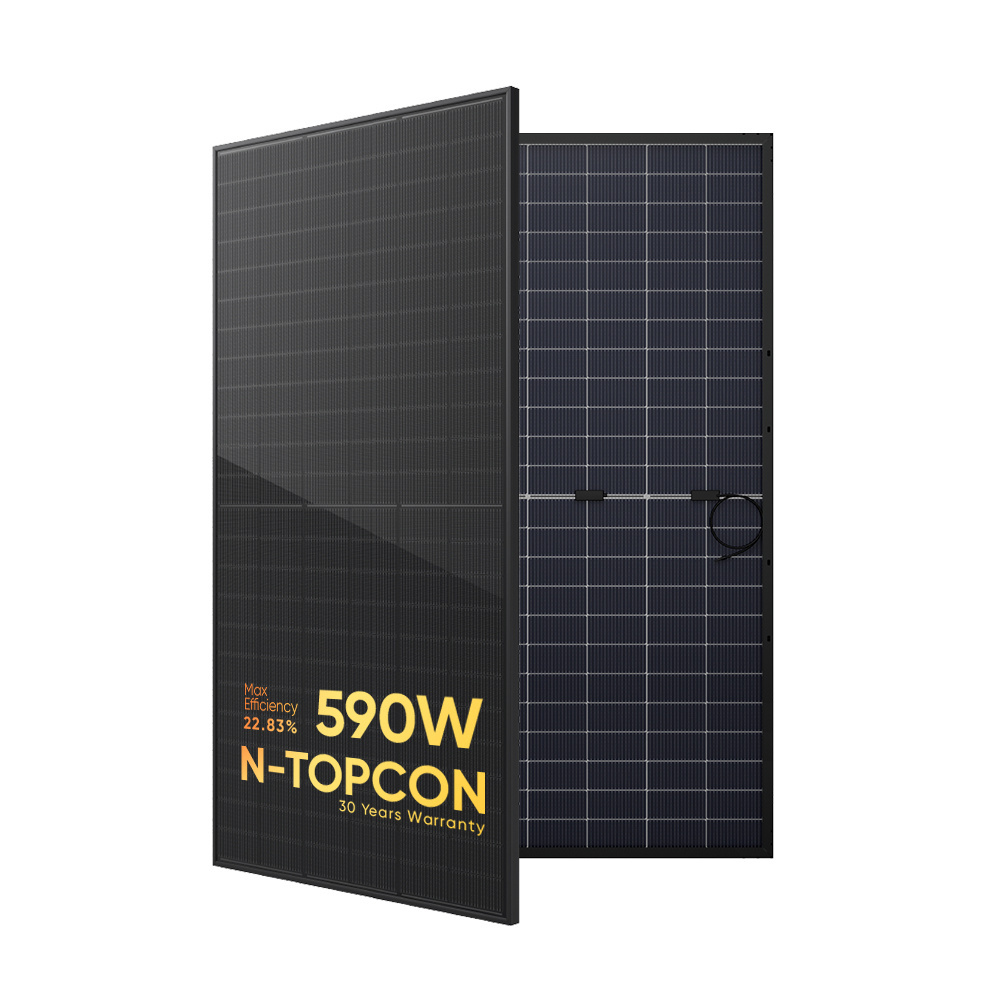

Solar Panel Detail
UE solar panel adopt TOPCON ,HJT, PERC technology, producing solar panel power range from 400W - 800W, include regular half cell, full black, bifacial double glass, with CE, TUV, CSA , UL , CEC certificate to ensure the quality is guaranteed.
UE Europe and US warehouses stock direct delivery, short delivery time and good price !
|
Module Type: UE585M-72H
|
555
|
560
|
565
|
570
|
575
|
580
|
585
|
|
Maximum power (Pmax/W)
|
555
|
560
|
565
|
570
|
575
|
580
|
585
|
|
Open Circuit Voltage (Voc/V)
|
51.00
|
51.14
|
51.28
|
51.41
|
51.55
|
51.79
|
52.03
|
|
Short Circuit Current (Isc/A)
|
13.94
|
14.01
|
14.08
|
14.15
|
14.22
|
14.29
|
14.36
|
|
Voltage at Maximum power (Vmpp/V)
|
41.95
|
42.11
|
42.26
|
42.41
|
42.56
|
42.71
|
42.86
|
|
Current at Maximum Power (Imp/A)
|
13.23
|
13.30
|
13.37
|
13.44
|
13.51
|
13.58
|
13.65
|
|
MODULE EFFICIENCY (%)
|
21.48
|
21.67
|
21.86
|
22.06
|
22.25
|
22.44
|
22.64
|
Products Series
605 - 630 Watt Solar Panel
Cells Layout:
156 Half Cells(6×26)
555 - 580 Watt Solar Panel
Cells Layout:
144 Half Cells(6×24)
Dimensions:
2279 x 1134 x 30mm
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Weight: 31.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Cells Layout:
132 Half Cells(6×22)
Dimensions:
2279 x 1134 x 30/35mm
Weight: 28.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
Weight: 28.5kg
Modules per box: 36pcs
Modules per 40' container: 792pcs
465 - 485 Watt Solar Panel
Cells Layout:
120 Half Cells(6×20)
Dimensions:
1910 x 1134 x 30/35mm
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
Weight: 26.0kg
Modules per box: 36pcs
Modules per 40' container: 864pcs
415 - 435 Watt Solar Panel
Cells Layout:
108 Half Cells(6×18)
Dimensions:
1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Weight: 23.5kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Certificates
UE as the leading factory of solar panel
has an ISO9001 quality control system to ensure the production quality of solar panels, and all of our models meet the
CE TUV CSA CEC
production certification standards and
covering all EU and US safety regulations.
United Energy Production Line
UE photovoltaic panel factory has more than 2GW / Year production capacity, the production line can produce Half-cut, All
Black，Bifacial， double glass solar panel with strict quality control procedures. We have building good business relation ship with 5000+ renewable energy clients from 100+ countries.
Black，Bifacial， double glass solar panel with strict quality control procedures. We have building good business relation ship with 5000+ renewable energy clients from 100+ countries.
United Energy Quality Control
UE team is committed to ensuring that every solar panel undergoes strict testing, including 3 EL tests, multiple visual inspections, power test and safety regulations, to ensure all PV
modules
are A-grade with 0-+5W positive power tolerance.
Packing & Delivery
In order to ensure the safety of transportation and that customers can receive 100% of the solar panel without problems, the UE team has developed strict pre-shipment testing, packaging specifications, and the use of customized cartons or wooden boxes to ensure the safe delivery of products.
United Energy Project Case
Would you like to visit UE solar projects?
UE team has completed installations in 150+ countries around the world, we can provide project location for you to visit the site.
UE team has completed installations in 150+ countries around the world, we can provide project location for you to visit the site.
Customer Feedback
What are UE's customers saying?
"Very friendly and honest seller. Will buy again!"
"finally had a chance settled it up to tested it outi can say its time to repeat order. i love the product quality."
What are UE 's customers saying?
“Hello Jason,good morning.Finally we got the 30KW hybrid solar system and 100KW on grid installed,now all working great.
Our boss is very happy with the result, and we will need your help create United Energy brand here in the US.
Thank you for all kind generosity and service you provide we would appreciate if you can send product pictures and technical details so we can start advertising here on our website.
”
Contact Infornation
UE - Solar Energy Solution Expert - Looking for Agents and Distributors
50% of the sales engineer has over 10 years of experience;
Well-trained for solar projects from the preliminary design to the completion of the final installation;
Developed hundreds of distributors from the ground up.
Just click here to leave your mail or phone and we will reach you within 12H.
FAQ
1, Where is your factory located?
United Energy's China manufacturing center in Hefei Anhui, and Wuxi Jiangsu. Vietnam factory in HCM city to convenient US customers without anti-dumping tax.
2, Are you a factory or a trading company?
We are solar panel factory with over 14 years
experience
, factory inspection is welcome anytime.
3，What solar panel technology are you currently adopting? Available power range?
We currently have PERC, HJT, TOPCON, and shingle technology, power range between 5W-800W
4, Do you have MOQ?
We do not have MOQ, small order is welcome to test our quality. Fully confident that you will love our quality and service.
5，What's the strength of your company?
1) We are the Top 10 manufacturers in the PV industry, guarantee that each solar panel receives 100% quality inspection, and corresponding test reports can be provided (EL, IV, Flash Test Report)
2) Owns a team of 30+ engineers who can help you design a complete system solution to help you maximize system efficiency.
