Quick Details
-
Power (kW):
-
11kw/16kw/13kw/19kw/23kw/28kw
-
Name:
-

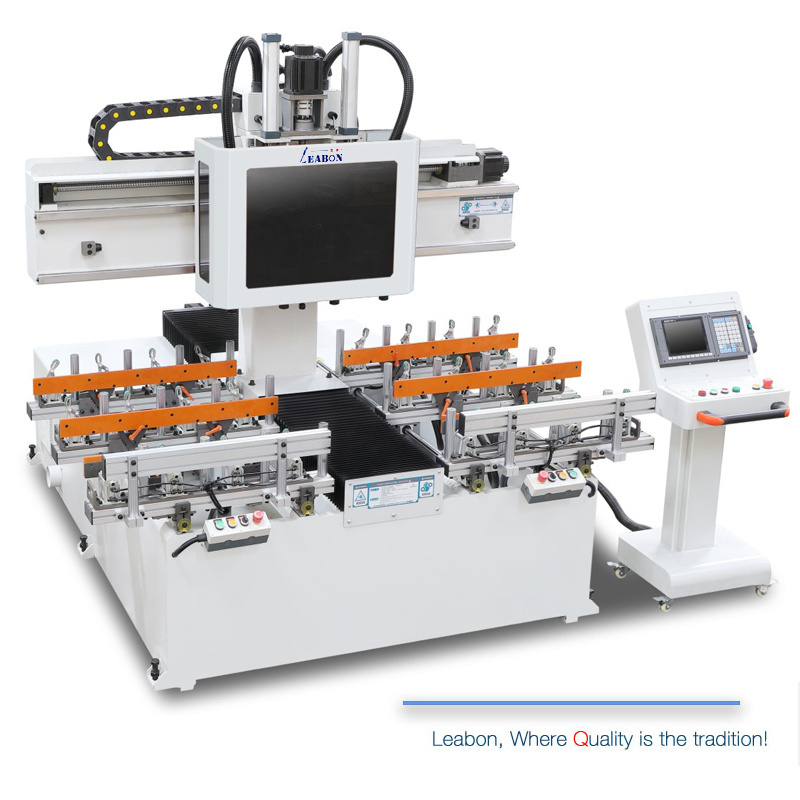

CNC Solid Wood Tongue And Groove Machine
-
Model:
-
JR-l5l5-4A
-
Spindle speed:
-
18000r/min
-
Return speed:
-
50m/min
-
Lubrication method:
-
Automatic lubrication
-
Machine size:
-
2700*2300*2200mm
-
Weight:
-
2300
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Leabon
-
Weight (KG):
-
2300 KG
-
Power (kW):
-
11kw/16kw/13kw/19kw/23kw/28kw
-
Name:
-
CNC Solid Wood Tongue And Groove Machine
-
Model:
-
JR-l5l5-4A
-
Spindle speed:
-
18000r/min
-
Return speed:
-
50m/min
-
Lubrication method:
-
Automatic lubrication
-
Machine size:
-
2700*2300*2200mm
-
Weight:
-
2300
Product Process
Advantages:
1.One-time clamping, multi-process processing, and one-time molding.
2.Various mortise and tenon processing/complex processing/modular programming/easy operation.
3.The CNC mortise and tenon machining center is powerful. Composite processing can provide multiple elements combined to form different types of modules.
4.Achieve a variety of mortise and tenon processing control. Modular programming directly provides simple and intuitive element combination forms.
5.With the integrated module processing trajectory programming function, you only need to enter the dimensions to complete product editing.
Specification
|
Model
|
JR-l5l5-4A
|
JR-l5l5-4B
|
JR-1515-3A
|
JR-1515-3B
|
|
Processing range
|
1500*150*200mm
|
1500*150*200mm
|
1500*150*200mm
|
1500*150*200mm
|
|
Spindle power
|
2.2kw/3.7kw*4pcs
|
2.2kw*4+3.7kw*4pcs
|
2.2kw/3.7kw*3pcs
|
2.2kw*3+3.7kw*3pcs
|
|
Spindle speed
|
18000r/min
|
18000r/min
|
18000r/min
|
18000r/min
|
|
Equipment power
|
13kw/19kw
|
28kw
|
11kw/16kw
|
23kw
|
|
Processing speed
|
1-15m/min
|
1-15m/min
|
1-15m/min
|
1-15m/min
|
|
Return speed
|
50m/min
|
50m/min
|
50m/min
|
50m/min
|
|
Lubrication method
|
Automatic lubrication
|
Automatic lubrication
|
Automatic lubrication
|
Automatic lubrication
|
|
Installation size
|
2700*2300*2200mm
|
2700*2300*2200mm
|
2700*2300*2200mm
|
2700*2300*2200mm
|
|
Weight
|
2300kg
|
2800kg
|
2100kg
|
2600kg
|
