Quick Details
-
Warranty:
-
10Years, 25 Years Output Power Guarantee
-
Brand Name:
-
ESG
-
Model Number:
-
mono200w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1580*808*50mm
-
Name:
-
solar panel 200w
-
Application:
-
solar energy system
-
Front Glass:
-
High Transmission
-
Frame color:
-
Color Silver
-
Junction Box:
-
IP65 Rated
-
Solar cell:
-
Monocrystalline
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO, ISO,CE
-
Connector:
-
Compatible Connector
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV
-
Panel Efficiency:
-
20
-
Warranty:
-
10Years, 25 Years Output Power Guarantee
-
Brand Name:
-
ESG
-
Model Number:
-
mono200w
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1580*808*50mm
-
Name:
-
solar panel 200w
-
Application:
-
solar energy system
-
Front Glass:
-
High Transmission
-
Frame color:
-
Color Silver
-
Junction Box:
-
IP65 Rated
-
Solar cell:
-
Monocrystalline
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO, ISO,CE
-
Connector:
-
Compatible Connector

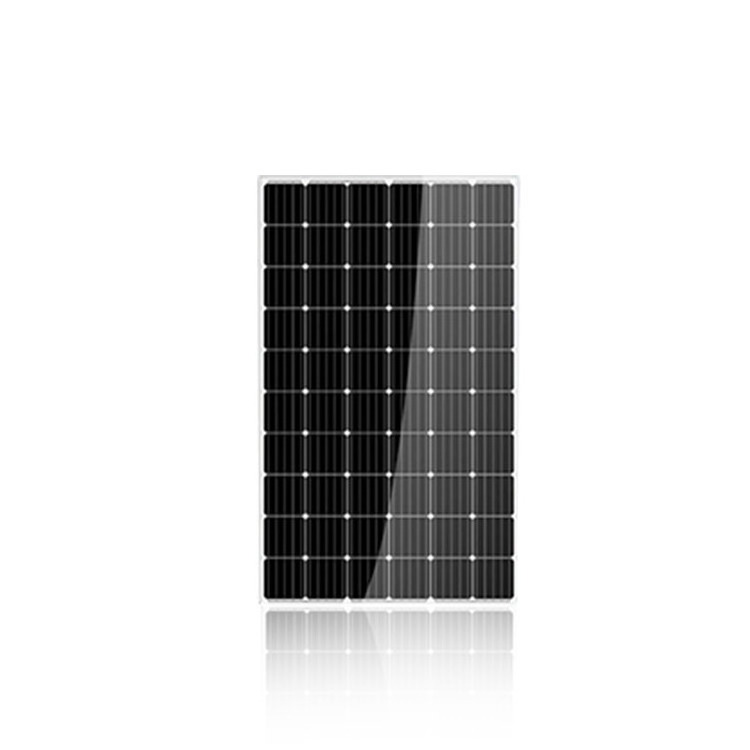

Mono 200 watt transparent with monocrystalline specifications solar panel
Products Description: Mono 200 watt transparent with monocrystalline specifications solar panel
High efficiency- Mono 200 watt transparent with monocrystalline specifications solar panel
High module conversion efficiency (up to 16.19%) , through innovative manufacturing technology.
Low-light performance- Mono 200 watt transparent with monocrystalline specifications solar panel
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
Severe Weather Resilience- Mono 200 watt transparent with monocrystalline specifications solar panel
Certified to withstand : wind load (2400 Pascal) and show load (5400 Pascal)
Durability against extreme environmental Conditions- Mono 200 watt transparent with monocrystalline specifications solar panel :
High salt mist and ammonia resistance certified by TUV NORD
Technology
Mono 200 watt transparent with monocrystalline specifications solar panel
|
ESG200 M |
|
|
Max-power: Pm(W) |
200W |
|
Max-power voltage: Vm(V) |
36.26V |
|
Max-power current: Im(A) |
2.52A |
|
Open-circuit voltage: Voc(V) |
43.2V |
|
Short-circuit current: Isc(A) |
6.07A |
|
Max-system voltage(VDC) |
1000V |
|
Operating temperature( ℃ ) |
-40 ℃ ~+85 ℃ |
|
Power tolerance |
0~ +6W |
|
Type of solar cell |
Monocrystalline |
|
Lay up of solar cell |
72(6*12)PCS |
|
Dimension of solar module |
1580*808*50mm |
|
Gross weight of solar module |
16.3Kg |
|
Front Cover |
Low-iron Tempered glass/ 3.2mm |
|
Frame |
Anodization aluminum |
|
Junction Box ( protection degree ) |
IP65 |
|
Hailstone Impact |
25mm at 23m/s |
|
Qty/CTN |
2PCS |
Features:
1.Solar panels: from 5W to 310W
2.Solar panel warranty: output power is not less than 90% within 10 years and more than 80% within 25 years.
3. Wholesale price A grade Mono solar panel 3000 watt solar modules have passed many certificates like TUV, CE, ROHS, ISO, IEC etc.
4. Cost of photovoltaic modules: We can get best prices by giving large orders to solar photovoltaic cells and raw material suppliers .
Flexible solar panel 150w
5. Solar cell technology: either Mono-Si or Poly-Si is available.
6. Solar panel efficiency: not less than 15%
7. Power torlerance of PV modules: ± 3%
8. Overall quality of Wholesale price A grade Mono solar panel 3000 watt soalr panels: Tidy joined, anodized corners and aluminum frames make Wholesale price A grade Mono solar panel 3000 watt photovoltaic modules more time consuming.
9. Back sheet: With excellent strength, wether resistance, UV resistance and moisture barrier properties, the backing sheet is used to protect solar cells of photovoltaic modules.
10. Reasonable mumbers of all temperature coefficients.
Application: Mono 200 watt transparent with monocrystalline specifications solar panel so
1.water pumping
2. water purification Flexible solar panel system 150ws
3. remote village lighting
4. solar home Flexible solar panel system 150w
5. street and camp lights
6. traffic signals
7. medical facilities in remote areas
8. microwave/radio repeater stations
9. battery charging
Producing Line Mono 200 watt transparent with monocrystalline specifications solar panel
A grade MONO solar panel on promotion 150w solar panel
